3D Printing With PETG? What You Need to Know
Among the many materials available for 3D printing, PETG stands out. It combines durability with printing ease. Many are curious as to whether or not Bambu Labs printers reliably print PETG. This manual provides detailed responses to that inquiry. It details the requirements, preferences, settings, problems, and solutions for running PETG on Bambu Labs equipment.
Overview of PETG and Its Variants
Polyethylene terephthalate glycol-modified, or PETG for short. This PET variant keeps the material's strength and durability while making printing easier. Compared to high-temperature ABS, PETG has a lower warping threshold. Compared to PLA, it is both stronger and more resistant to impact. When it comes to practical components, many makers use PETG.
If you're looking for PETG choices, Bambu Labs has you covered. Their printing behavior and characteristics are different. Translucent PETG, PETG-CF (Carbon Fiber), and high-flow PETG are among these. Before deciding on a filament for a project, users should familiarize themselves with the distinctions.
Can All Bambu Labs Printers Print PETG?
To put it simply, yes. You may print regular PETG and PETG-HF with outstanding results using any of the current 3D printers from Bambu Labs.
Standard PETG on Bambu Labs Printers
The original PETG formulation is known as standard PETG. You can get Translucent PETG from Bambu Labs in a variety of colors, which means you can make prints with a lot of visual depth and a beautiful finish. Aiming for a harmonious blend of toughness, impact resistance, and a sleek appearance, translucent PETG achieves just that.
When printed properly, regular PETG has robust physical characteristics. It is well-suited for use in functional parts that must endure stress due to its excellent tensile strength and impact resistance. The maker has the ability to modify the strength and translucency by adjusting the wall thickness and infill patterns.
Nevertheless, it is imperative that PETG filaments, even translucent ones, remain dry at all times. Prints could become structurally flawed, have bubbles, or have a poor surface finish if filament moisture levels rise. To get clean extrusion and uniform layers, dry the filament before printing.
PETG-HF: High-Speed PETG
The acronym for "High Flow" is PETG-HF. Enhanced printing speed is the goal of this PETG variation. According to Bambu Labs, PETG-HF can print at a speed of up to 258 mm/s, which is quicker than regular PETG and equals the PLA default settings.
In contrast to many conventional PETG filaments, PETG-HF keeps its surface smoothness and strength even when spun at very high speeds. Compared to PLA, it is more impact-resistant and heat-resistant. As a result, it is well-suited for use in structural components, functional parts, and outdoor products where durability and speed are paramount.
All PETG varieties, including PETG-HF, require drying before use. Avoiding moisture problems like leaking, bubbles, or stringing is possible with proper filament drying. The RFID-enabled material is AMS and AMS-Lite compatible, and it loads most printing parameters automatically.
PETG-CF: Carbon Fiber Reinforced PETG
Product Features
- Less Clumping and Stringing
- Premium Print Surface
- Improved Mechanical Properties & High Flexibility
- Comes with Basic Reusable Spool
- Diameter: 1.75mm +/- 0.03mm
To improve the material's thermal stability, impact resistance, and stiffness, PETG-CF incorporates short carbon fibers into the PETG matrix. Drone frames, car components, and mechanical fittings are just a few examples of structural prints that would benefit greatly from its exceptional strength and dimensional stability.
The increased bending modulus of PETG-CF makes it more rigid when subjected to stress than regular PETG. Its impact strength and heat deflection temperature are both typically better. Because of these qualities, it is perfect for high-tech functional prints.
A wear-resistant hotend and a hardened steel nozzle are necessities for dependable PETG-CF printing. Carbon fibers are so abrasive that they swiftly degrade standard stainless steel nozzles. These toughened components are standard on high-end X1C, X1E, and H2D machines from Bambu Labs. It is possible to upgrade lower-tier machines to use this filament securely.
Practical Tips for Printing PETG on Bambu Labs Printers
Following the guidelines makes PETG printing on Bambu Lab machines a breeze. You can enhance quality and decrease typical PETG difficulties by following these guidelines.
1. The Drying of Filament Is Crucial
PETG soaks up water rapidly. There will be stringing, bubbles, and thin layers if the thread is wet. To get strong, smooth extrusion, dry PETG before printing.
2. Controlling Adhesion and Preparing the Build Plate
The construction plate adheres to PETG with ease. To prevent uneven adherence, clean the plate. To remove areas that are tough to work with, use a release layer.
3. Maintaining a Consistent Temperature for Perfect Outcomes
Compared to PLA, PETG requires hotter nozzle temperatures. Proper heating enhances layer bonding. Be careful not to overheat, as this will cause stringing.
4. Speed and Flow Control
PETG is most effectively printed at regulated speeds. Printing at a slower pace enhances both the surface quality and strength. Compared to regular PETG, PETG-HF allows for faster speeds.
5. Cutting and Removing Strings
PLA has fewer strings than PETG. Dry filament and proper retraction lessen this problem. A cleaner printout is possible with just a few tweaks.

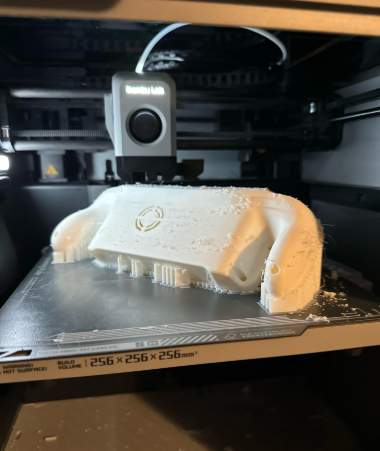

6. Hardware and Nozzle Factors to Consider
Nozzles designed for standard PETG will also function. Hardened steel nozzles are necessary for PETG-CF. This maintains uniform extrusion and protects against wear.
7. Making Final Adjustments with Test Prints
To begin, you can use the default profiles. Various environmental conditions have an impact on PETG. Before tackling big assignments, test prints are a great way to get the settings just right.
Choosing the Right Bambu Labs Printer for PETG
1. Bambu Lab A1 Mini
For smaller work areas or those just starting, the Bambu Lab A1 Mini is a great choice. When using the default settings in Bambu Studio, it correctly prints standard PETG and PETG-HF. Test models, tiny functional components, and brackets are perfect for this printer. Unless you replace the nozzle with hardened steel, PETG-CF is not a good choice because of its original hardware.
Price: $249–$299 USD

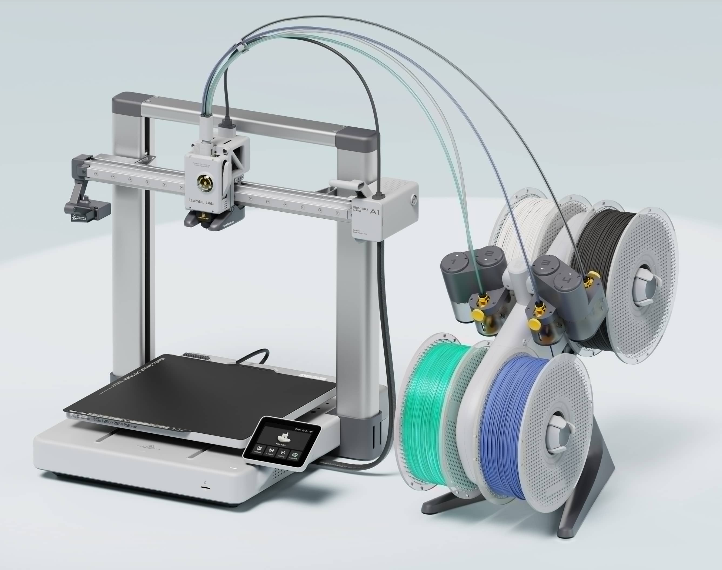

2. Bambu Lab A1
The Bambu Lab A1 offers more versatility and a bigger build space compared to the Mini. It works well with regular PETG and produces functional prints with strong layer bonding. When speed is of the essence without compromising quality, PETG-HF is the way to go. The use of hardened nozzle and extruder components is a must for printing PETG-CF.
Price: $349–$399 USD

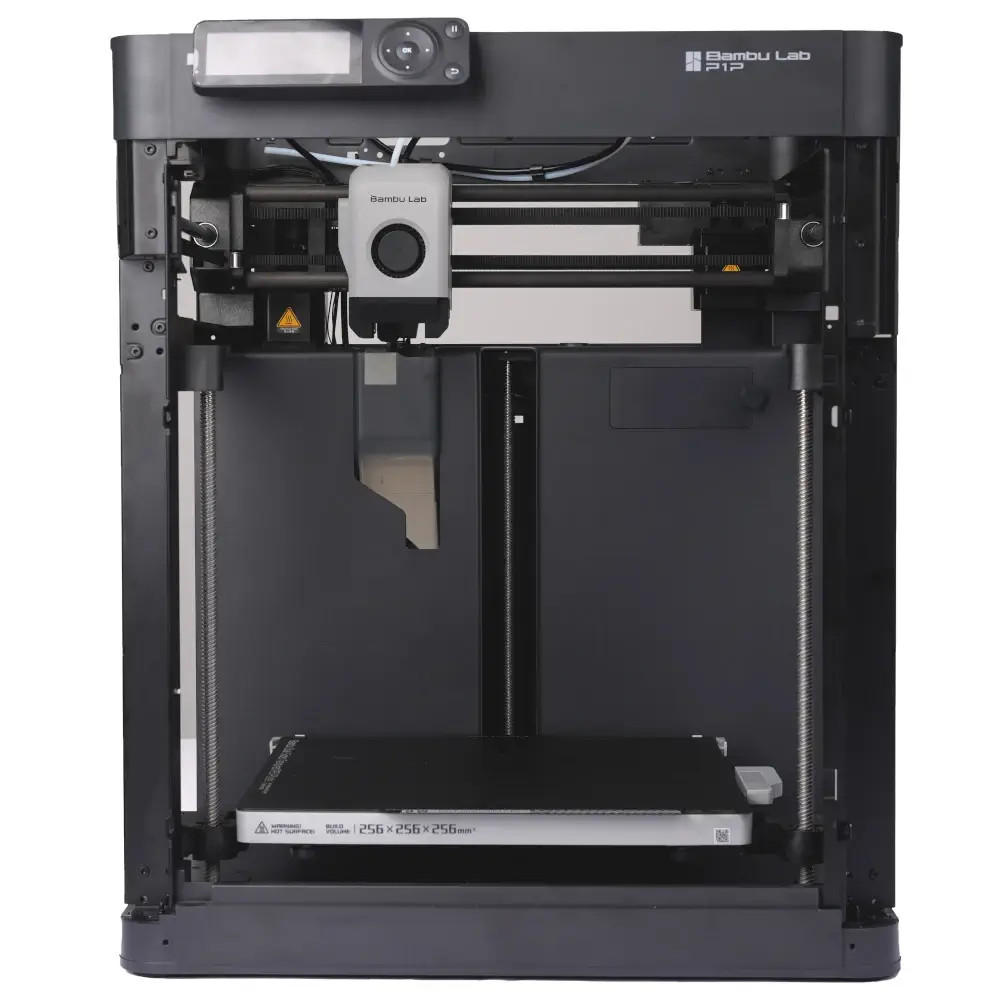

3. Bambu Lab P1P
If you utilize PETG and value speed and dependability, the Bambu Lab P1P is an excellent mid-range printer to consider. Its motion technology enables constant extrusion of PETG at a quicker rate. Parts made of regular PETG or PETG-HF have smooth surfaces and are sturdy. Hardened hardware upgrades are necessary for PETG-CF to prevent wear and tear from occurring too soon.
Price: $399–$699 USD

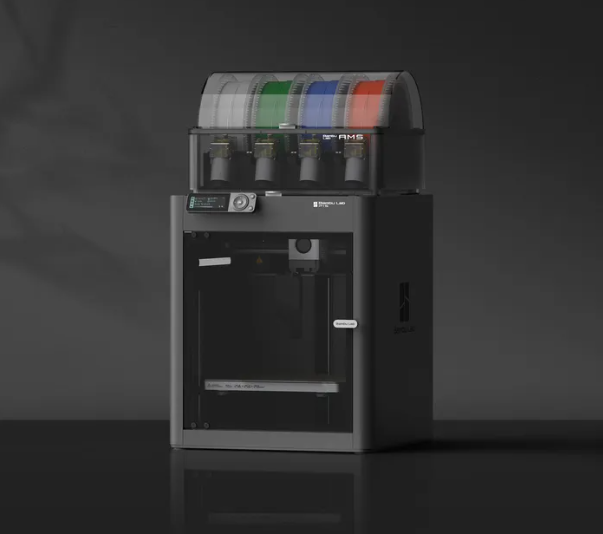

4. Bambu Lab P1S
The P1S from Bambu Lab is an expansion on the P1P with an enclosure. While printing on PET, this helps keep the inside at a consistent temperature. Layer adhesion and surface defect reduction on bigger items are both enhanced by improved heat stability. For those who print PETG often, it is an excellent option. PETG-CF is still in need of reinforced enhancements.
Price: $549–$699 USD

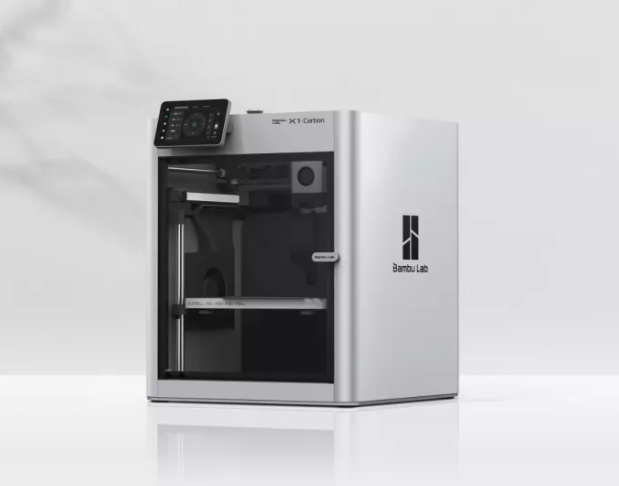

5. Bambu Lab X1C
Advanced PETG printing capabilities are available immediately upon purchase of the Bambu Lab X1C. Nozzles made of hardened steel and extruder parts that withstand wear are part of it. With no adjustments needed, it becomes compatible with regular PETG, PETG-HF, and PETG-CF. It works wonderfully with mechanical, professional, and load-bearing PETG uses.
Price: $799 USD
Best 3D Printing Software
Having discussed that, it becomes important to reveal the best 3D printer. There are many 3D printing software available that can prepare designs for 3D printing, but we recommend SelfCAD. SelfCAD is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.
There are also easy-to-use selection modes as well as various modification tools to help you modify your designs based on your requirements. It also comes with an image-to-3D feature that makes it easier to turn photos into 3D models. You can also import STL files and modify them based on your needs. The software also comes with an in-built online slicer that one can use to prepare designs for 3D printing.
Conclusion
As a conclusion, the answer is yes—printers from Bambu Labs can handle PETG with ease and quality. You can use standard PETG and PETG-HF with any printer from Bambu Labs. For more complex PETG-CF prints, you'll need a more expensive model or to invest in hardware upgrades for cheaper printers.
Success hinges on your familiarity with the material's qualities and the care you take in preparing your filament. Make sure your prints are robust, clean, and dependable by drying the filament, cleaning the build plate, using the right nozzle types, and fine-tuning the printing settings. Following these guidelines will make PETG an invaluable asset to your Bambu Labs printing process.
