Best Ways to Reduce 3D Printer Noise for Quiet Printing

This is a well-known issue among 3D printer users. You should avoid waking anyone up by printing late at night. Working in a shared space is challenging due to the constant background noise. Because of the noise, you might even decide not to print. Read this article to learn how to resolve the issue. Here you will find detailed instructions for silencing your 3D printer.


The Reasons Your 3D Printer Makes So Much Noise

The primary sources of noise from a 3D printer are as follows. When they're in motion, stepper motors make a mechanical sound. Cooling electronics and heated components requires swift fan rotation. When you move the object, the vibrations will go through the frame and onto the desk. From a distance, you can hear this vibration's low buzz or hum. Printer noise reduction is an iterative procedure because, as many users have noted, one component becomes apparent after fixing another.

Modern stepper drivers with silent modes and micro-stepping lessen the characteristic buzzing sound of motors, as one experienced user explained. These drivers reduce noise and make motion more fluid. Because they are missing certain capabilities, older drivers, such as A4988, are noticeably noisier. The printer becomes noticeably quieter after you switch to silent drivers. Because of this, the fan noise is usually the sole audible component.

Reduce Noise from Stepper Motors

1. Upgrade to Silent Stepper Drivers

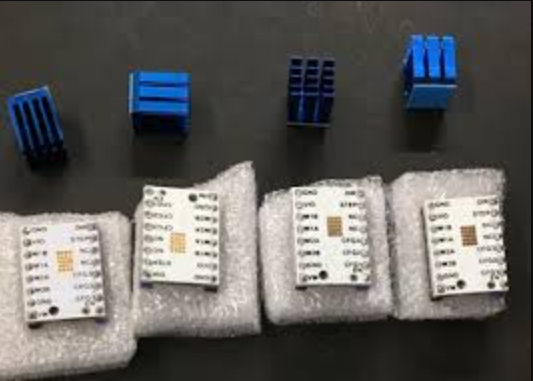

Updating the stepper drivers does make a difference, according to many people. A lot of people utilise drivers like the TMC2208, TMC2209, or ones like them for silent printing. These drivers have a "StealthChop" mode that makes the motor much quieter. Reduced motor noise and improved performance are both results of the more refined current regulation.

Many users have commented on how drastically different the A4988 and TMC drivers are. Once a harsh buzz, the sound has now faded to a gentle whir. Some have also noticed that while using the silent mode on their TMC2100 drivers, the motors become almost silent, with only a faint background sound lingering.

Before you change drivers, check if your firmware is compatible with them. Make sure to test each axis after installation. In order to achieve consistent, silent motion, it may be necessary to slightly raise the current if the motors skip steps. A lower current usually implies less motor noise, but too little can cause missing steps, according to users online. So, be careful while setting the current.

2. Tune Motor Current and Motion Settings

To lessen the loudness, several in the community have suggested decreasing the stepper current. The amount of power supplied to the motors is altered by this. If the current is too low, the motor will skip, but if it's too high, the motor will make less noise. While there is no universally accepted value, many have found success by lowering the current by 10–20% from the factory settings and making sure the motion remains correct.

Another piece of advice from seasoned builders is to dial back the strong motion settings. A firmware or slicer setting a lower value for acceleration and jerk will assist. If your printer's firmware supports acceleration and jerk, users typically advise beginning with acceleration levels between 800 and 1,000 mm/s² and jerk values between 8 and 10 mm/s. Moving at a slower pace results in less vibration and less noise.

3. Quiet the Fans

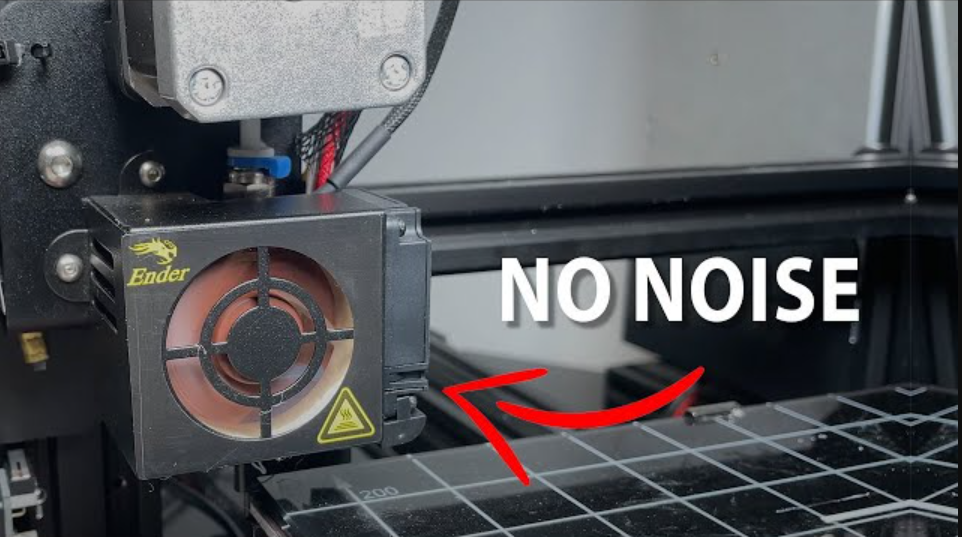

As many people have pointed out on forums, cooling fans may actually be rather noisy. Even after reducing motor noise, chamber or part cooling fans frequently continue to be the most noticeable source of noise.

Reducing the chamber fan to approximately 70% reduced perceived noise without compromising cooling, according to an experienced Bambu Lab user. Many slicers have cooling controls or firmware fan speed limits that allow you to access this parameter.

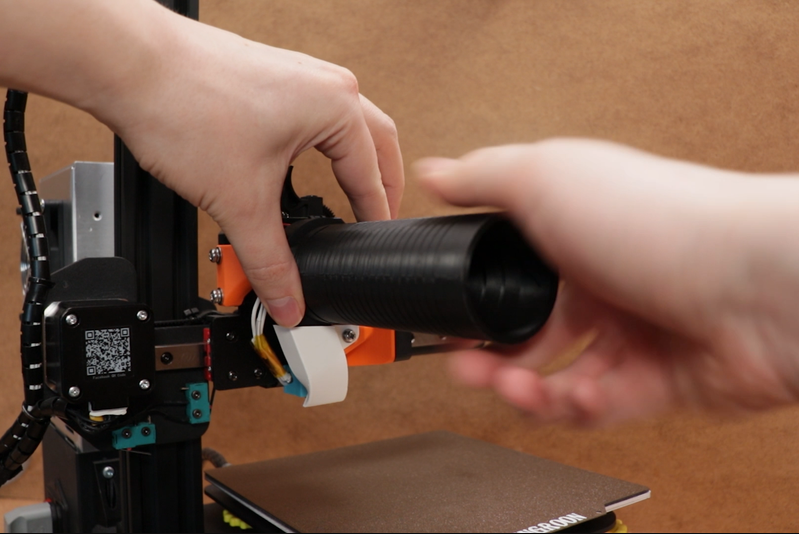

Swapping out the stock fans for quieter ones is another suggestion that has come up in the talks. Better bearings and quieter spinning blades are the ingredients in silent or extremely quiet fans. Reducing PWM noise is another helpful measure. Pulse-width modulation (PWM) is noisier than continuous-wave (CW) fan power pulses. To avoid audible whining, some power users tweak the PWM frequency in the firmware to make the pulsing occur at a higher frequency.

Follow all modifications with cooling tests. Overheating of the hot end or its components is possible if the fans are either turned off or turned down too low.

Reduce Vibrations

1. Place Printer on Anti-Vibration Surfaces

A typical technique involves layering foam or rubber with a concrete slab or paver. This mix increases the bulk and reduces the transmission of vibrations. Using this arrangement, several users have noticed a significant decrease in sound quality.

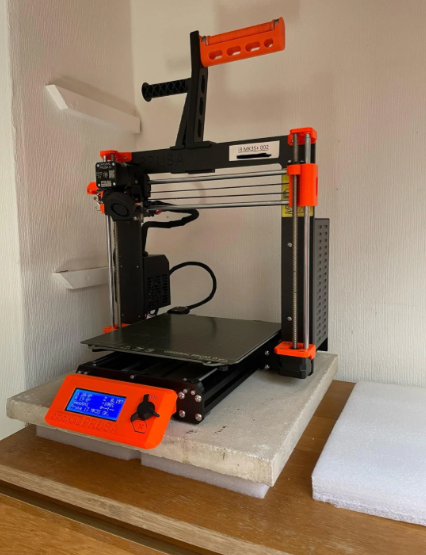

Some seasoned producers recommend placing a thick foam pad under the printer, with a concrete paving stone on top. As the foam dampens vibrations, the hefty stone acts as a resistive force. As a result, less sound will be able to penetrate the surface below.

You can also put isolator pads or soft feet under the printer's corners for added support. Some people go to extreme lengths, like dividing a squash ball and then placing it under the printer's feet. Under strain, they compress and dampen vibrations.

2. Add Dampers and Check Mechanical Parts

In user groups, vibration-reducing mounts for the X and Y axes and stepper motor dampers come up quite a bit. Some builders vouch for dampers, claiming they reduce printing noise by dampening motor vibration. Some people think that cheap dampers aren't worth the risk because they add slack.

Mechanical upkeep and firmware are further factors. Secure the screws, belts, and pulleys. The rattling sounds produced by loose parts increase in volume as the pace increases. Oiling moving parts like rods and bearings quiets them down. Keep everything running smoothly and silently by cleaning the rails and lead screws.

Use Enclosures and Sound Insulation

1. Sound-Reducing Enclosure

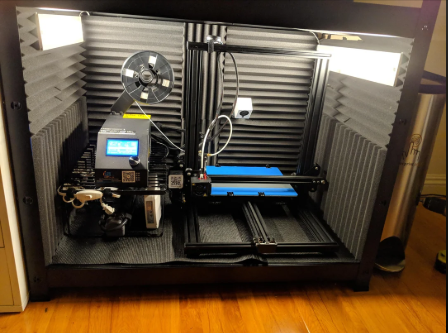

A decreased amount of outside noise can enter a room through an enclosure. In order to reduce noise, many users construct their own boxes out of acrylic or wood and then line them with foam. The enclosure's foam panels dampen ambient noise and soak up the high-frequency vibrations produced by the fans and motors.

According to experts, you can even make the printer quieter by putting a foam blanket on top of it or putting it inside a closet. Keeping the temperature controlled is another advantage of a sealed enclosure for printing materials that react to drafts, such as ABS or PETG.

2. Add Acoustic Panels

A further measure to reduce noise in an enclosure is to include panels or foam that absorb sound. These plush materials act as a sound barrier, preventing sound waves from bouncing about. People who use the printer in public areas have noticed that this can reduce its normally audible buzzing sound to a barely audible hum.

Adjust Printer Use and Settings

There is a stealth or quiet mode that comes standard on some printers. These modes make the transitions between movements more gradual and less abrupt. Although many users find the sound drop to be worthwhile, printing in silent mode typically results in longer print times.

According to the forums, reducing the total print and transit speeds makes a significant difference. Compared to quicker settings, printing speeds of 40–50 mm/s and travel speeds of 60–80 mm/s make less vibration noise.

Decreased accelerations lessen abrupt beginnings and endings. A quieter alternative to high defaults, such as 2,000+ mm/s², is acceleration settings closer to 800-1,000 mm/s².

Best 3D Printing Software

There are many 3D printing software available, but we recommend using SelfCAD. It is an easy to program that gives designers an all-in-one, 3D modeling environment that is fast, intuitive, and optimized for iterative design. Its key features like image to 3D model, free hand drawing and sketching, easy to use selection tools and modification and deformation tools, as well as powerful 3D sculpting tools. SelfCAD also includes an online slicer that you can use to slice your files and generate the G-code to send to your 3D printer. The video below shows the overview of the software.

Conclusion

Eliminating 3D printer noise requires a methodical approach. Consider the stepper motors and fans first because they produce the most noise. Find quieter motors and fine-tune the fan speeds. Proceed by securing mechanical components and incorporating vibration isolation. Lastly, you may fine-tune your configuration by using enclosures and smart print settings.

Actual user experiments and forum conversations back up each of these procedures. When combined, they make printing a more pleasant and peaceful experience. With the correct configuration, you can print quietly in nearly any room.
