Nozzle and Bed Temperature Settings: Key Settings for TPU
Among the many beneficial 3D printing materials, TPU stands out. The material is long-lasting, sturdy, and pliable. It finds application in shock-absorbing components, gaskets, seals, wearable technology, and phone cases. However, TPU is also quite delicate. Inaccuracies in temperature are easy to spot.
Temperatures at the bed and nozzle determine the flow, bonding, and sticking properties of TPU. Making a few minor adjustments might turn a successful print into a disastrous one. TPU is completely distinct in its behavior from PLA and ABS. Temperature changes trigger an immediate response from it. The optimal TPU nozzle and bed temperatures are detailed in this tutorial. Continue reading to learn more.
Understanding TPU and Temperature Behavior
TPU, or thermoplastic elastomer, is notoriously bendable. It doesn't transform instantly from solid to liquid when heated; rather, it softens over time. Critical temperature management is thus required.
Unless the nozzle is heated to an appropriate level, TPU will not budge. The extruder could cause it to buckle. If it clogs or under-extrudes, be careful. Too much heat causes TPU to become too pliable. It creates strings and blobs as it runs wildly.
Bed temperature regulates the stability of the initial layer. Although it stretches, TPU clings nicely. First layers are susceptible to lifting, smearing, and distortion when the bed temperature is off.
The behavior of each brand of TPU varies slightly. Never consider temperature readings as gospel; they are only guidelines.
Nozzle Temperature for Perfect TPU Extrusion

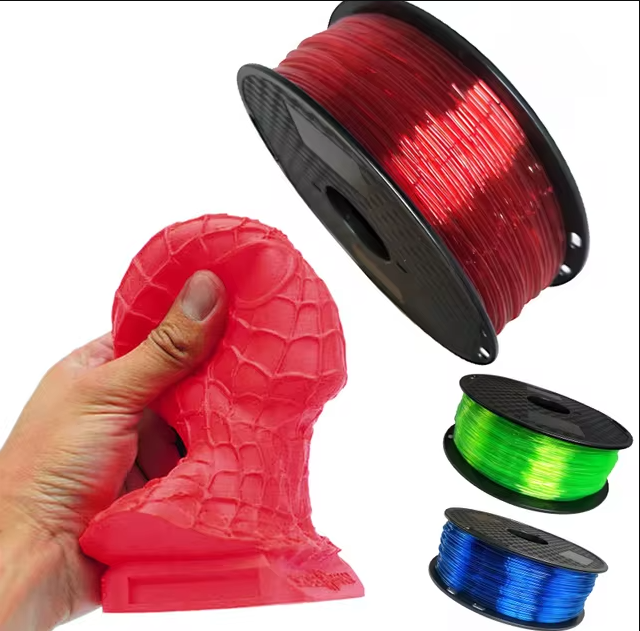

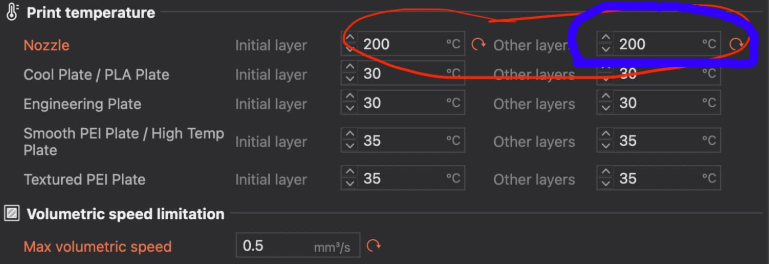

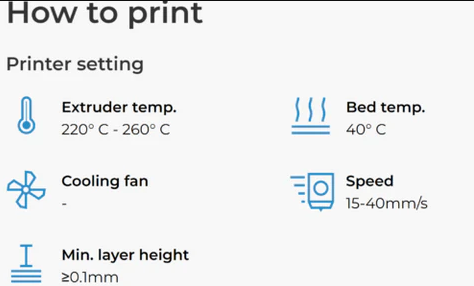

The melting point and the strength of the bonds between layers are both influenced by the nozzle temperature. In general, the optimal printing temperature range for TPU filaments is between 210 and 250°C. A typical starting point is approximately 230°C. At this temperature, many TPU brands can flow smoothly without too much stringing. A less rigid TPU is more at home at cooler temperatures. More heat is usually required for stiffer TPU.
Unpredictable extrusion occurs at low nozzle temperatures. Seemingly fragile layers. Breach potential. Bonding and flow are both enhanced by gradually raising the temperature.
Overly elastic TPU is a result of high nozzle temperatures. Surface flaws, leaking, and stringing result from this. It is common for a small drop in temperature to resolve this.
How does TPU Shore Hardness Change with Nozzle Temperature?
When choosing the nozzle temperature, shore hardness is a key factor. Inside the hot end, TPU with a softer surface, like Shore 85A or lower, is more likely to distort. Reducing the nozzle temperature helps it keep control. Hotter than 220°C tend to provide better prints on very supple TPU. It becomes unstable and difficult to handle at higher temperatures.
The behavior of stiffer TPU, say Shore 95A or above, is similar to that of a semi-rigid filament. For constant melting, additional heat is required. 230–245°C is frequently the sweet spot for these materials' performance. Inadequate layer bonding and under-extrusion occur when the temperature is too low and the TPU is too stiff.
Bed Temperature for Reliable TPU Adhesion
The bed temperature has an effect on the initial layer adhesion of TPU. Extreme bed heat is not necessary for TPU. The optimal temperature range for TPU printing is 30–60°C. A safe and dependable starting point is a bed temperature of about 50°C. The initial layer is able to remain flat and has less edge lifting as a result of this. Lack of proper bed temperature can still lead to lifting on bigger prints, even though TPU rarely warps.
With a sticky bed, some TPU filaments can print even at room temperature. To remain steady, others require mild temperatures. Gradually tweak until sticking is stable, but removing is still a breeze.

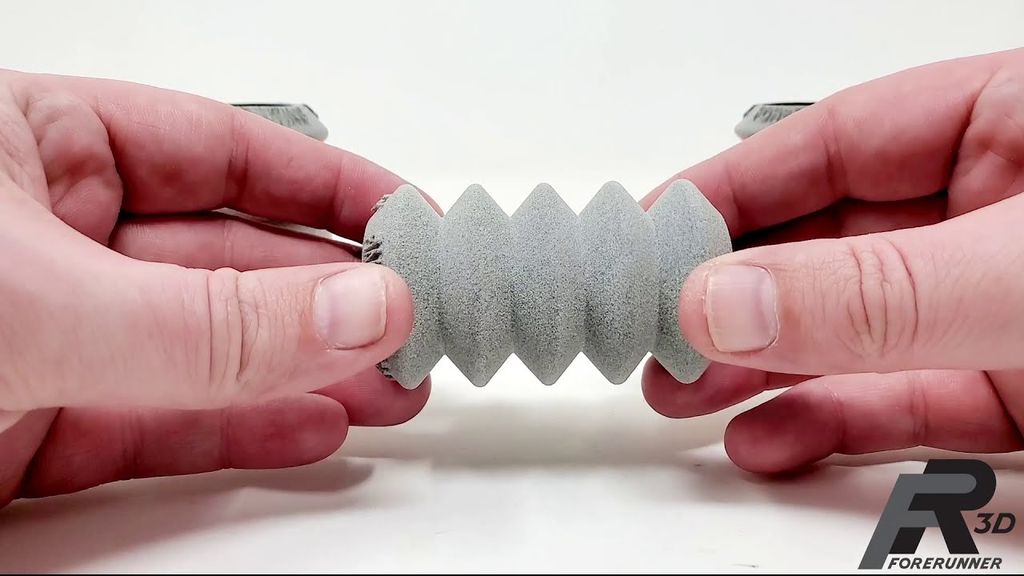

Why is the Temperature of the First Layer Is More Important for TPU?
If the first layer isn't successful, the print will fail. Lying down TPU causes it to stretch. Inadequate filament-to-bed bonding occurs at low nozzle temperatures. The first layer gets too mushy if the nozzle heats up too much. It might smudge, drag, or become distorted. For the first layer, it's usually best to use a slightly higher nozzle temperature to increase adherence. Properly anchoring the filament requires raising the nozzle temperature by around 5°C for the initial layer. A restoration to the standard printing temperature thereafter enhances surface quality.
The first layer requires a bed temperature that stays consistent. When there are fluctuations, it might lead to adhesion issues and uneven stretching.
The Relationship Between Temperature and Print Speed
Since TPU prints slowly due to its inherent properties, the print speed and temperature are tightly related when printing on TPU. Extrusion stress and control are both improved by slow speeds. It stands to reason that the nozzle temperature would rise in tandem with the print pace. The filament won't melt quickly enough if you don't. Uneven extrusion, resistance, and missed steps result from this.
Maintaining consistent temperatures and slow speeds is ideal for printing TPU. It is safer to slowly increase the temperature rather than push the speed higher.
Cooling Fan Behavior and Temperature Balance
When printing with TPU, cooling fans have a significant impact on temperature behavior. Reducing the cooling time too much weakens layer bonding. This becomes more apparent when the nozzle temperature is lower. Over the first several layers, you should keep the cooling on low or turned off for the best results. This stabilizes the heat and makes adhesion better. After that, little cooling can enhance the surface's polish without compromising the integrity of the layers.
Layer separation is typically better addressed by decreasing fan speed rather than raising nozzle temperature.
Temperature Differences Between Direct Drive and Bowden Systems
The design of the extruder affects the temperature reaction of TPU. With direct drive extruders, TPU is a breeze to work with. Filament trajectories are brief. This enables stable extrusion at marginally reduced nozzle temperatures.
Heat is more important for Bowden systems. Because it is moving through a lengthy tube, the filament is losing energy. In order to use the same TPU in a Bowden system, the nozzle temperature needs to be 5–10 degrees Celsius higher.
Typically, the temperature of the bed remains constant for both systems. On the other hand, the increased extrusion resistance of Bowden printers makes for better first-layer adhesion.
Environmental Temperature and Print Stability
Many consumers are unaware of how much room temperature impacts TPU printing. Too much cold air causes TPU to cool down too rapidly. Reduced layer bonding and flexibility is the result of this.
For better uniformity, print in a warm, draft-free room. Prints are better protected from fluctuating temperatures by using enclosures. Because of this, it is not necessary to increase the nozzle temperature.
The importance of bed temperature increases in rooms with lower temperatures. When printing on a stable heated bed, you won't have to worry about uneven cooling.
Long TPU Prints and Temperature Consistency
Due to slower speeds, TPU prints typically take more time. The stability of temperature becomes crucial during extended print durations.
Varying nozzle temperatures leads to irregular extrusion. This causes surfaces to be uneven and fragile in certain areas. To keep the nozzle temperature constant, a fine-tuned hotend PID is useful.
The temperature of the bed should also not change. Long prints are prone to subtle lifting or distortion caused by slow temperature decreases. Consistency matters more than chasing exact numbers.
Reminders That It's Time to Change Your TPU's Temperature
When the nozzle temperature is too low, it usually results in weak layers and poor bonding. Raise it a notch and give it another go.

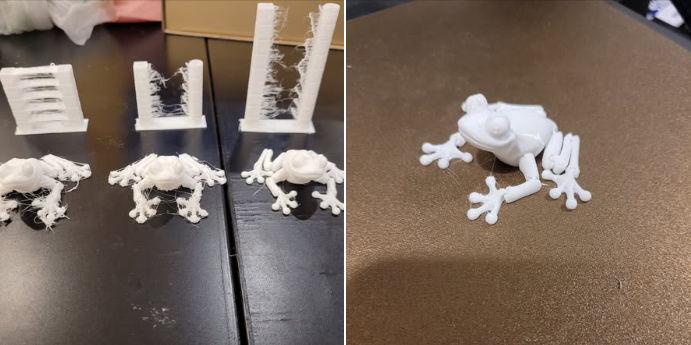

Too much heat at the nozzle is frequently the cause of stringing and blobs. Bring it down slowly.
Low bed temperature is a common cause of poor adhesion or lifting edges. Bring it up slowly.
Beds with squishy or misshapen bases may be premature signs of overheating. You should always test out a new setting by adjusting just one at a time.
