Best 3D Printer Nozzles for High-Volume School Printing

Nozzle quality is crucial if your school uses printers on a daily basis. You can print more quickly, with less jamming, and with a better nozzle. Learn the signs to look for with this handy guide. Additionally, it features dependable, classroom-ready nozzles that are affordable, long-lasting, and fast.

What Does "High-Volume" Mean in a Classroom?

Sharing printers across multiple groups enables high-volume printing. Throughout the day, printers are in operation; therefore, filaments undergo regular changes. The files may include both individual components and larger projects or batches of spares. Nozzles that can withstand lengthy workloads, frequent material exchanges, and occasional student mistakes are ideal for this environment. It is greatly beneficial to have larger diameters, durable materials, and easy maintenance.

The Key Things to Consider Before Picking Your Nozzle

1. Durability

Ensure long-term viability. While PLA works wonderfully with brass, abrasive filaments such as carbon-fiber blends or glow-in-the-dark cause it to wear down quickly. Nozzles made of hardened tool steel, tungsten carbide, or an improved coating are extremely durable and do not easily wear out. Even after months of use, it keeps measurements accurate and lessens clogging. The ObXidian, made by E3D, has a diamond-like carbon coating that is resistant to abrasion and maintains high heat transfer—the ideal material for demanding laboratories.

2. Diameter

As a general rule, a 0.6 mm or 0.8 mm nozzle works well for school throughput. By avoiding delicate stringy barriers, you can do tasks more quickly. Moreover, you lessen the possibility of blockages caused by incomplete retractions or a slightly moist filament. Bambu suggests its hardened steel nozzles for quicker printing on the P1 and X1 series; however, many other brands offer matched 0.6 mm and 0.8 mm alternatives.

3. Flow rate

The rate of flow is also important. Faster filament melting is possible with high-flow designs, allowing for faster printing of thick lines. Bondtech's CHT geometry creates an internal split in the filament, which speeds up the melting process and allows you to force material through without subjecting it to dangerously high temperatures. When you upgrade the flow rate to 0.6 mm or 0.8 mm, it is a practical upgrade.

4. Compatibility and Maintenance

The compatibility and upkeep ought to be easy. Find nozzles that are compatible with the thread and format of your hotend. Go for choices that spell out their temperature limitations and torque recommendations clearly. To ensure safe and repeatable installations, Slice Engineering includes torque values and maximum temperatures on its page.

How to Pick the Right Diameter for a School?

As a general rule, a 0.6 mm nozzle works well in most schools. Printing with 0.4 mm is noticeably slower, but the surface quality is still clean. First layers aren't as finicky, but even small logo details and text look great. Step up to 0.8 mm and layer height to around 0.32-0.4 mm for time-sensitive prototypes. The time savings are substantial, but you will have to sacrifice some superficial detail. One station should be reserved for small components or threads with a 0.4 mm nozzle and a profile that has been fine-tuned. According to the official guidelines, 0.6 mm and 0.8 mm are the recommended speeds for your Bambu lab. These speeds are suitable for the needs of the classroom.



Recommended Nozzles for School Labs

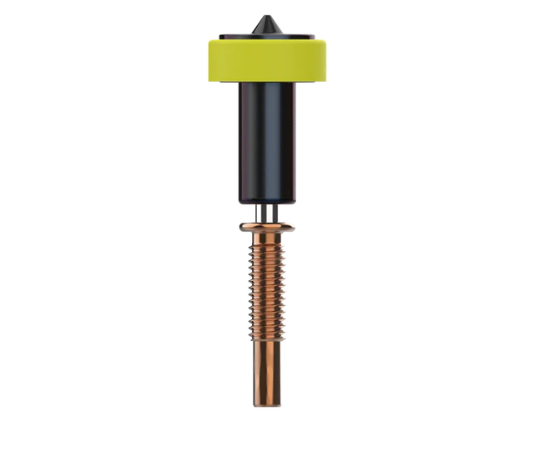

1. E3D Revo ObXidian

Designed to withstand abrasive filaments, this nozzle is compatible with the E3D Revo environment. The E3DLC coating provides both extremely high wear resistance and thermal performance comparable to that of brass, which allows you to maintain your typical profiles and temperatures while experiencing significantly increased nozzle life. Students are less likely to overtighten when using Revo because of its quick-swap feature, which allows you to change it cold. It is a stress-free option for classes that cover a variety of topics and have frequent handoffs. E3D provides standard diameters ranging from 0.25 mm to 0.8 mm, as well as high-flow variants for bigger sizes, and rates ObXidian up to 300 °C.

Price: £48.50

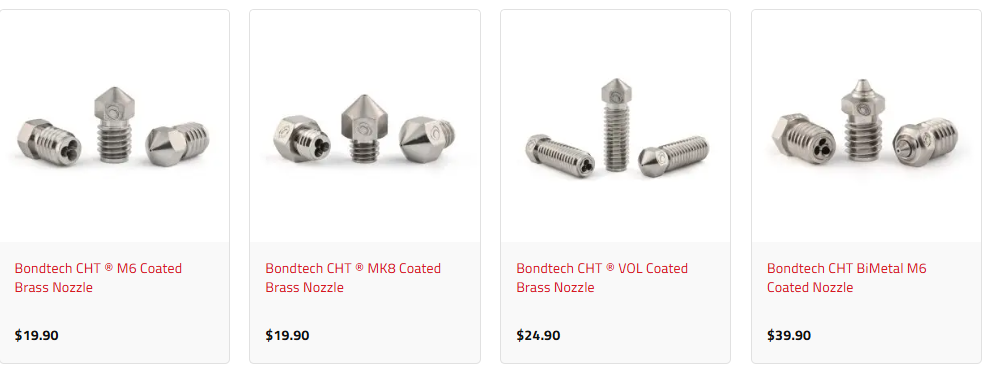

2. Bondtech CHT

A focus on throughput characterizes Bondtech's CHT nozzles. Larger nozzles are more efficient because the internal tri-channel bore boosts volumetric flow and the effective melt area. Batch printing goes more quickly, and large tasks don't take as long to complete in a school setting. For typical filaments, CHT is offered in coated brass. For more demanding applications, it is available in additional materials. If you upgrade to 0.6 mm or 0.8 mm, you will notice the 30% flow gain that Bondtech claims. This is a great choice if you need speed above all else and don't want to replace the hotend completely.

Price: Starting from $18

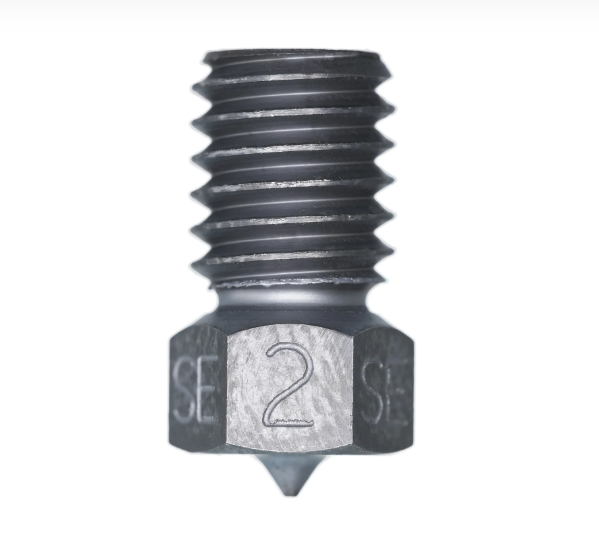

3. Slice Engineering Vanadium

Nozzles composed of vanadium are entirely substrate hardened from high-speed steel that is vanadium-alloyed. The orifice remains round and accurate even after months of carbon-fiber or filled filaments because of this "hard to the core" method. Compared to other basic hardened steel choices, its rated hardness of 65 HRC is quite high. This nozzle strikes a good mix between print quality, lifespan, and dimensional stability, making it ideal for labs that require a single nozzle for nearly all of their needs. When you don't have time to attend to each print carefully, it is a reliable option.

Price: $21.99

4. Phaetus Tungsten Carbide

Nozzles made of tungsten carbide have excellent thermal conductivity and remarkable resistance to wear. The unusual combination not only heats uniformly but also withstands abrasion admirably, allowing for consistent extrusion even at greater rates. With a maximum temperature of 550 °C, a Mohs hardness of 9, and excellent thermal conductivity, Phaetus is an impressive material. Schools that frequently utilize carbon-fiber PETG for robotics can rest assured that this nozzle can take the strain and maintain uniform layer thickness. Many printers used in classrooms may utilize it because it is available in popular geometries such as RepRap M6 and MK8.

Price: On-demand

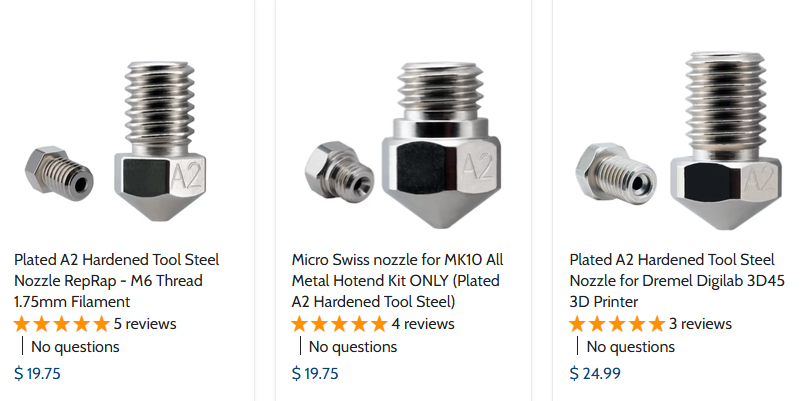

5. Micro Swiss A2 Hardened Steel (TwinClad XT)

Nozzles made of Micro Swiss A2 tool steel are an excellent substitute for brass. The heat treatment of the steel body and the application of the TwinClad XT coating provide improved wear resistance and reduced surface friction. You can trust that the brand provides hardness ranges for both the base steel and the coating when you choose a long-lasting, cost-effective nozzle for a fleet. This is an affordable standard for classrooms that mostly use PLA and PETG, with occasional runs of abrasive materials.

Price: $19.75

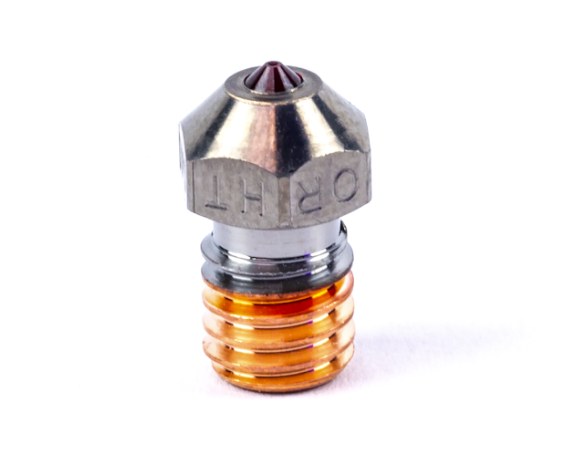

6. Olsson Ruby (High-Temperature Version)

The Olsson Ruby's copper-alloy body aids in heat transmission, and a little gem at the tip resists wear. The design's primary advantage in the classroom is its ability to produce long-lasting filled filaments and precise details with smooth edges; however, the high-temperature variation significantly increases the operational ceiling to approximately 500 °C, which is much beyond the requirements of most school printers. This is a high-end, functional choice for advanced STEM schools that work with abrasive materials and require a nozzle that can withstand repeated uses.

Price: $150

Comparison Table: Best 3D Printer Nozzles for High-Volume School Printing

Best 3D Design Software for Education

SelfCAD is an all-in-one 3D modeling and slicing tool that works well in classrooms. It combines design, sculpting, and slicing in one platform, so teachers don’t need multiple programs. The interface is simple for beginners yet offers advanced tools for more experienced students. Because it runs in the browser and offline, students can work at school or at home. For the classroom, SelfCAD’s built-in slicer offers ready-to-use material presets, eliminating the need for trial and error with temperatures and retraction.

Optimizing Nozzle Selection for Consistent Classroom Output

Regularly used tools are ideal for school makerspaces. The correct nozzle may transform chaotic lineups into orderly timetables. Choose a long-lasting substance, settle on 0.6 mm for routine tasks, and have a quick 0.8 mm on hand for when things become tough. Your printers will operate silently in the background as students generate meaningful work if you follow the temperature and torque guidelines provided by each brand.
