Auto vs. Manual Bed Leveling: Which Saves More Time for Teachers?
While 3D printers are great for classroom use, instructors hate having to level the print bed every time a print doesn't turn out right. Time spent adjusting bed screws or fixing unsuccessful prints is time away from teaching. The precision required for manual leveling is beyond the capabilities of most pupils, and the upfront investment required for auto-leveling devices forces educators to make difficult choices between time and money.
This comprehensive guide evaluates automatic and manual bed leveling systems based on ten key criteria, showing which one is better for classroom efficiency and student learning.
Understanding Bed Leveling in Educational Contexts
When you level the bed, ensure the build plate of your printer is perpendicular to the movement plane of the nozzle. Keeping the bed level is especially important in classrooms where several students use the printer frequently. Failed prints, lost filament, and irritated pupils result from an uneven bed, which in turn takes up precious class time.

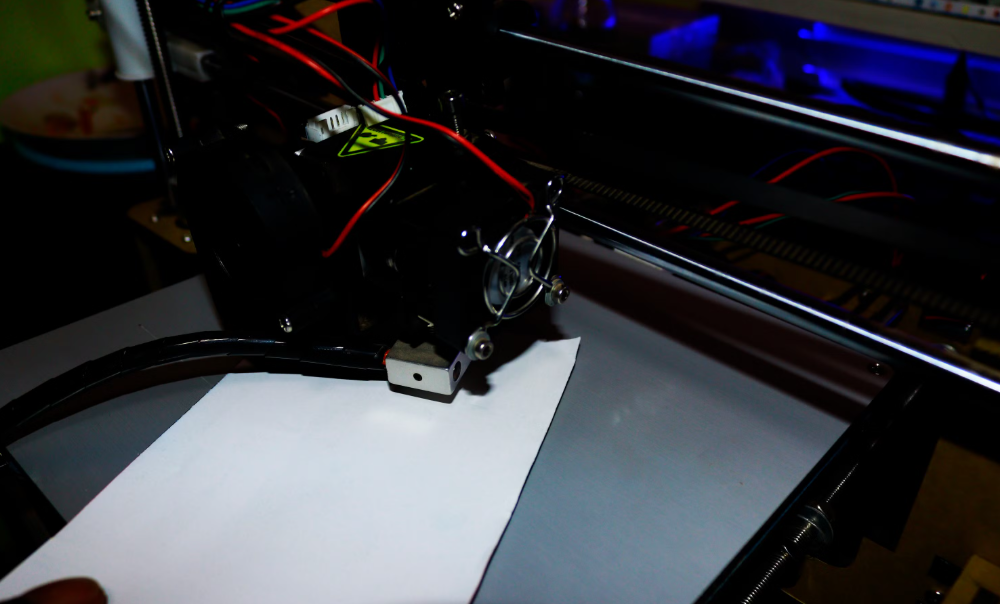

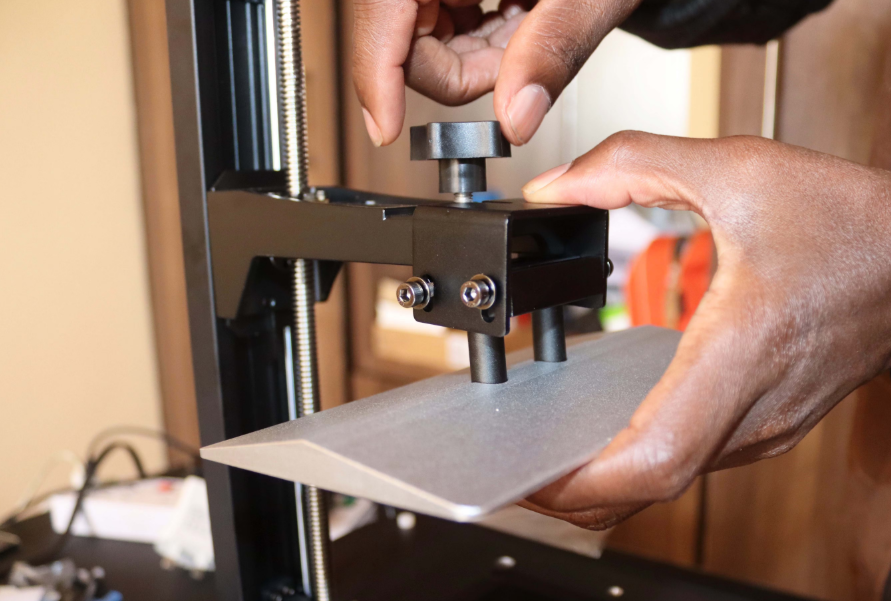

When leveling a bed by hand, you should use a piece of paper or a feeler gauge to adjust the leveling screws in each corner until you feel uniform resistance.
This time-honored technique fosters pupils' mechanical aptitude through hands-on experience with the printer. Systems that automatically level the bed, such as BLTouch or CRTouch, employ probes to measure the surface of the bed and adjust the firmware to compensate for any unevenness.
Auto vs. Manual Bed Leveling in the Classroom
1. Setup Time
Auto Bed Leveling (ABL)
Automatic bed leveling systems automatically measure the bed's surface using sensors such as BLTouch or CRTouch. Two to five minutes is all it takes, and you won't even need to touch a button. Regular re-leveling is unnecessary because many printers save the mesh data.
Manual Bed Leveling
When leveling a bed manually, you'll need to use a piece of paper or a feeler gauge to adjust each corner. Particularly in classrooms with multiple printers, this painstaking process might take ten to twenty minutes for each printer and necessitates frequent rechecks.
Winner: Auto-bed leveling is perfect for instructors who are short on time because it drastically reduces setup time.
2. Maintenance Requirements
Auto Bed Leveling (ABL)
Despite their automation, ABL sensors do require calibration from time to time. To keep things accurate, firmware updates could be necessary. But there's not much upkeep required every day.
Manual Bed Leveling
Requires regular inspections, especially if pupils use the printer. Minor obstacles can cause the bed to become misaligned, necessitating a readjustment of the bed.
Winner: Reducing long-term maintenance efforts is one of the benefits of ABL.
3. Ease of Use for Students
Auto Bed Leveling (ABL)
Since ABL takes care of calibration automatically, students can start printing with little oversight. It lessens the impact of initial layer failures.
Manual Bed Leveling
Mastering the art of manual bed leveling calls for practice and practice only. Younger students may require additional guidance from teachers to achieve the necessary level of accuracy.
Winner: The winner is ABL since it is easier for students to utilize on their own.
4. Print Success Rate
Auto Bed Leveling (ABL)
By smoothing out small bumps in the bed, Auto Bed Leveling (ABL) considerably enhances first-layer adhesion. It minimizes lost prints caused by uneven surfaces.
Manual Bed Leveling
Easily misunderstood. Prints can come out unevenly layered or detached in the middle of the printing process due to even minor adjustment errors.
Victor: ABL produces more dependable and consistent outcomes.
5. The Importance in Education
Auto Bed Leveling (ABL)
Learn about firmware compensation, automation, and sensor technologies with Auto Bed Leveling (ABL). Excellent for more complex STEM ideas, but it does away with mechanical training.
Manual Bed Leveling
Improves dexterity, perseverance, and mechanical sense. Apt for elementary-level 3D printing classes that cover the basics.
Winner: ABL for the automation manual for mechanics; the choice is up to the goals of the program.
6. Factors Regarding Cost
Auto Bed Leveling (ABL)
The installation and sensors for auto bed leveling (ABL) add $30 to $100 per printer. There is less filament waste from failed prints, but there is a higher initial cost.
Manual Bed Leveling
No supplementary gear required. But in the long run, filament costs go up because of failed prints caused by inadequate leveling.
Winner: Manual is less expensive initially, but ABL could end up saving money in the long run.
7. How Well They Hold Up in an Educational Setting
Auto Bed Leveling (ABL)
If students aren't careful, the Auto Bed Leveling (ABL) Probes could break. After installation, though, they don't necessitate much manual handling.
Manual Bed Leveling
Superior in longevity due to the absence of electronic components and reliance on screws. Leveling knobs can wear out with repeated adjustments, though.
Winner: Manual is the superior choice for high-use classrooms due to its greater durability.
8. Flexibility for Different Print Surfaces
Auto Bed Leveling (ABL)
With Auto Bed Leveling (ABL), the system adjusts itself to work with various build plates, such as glass and PEI. It is even possible to switch beds without releveling with some systems.
Manual Bed Leveling
Changing print surfaces necessitates a full releveling of the manual bed leveling system. Using different kinds of beds in each session can be a real time sink.
Winner: The winner is ABL because it is more adaptable to classrooms that use a variety of materials.
9. Concerns Regarding Distractions and Noise
Auto Bed Leveling (ABL)
Before printing, the probing sequence generates extra noise. Repetitive beeping could be annoying to certain kids.
Manual Bed Leveling
The procedure ends quietly. The printer is operating normally; there are no extra noises.
Winner: Manual is more suitable for peaceful and concentrated classes.
10. Time Saved in the Long Run
Auto Bed Leveling (ABL)
Because Auto Bed Leveling (ABL) doesn't require manual adjustments, it saves a lot of time every month. Educators can devote more time to actually teaching and less time to fixing problems.
Manual Bed Leveling
Spending time on rechecks all the time takes away from actual teaching. Dealing with multiple printers can be a hassle.
Winner: ABL is the undeniable tool that helps teachers save time.
Which One Saves More Time for Teachers?
The most reliable, time-efficient, and low-maintenance option is Auto Bed Leveling (ABL). It's perfect for schools that have a lot of printers but lack sufficient staff to keep them all in good working order. While manual bed leveling does a superior job from an educational value and cost perspective, it does necessitate more teacher intervention.
Most teachers find that ABL is the most practical and efficient solution, freeing them up to concentrate on lessons rather than printer troubleshooting. Students can learn the basics of 3D printing mechanics with the help of a manually leveled printer.
Which is the Best 3D Modeling Software?
When considering a classroom-friendly 3D printer, it becomes necessary to introduce the best 3D design software for students. SelfCAD simplifies 3D design and printing with an intuitive, browser-based program as well as a downloadable version, enabling students to quickly create and bring their ideas to life.
In addition to 3D modeling tools, SelfCAD also includes a built-in online slicer that allows you to slice your designs and generate G-code to send to your 3D printer. The software also comes with interactive tutorials that make it easy for users to learn how the software works, requiring minimal time and effort.
FAQs
1. Even with automatic bed leveling, is it necessary to level the bed by hand?
Yes. Auto bed leveling (ABL) doesn't really level the bed; rather, it adjusts for minor inconsistencies by dynamically altering the nozzle's height. Unfortunately, ABL won't be able to rectify an extremely uneven bed. For optimal print quality, make sure the bed is level before you begin.
2. How is automatic bed leveling different from manual leveling?
Adjusting the screws or knobs on the bed is the manual method of leveling it so that the nozzle is at the proper distance from the bed surface crosswise. During printing, auto bed leveling adjusts the nozzle height based on several bed measurements taken by a sensor. The difference between ABL and manual leveling is that the latter involves physically positioning the bed, while the former addresses minor inconsistencies.
3. Auto bed leveling- how does it work?
Auto bed leveling takes readings from the nozzle-to-bed distance at various positions using a sensor (e.g., BLTouch or inductive probe). The firmware of the printer makes a "map" of the surface of the bed. To maintain the proper height of the nozzle during printing, it automatically adjusts the Z-axis using that map.
4. How can I deal with a twisted print bed?
Even a slight bed unevenness won't stop ABL from making high-quality prints. Poor adhesion and uneven layers will still result from a badly deformed object. In that instance, you'll either have to buy a new bed or level it by hand with great precision.
5. Is auto bed leveling a magic solution?
No. Proper maintenance is still necessary, but it simplifies setup and makes things more consistent. It is still your responsibility to verify that the print surface is clean and in good shape and that your bed is physically level. Keep in mind that ABL is only a supplement to human leveling, not a replacement for it.
