3D Printing with Polypropylene: A Complete Guide

3D Printing with Polypropylene: A Complete Guide

In terms of global usage, polyethylene ranks first, with polypropylene (PP) coming in a close second. It has become an indispensable component of innumerable consumer goods due to its low cost, adaptability, and desirable characteristics. Lightweight, long-lasting, and malleable prototypes and final products are now within reach, all because of the advantages that PP brings to additive manufacturing in the 3D printing world. Learn all about polypropylene in 3D printing—its characteristics, difficulties, and uses—and how to get the most out of it with these helpful pointers.

Material Properties of Polypropylene

Because of its high strength-to-weight ratio, polypropylene is highly prized. This lightweight material is incredibly durable thanks to its high flexural strength, impact resistance, and tensile strength. It is ideal for uses necessitating resistance to moisture due to its excellent water impermeability. Food storage containers and laboratory equipment are just two examples of the many items that can benefit from PP's high melting point, which sets it apart from other plastics.

The chemical resistance of polypropylene is another remarkable quality of the material. Practically any chemical or solvent can't dissolve PP because of its closely packed crystalline structure, making it ideal for use in labs and factories. In addition, it has a long lifespan because it does not quickly degrade due to mold or biological decay. PP is an ideal material for electrical components due to its high resistance to electricity.

For the most part, polypropylene does not contain any harmful additives like bisphenol A (BPA); hence, it is safe to use around food and people. Plastics play a crucial role in sustainability initiatives as they are chemically and mechanically recyclable. It is ideal for use in making live hinges and other pliable parts due to its fatigue resistance, which means it can keep its shape even after being bent or twisted.

Mechanical Properties of 3D-Printed Polypropylene

• Tensile Strength

The typical range of polypropylene's tensile strength is 20–40 MPa, which is considered moderate. The printing parameters, including layer height and infill percentage, as well as the particular PP formulation, might affect its strength. Although PP's tensile strength is lower than that of flexible filaments, it is still better than that of ABS and PLA. Because of this equilibrium, PP is well-suited when components require both lightweight and relatively strong properties.

• Elongation at Break

The high elongation at break, which typically ranges from 100% to 600%, is one of the most notable characteristics of polypropylene. Owing to its great ductility, 3D printed PP components can withstand substantial bending or stretching without cracking. Therefore, PP is the material of choice for live hinges and snap-fit connectors, which are components that are subject to repeated flexing or impact.

• Flexural Modulus

Usually ranging from 1.0 to 1.5 GPa, polypropylene's flexural modulus is somewhat low. The pliability of the material makes it more resistant to fatigue, which means that 3D printed components can withstand repeated loading cycles. For uses that call for resilience, the flexibility enables the creation of components that can flex slightly under stress without permanently deforming.

• Impact Strength

The high impact strength of polypropylene, particularly when kept at room temperature, is another outstanding mechanical characteristic of the material. Depending on the formulation and printing conditions, the notched Izod impact strength of PP typically falls within the 20-100 J/m range. Parts made of PP are more resistant to cracking and breaking when subjected to impact because of this quality. Protective housings, car parts, and sporting goods all make excellent use of this quality.

• Hardness

The Shore D hardness of polypropylene is usually between sixty and seventy. This hardness strikes an ideal mix of pliability and surface durability, protecting against surface wear without becoming brittle. Applications that demand a certain amount of deformation or cushioning in addition to durability, including consumer goods and packaging solutions, benefit from this feature.

Challenges in 3D Printing with Polypropylene

Polypropylene has various uses; however, it presents some difficulties when used in 3D printing. Its semi-crystalline structure makes it prone to prints coming off the print bed due to significant warping strains caused by cooling. Fail prints and dimensional errors could result from this problem.

The bonding characteristics of polypropylene are likewise subpar. Many adhesives have trouble adhering to it, and painting it is an ordeal in and of itself. This may restrict the methods of assembly and post-processing. Also, without additives, PP can degrade and oxidize when exposed to UV light, which shortens its lifespan in outdoor settings.

3D Printing Technologies for Polypropylene

Here are the only few 3D printing processes that work with polypropylene

FDM: Printing with PP filaments is possible with desktop Fused Deposition Modeling (FDM) printers that can reach nozzle temperatures of around 220°C and bed temperatures of up to 100°C.

Nevertheless, results may differ, and warping is still a major obstacle. The improved control and pre-made print profiles offered by industrial FDM machines enable the production of prints of superior quality when working with polypropylene.

Selective Laser Sintering (SLS): SLS machines employ a laser to sinter layers of polypropylene powder. This technique reduces the likelihood of warping and eliminates the need for support structures.

Binder Jetting: Another method that uses PP powder is binder jetting technology, such as Multi Jet Fusion. This method is great for making strong parts with intricate detailing.

Tips for Successful 3D Printing with Polypropylene

The following are some suggestions for dealing with warping and adhesion:

1. Because polypropylene sticks so well to itself, you can use it to enhance adhesion by applying clear polypropylene packaging tape to the print bed. This is an easy and inexpensive fix.
2. To compensate for warping strains, you can adjust the print settings, such as using a big raft or brim to increase the surface area of the initial layer. To avoid overcooling and contraction, it is essential to set the bed temperature between 85°C and 100°C.
3. Reducing warping requires control cooling, which entails gradual cooling. You can maintain a constant temperature and minimize drafts by using an enclosed printer or a build chamber. Adjusting the fan speed is another effective strategy.
4. While regular brass nozzles should work with polypropylene because of the material's abrasion resistance, using a higher-quality nozzle may result in more consistent prints.

Applications of 3D Printing with Polypropylene

• Living Hinges

PP is perfect for constructing live hinges and other flexible components because of its high fatigue resistance, which lets it bend repeatedly without breaking. Products that require durability and repeated usage, such as clamshell packaging and flip-top caps, are often manufactured.

• Containers

Plastics are ideal for storage containers due to their resistance to various chemicals and their ability to prevent water from penetrating them. This is particularly true for containers used in laboratories or for storing food. Its resistance to sterilizing techniques makes it even more ideal for use in healthcare and scientific research settings.

• Prototypes

The characteristics of polypropylene are quite similar to those of injection-molded PP components, which allows for precise functional testing and accurate prototyping. Because of this, engineers and designers may make prototypes that are almost identical to the final product, which speeds up the product development process and improves the quality of design decisions.

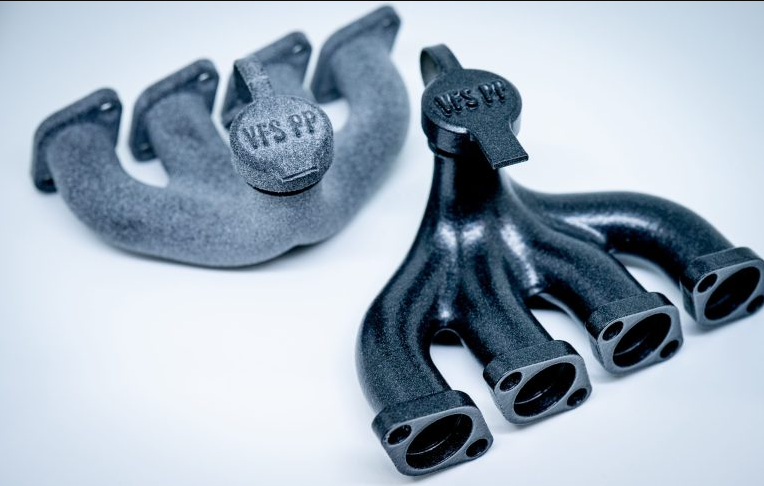

• Automotive Components

Automobile components, like battery housings and interior panels, frequently make use of PP due to its lightweight and long-lasting nature. Its durability and chemical resistance make it an asset to the security and lifespan of vehicles.

• Medical Devices

Some medical uses are appropriate for PP due to its biocompatibility and resistance to sterilization techniques. It finds widespread application in components and devices used in healthcare that must undergo frequent sterilization without deterioration.

Case Study 1: Waters Corporation's Rapid Prototyping

One company that specializes in analytical technologies, Waters Corporation, used polypropylene 3D printing to speed up the prototype process. Their in-house 3D printer cut the prototype time in half, from weeks to only one night. This allowed for far faster design revisions and more efficient product development overall.

Read the full case study: Waters

Case Study 2: Largix's Large-Format 3D Printing

The startup, Largix, of Israel, came up with a manufacturing technology that could 3D print huge polypropylene constructions without melting the material. Making one-of-a-kind tanks to store chemicals was their first use, proving that PP could handle industrial-scale projects.

Read the full case study: timesofisrael

Best 3D Modeling Software

SelfCAD is an intuitive, cloud-based and downloadable 3D modeling program for novice and expert users. Registered users can access SelfCAD through a web browser; licensed users can access additional features from the cloud. SelfCAD enables users to quickly and easily design complicated 3D models because of its user-friendly interface, interactive tutorials, and selection of strong tools.

The portal is a comprehensive solution for diverse design requirements, as it encompasses sculpting, rendering, slicing, and 3D printing tools. Users of the cloud-based platform may easily save and share their work, collaborate in real-time, and view their projects from any location. SelfCAD is an appealing option for anyone looking to discover and unleash their creativity in 3D modeling, thanks to its accessibility, adaptability, and emphasis on parametric design.

Printing Smart with PP

An increasing number of 3D printers are opting to employ polypropylene, a material with many practical applications in manufacturing. Despite issues like warping and poor adherence, it is possible to achieve excellent prints by learning its qualities and using the correct printing procedures. Polypropylene is a great material for prototypes and finished products as it is lightweight, long-lasting, and resistant to chemicals. The use of polypropylene in additive manufacturing has enormous potential, and it will only grow as 3D printing technology advances.
