Key Tips for 3D Printing Threads and Screws

You can make parts that attach without using any metal hardware by 3D printing threads and screws. This can reduce the need for assembly processes, costs, and time. To twist, lock, and adjust, components need threads. 3D-printed threads, on the other hand, require careful consideration of dimensions, print parameters, and design. A lack of preparation might result in threads that are either too tight, too loose, or too weak. Creating, printing, and finishing threaded components is what you’ll learn in this article. To improve the functionality of your results, you will learn actual measurements and configurations.

Understanding 3D Printed Threads and Screws

What Are Threads and Screws in 3D Printing?

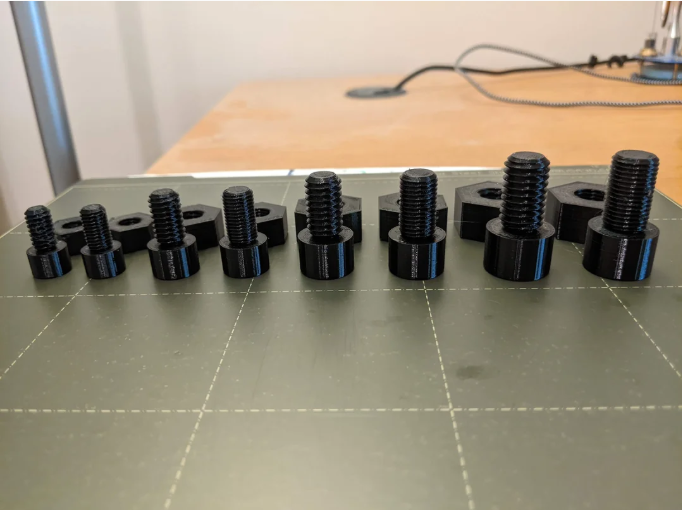

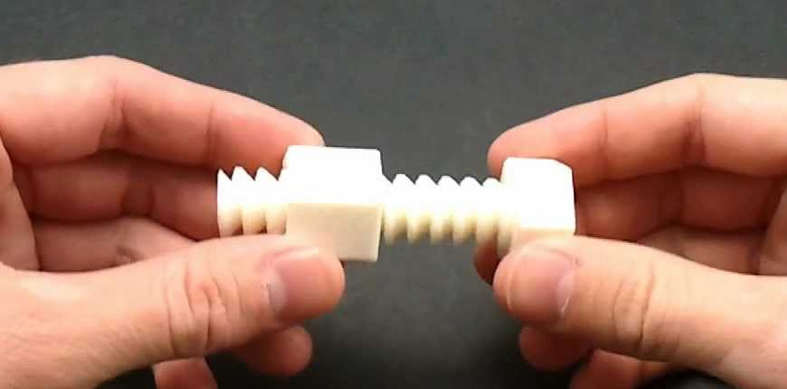

Threads are helical ridges wrapped around a cylinder. They allow screws and bolts to grip. In machining, threads are cut with precise tools. In 3D printing, layers build up slowly. This alters the behavior of dimensions. Thread form is affected by minor inaccuracies in extrusion and layer placement. To ensure proper fit, designers must account for additional space. They either don't turn or bind without it.

Standard Thread Types and Pitch Values

The pitch values used by most 3D printed threads are standard metrics. A 0.5 mm or 0.8 mm pitch is one example of a small screw's dimensions. For larger screws, a pitch of 1 mm or 1.5 mm is optimal. If you plan on using metal screws down the road, these pitches will be compatible with them and with ISO metric standards. It is quite challenging to print properly with FDM at pitches less than 0.5 mm due to the merging of adjacent thread profiles.

Size Limitations of Printed Threads

Standard desktop FDM printers struggle to print fine threads. If you can help it, don't make printed threads smaller than M5 in size. This is due to the fact that certain details may slip through the cracks in the layers. Printing threads larger than M6 is easier in terms of dimensional accuracy. While the increased resolution of SLA and SLS printing makes the possibility of tiny threads more realistic, careful tolerance design is still required.

Designing Threads for 3D Printing: Key Steps to Follow

Allowing Proper Clearances

The male and female threads must have enough clearance to pass one another. To make sure the pieces fit, designers need to leave some extra room. Extra radial clearance of around 0.1 to 0.2 mm on each side between the internal and exterior threads is a typical starting point for FDM. The result is a total diameter gap between the male and female components of approximately 0.2-0.4 mm. Due to the increased precision, resin printing with smaller clearances, such as 0.05 mm, could be feasible. These spaces allow for the possibility of printer inaccuracies and filament shrinking.

Minimum Thread and Hole Dimensions

Printing screws with a diameter of less than four or five millimeters is a significant challenge to practical design. Metal screws, enlarged printed threads, or tapping and inserting are common solutions for these among designers. Because printed holes often shrink, designers typically model them somewhat larger than the target size. For FDM prints, it's best to begin with a hole diameter that's around 0.1 to 0.2 mm bigger than the nominal screw size.

Wall Thickness and Thread Strength

Features with threads need to be robust enough to withstand pressure. To accommodate torque stresses, the wall thickness of a printed boss or nut should be 3–4 mm with 2-3 perimeters. Fragile walls can peel or break. While increasing the number of walls and their thickness enhances strength, it also increases the amount of material and print time required.

The Effective Use of CAD Tools

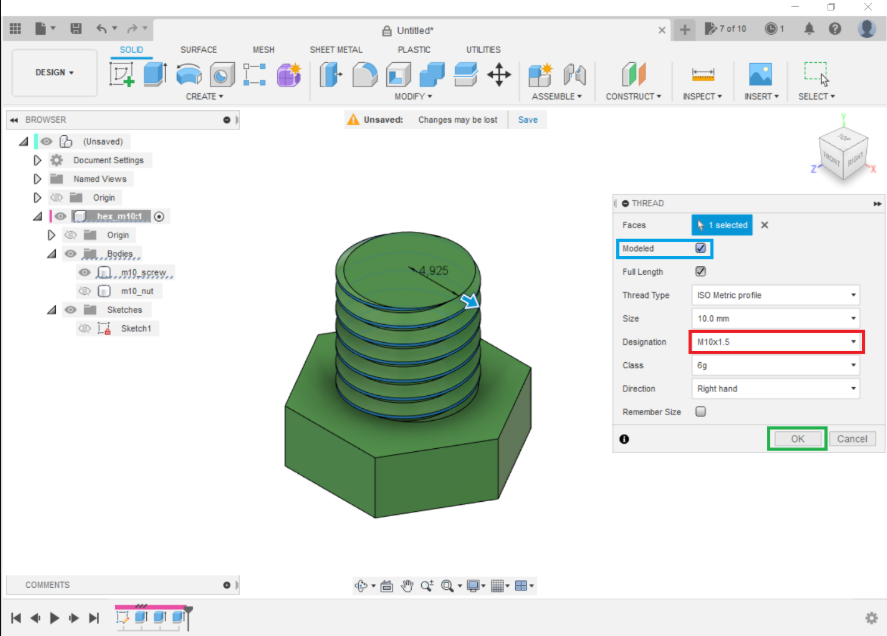

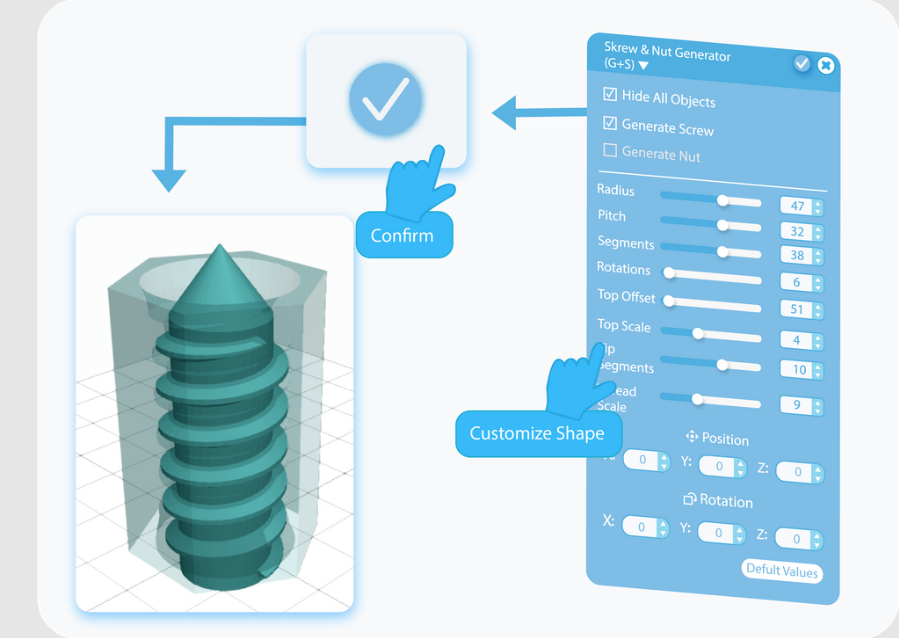

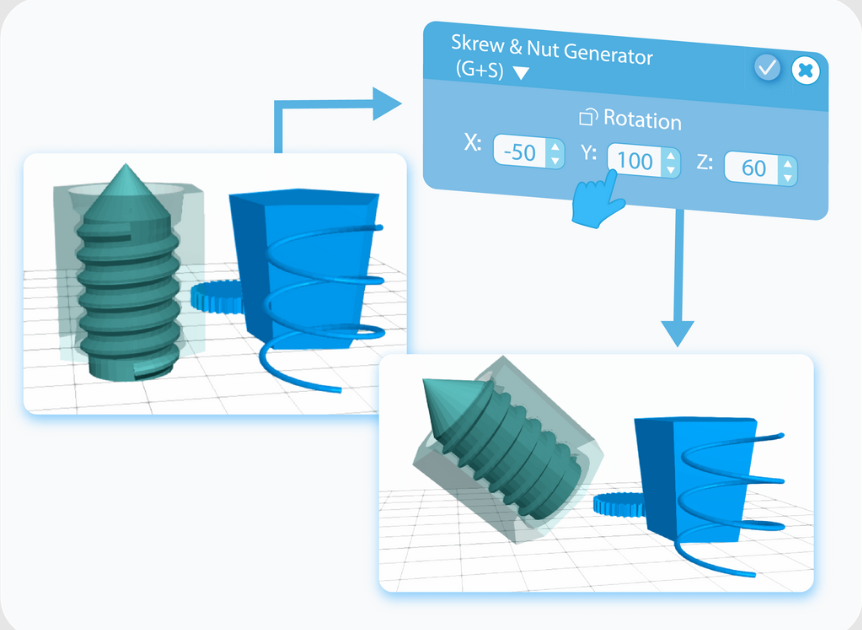

CAD programs, such as SelfCAD is capable of building very accurate models of threads with the help of the Screw and Nut generator. To begin, launch the generating tool and select the desired item: a screw, a nut, or both. Next, specify the thread's tightness and strength by entering dimensions like diameter, length, and thread pitch. Instead of having to manually model threads, the program will provide an appropriate thread profile for 3D printing. Tolerances can be fine-tuned for a better fit with FDM printers. You can edit the created screw or nut just like any other object in SelfCAD. Then, you can export it as an STL file and print it off.

Optimizing Print Settings for Threads

Surface Detail and Layer Height

Accurate, smooth surfaces are essential for thread detail. Reduced layer heights enhance surface quality for fine threads. Compared to coarse layers, layer heights of approximately 0.1 mm or lower are better at capturing thread form. The printed thread will have more refined curves and edges when printed with a 0.12 mm layer height and a 0.4 mm nozzle. Nevertheless, printing with fewer layers takes more time.

Extrusion Accuracy and Flow

Threads shouldn't be too big or too small; adjust the extrusion flow accordingly. Thick, tightly wound threads are the result of over-extrusion. Weak sides and bonds result from under-extrusion. For reliable material deposition, calibrate the flow rate and extrusion multiplier. When the printer is fine-tuned, the thread diameters will remain true to the original CAD file.

Temperature and Material Considerations

Selecting the right material and adjusting the temperature just right improves thread quality. PLA is easy to work with, prints at moderate temperatures, and may produce brittle threads. In order to get strong threads and effective layer bonding, PETG and ABS require higher temperatures. Nylon threads are durable, although they can twist if not properly enclosed. The degree to which your threads shrink and distort is dependent on the filament type.

Print Orientation

For the printed layers to adhere to the helical structure, it is best to align the threads vertically wherever feasible. Reducing the requirement for support and improving surface quality are both achieved by vertical orientation. The use of supports that come into contact with the thread surfaces during horizontal thread printing makes cleanup more difficult and decreases thread accuracy.

Alternatives to Printing Threads Directly

Heat-Set Inserts and Metal Threads

For the strongest results, use metal threaded inserts. The use of heat-set inserts is widespread; designers create an enormous hole in the printed object, and then use heat to melt a brass insert into the plastic, completing the installation. You may screw and unscrew these inserts several times without them breaking. They have robust threads. Parts that take the brunt of the load benefit greatly from them.

Tapping After Printing

You can manually tap the threads after printing if you just print the hole and don't simulate the interior threads. If you want a hole that is approximately 0.2 mm smaller than the diameter you want to tap, that's one example. Using a tap tool that is sized according to your screw, precisely cut threads into the plastic after printing. Even if the printed model was a little off, this still produces clean, precise threads.

Captive Nuts and Press-Fit Methods

Incorporate common nuts into your printed parts by creating spaces for them. Metal nuts can function as threaded inserts by employing these techniques. You can get consistent threads without printing them directly by using press-fit metal nuts or heat-set nuts. If you ever need a lot of power or torque, this is your best bet.

Post-Processing Printed Threads

Cleaning and Smoothing Threads

Lightly sand down any printing-related lumps. This enhances the engagement between printed threads and screws. If you have rough internal threads, you can smooth them off by running a tap over them. For finer pitches, when binding occurs due to rough edges, this is of utmost importance.

Lubrication and Fit Testing

Wax or light oil, which are lubricants, lessen friction and make the thread feel better. To determine if further adjustment is necessary before final assembly, test the screw fit incrementally. You may evaluate the fit and make design adjustments by printing small test parts. When screwing components together, it's helpful to think about the tiny chamfers on the first thread.

Chamfers and Guides

For better initial engagement, make sure to include a chamfer or lead-in to the first thread of both the male and female components. The use of chamfers at the thread start reduces stress and serves as a guide. Initial thread catching and binding is possible in the absence of a chamfer.

Best Practices for Reliable Results

Evaluation Before Final Prints

It is more efficient to print a tiny threaded test section rather than a larger one. Explore several part-to-part distances (0.2 mm, 0.3 mm, and 0.4 mm) to find the one that works best with your printer. The procedure avoids the need for expensive full-part reprints.

Thread Printing When It Isn't Necessary

Printed threads might not be the way to go in every situation. It is common practice to use metal hardware or inserts for threads that are very narrow or that are subject to a high load. The key to designing with longevity in mind is knowing when to employ alternatives.

Regular Calibration Enhances Print Quality

Calibration is the key to better thread quality. Verify the dimensions, nozzle condition, and extrusion settings on a regular basis. Milling threads on a machine that has been fine-tuned ensures more accurate measurements.

Best 3D Printing Software

There are many 3D printing software available that can prepare designs for 3D printing, and a good example is SelfCAD. It is an easy-to-use 3D modeling software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.

SelfCAD also includes powerful 3D sculpting brushes that you can use to create your designs. SelfCAD also comes with an in-built online slicer that you can use to slice your designs and generate the G-code to send to your 3D printer. It also includes interactive tutorials to help you learn how the software works.

Conclusion

Even if it takes time, 3D printing fasteners like threads and screws opens up a world of possibilities for practical design. To get threads that fit well and work reliably, you need precise clearances, the right print parameters, and careful post-processing. With these parameters and data, printed assemblies may be fine-tuned to machine-quality standards with less trial and error.
