3D Printing Props: Everything You Need to Know
As everyone is aware, 3D printing is a reasonably affordable approach to creating accurate movie props. However, the demand for quality props and models is as strong as ever when Ultra High Definition filmmaking shows up on our TVs.
Although conventional production techniques are still in use, digital technologies such 3D scanning, 3D modelling and 3D printing have let modern approaches reach complexity faster than ever before.
Particularly in the sphere of prop and costume design, 3D printing has fundamentally changed the film business. Filmmakers now have more creativity and efficiency because to this technology allowing them to create complex, realistic, and bespoke objects. We review several noteworthy case studies below that show how 3D printing has affected contemporary film.
How 3D Printed Props Have Revolutionized the Film Industry?
1. Improved Accuracy and Adaptability
Conventional prop-building techniques sometimes call for labour-intensive, time-consuming, expensive operations. By letting designers immediately create prototypes and finished things straight from digital models, 3D printing simplifies this. With fast manufacturing capacity, directors may make constant adjustments that would have been too time-consuming and expensive with hand-made props.
2. Unparalleled Design Freedom
3D printing's creative freedom lets filmmakers create detailed and complicated items that could be difficult or unattainable with conventional techniques. This adaptability stimulates imagination and helps designers to realise their most original ideas.
3. Cost-Effective Production
3D printing presents a reasonably priced alternative for prop manufacture for independent filmmakers working on tight budgets. It's a cheap and flexible creative tool for amateur filmmakers since it lessens the demand for costly supplies and labour.
3D Printing Props: The Procedure
Step 1: Selecting a 3D printer
The fundamental first step in prop construction is choosing a suitable 3D printer. Two main categories define printers: SLA ( stereolithography) and FDM (fused deposition modelling). Popular for their cost and simplicity of usage are FDM printers. They create layer by layer items by extruding molten filament. Conversely, SLA printers generate higher resolution prints appropriate for elaborate props by using a resin-based system cured by UV light. Your pick should complement the intricacy of your project, intended level of detail, and budget.
Step 2: Designing or Sourcing 3D Models
Getting a 3D model comes next, once one has a printer. Many web sites have pre-designed models for novices. Customising designs, however, offers flexibility and personalising ability. You need a 3D modeling software like SelfCAD to create 3D models for props. The video below demostrates how the software works.
Step 3: Preparing the Model for Printing
Prepare your model with slicing tools before printing. This application creates printer instructions and breaks down the 3D object into layers. One should give great thought to settings including layer height, print speed, and support systems. For example, a finer layer height increases print time but produces more seamless surfaces. Overhanging sections need supports if they are to avoid sagging. Good slicing guarantees that your design is faithfully reflected in the final print.
Step 4: Printing the Prop
Start the printing process after the model has been diced. Make sure your printer is calibrated; the build plate should be level to prevent adhesion problems. See the first layers of the print to verify correct bed adhesion and filament extrusion. Printing could take several hours to many days depending on the size of the prop. Since rushing might impair quality, patience is quite important.
Step 5: Post-processing and assembly
A raw print becomes a finished prop by post-processing. Start by gently removing any supporting structures to prevent damage to fragile sections. Starting with coarse-grit paper and working towards finer grits, sanding is crucial for flattening layer lines. Apply a primer to accentuate flaws for a precise finish; then, sand further. If your prop is made of several pieces, put them together with suitable adhesives to guarantee joins are tight and aligned.
Step 6: painting and finishing touches
Drawing life into your prop is painting. Their adaptability and simplicity of use make acrylic paints popular. Uniformly apply a foundation coat; then, layer to create realism and depth. While washes can create shadows and weathering effects, techniques like dry brushing can highlight elements. Clear varnish will help to seal the paint thereby preserving the finish and increasing longevity.
Advanced Techniques and Considerations
Advanced approaches like multi-material printing can be investigated for individuals looking to improve their props. This method adds complexity and utility by letting many materials be combined in one print. Including electronic components, such LEDs, might also improve the realism of the prop. The key to successful integration is to account for these factors throughout the design phase at all times.
3D Printed Props: Real-World Applications
1. "Guardians of the Galaxy" (2014): Crafting Complex Costumes
Read full story: hollywoodreporter
3D printing was essential for Marvel's "Guardians of the Galaxy" to realise its distinctive look. To make elaborate costumes and props, the production crew worked with the UK-based company FBFX Ltd. One such is the armour Korath, played by Djimon Hounsou, wears. The design team combined several materials and colours into one print using an Objet500 Connex 3D printer. This capacity allowed the construction of intricate, multi-material components that would have been difficult to manufacture with conventional manufacturing techniques. Using 3D printing not only simplified the manufacturing process but also made quick prototyping and modifications possible, therefore guaranteeing that the final costumes were aesthetically arresting and functionally sound for the performers.
2. "Jurassic World" (2015): Reconstructing Prehistoric Realism
Read full story: creativeblog
Renowned for its lifelike portrayal of dinosaurs, the "Jurassic Park" series was followed by "Jurassic World" by including 3D printing in its prop-making process. Using 3D scanning and printing technologies, the production team highly precisely replicated prehistoric objects. They built precise 3D models by scanning real dinosaur fossils and bones, which were subsequently used to make various props and thorough skeletons. This method improved the genuineness of the movie by enabling the construction of realistic set pieces that added to its immersive experience.
3. "First Man" (2018): Realizing Historical Accuracy
Read full story: contentprop
3D printing was crucial in reconstructing historically authentic props and set elements in the biographical drama "First Man," which follows NASA's effort to land a man on the moon. The production designer built exact copies of the Apollo 11 lunar module and other spacecraft parts using big-scale 3D printing. This method guaranteed close matching of the visual aspects with historical documents and enabled effective construction of intricate buildings. Using 3D printing not only sped up building but also gave the freedom to make exact alterations, therefore helping to realistically depict space travel.
4. "Black Panther" (2018): Innovating Costume Design
Read full story: dezeen
Marvel's "Black Panther" highlighted how 3D printing was used in costume creation, especially to create the ornate headpiece Angela Bassett's Queen Ramonda wore. To create this complex work, the costume designers worked with 3D printing professionals. Using sophisticated 3D printing technologies, the headpiece displayed intricate designs and structures that would have been challenging to construct with conventional procedures, therefore enabling a degree of complexity and precision never possible with other approaches. This method not only improved the character's clothing's visual richness but also proved 3D printing's ability to challenge costume design limitations.
5. "Avengers: Infinity War" (2018): Forging Iconic Weapons
Read full story: bonhams
For "Avengers: Infinity War," 3D printing produced Stormbreaker, Thor's new weapon. The crew at Ironhead Studio created and manufactured the prop using 3D printing to create the hammer in 34 distinct components. Then these elements were painstakingly put together to create the finished prop. This procedure guaranteed that the weapon satisfied the strict standards for visual authenticity and let for exact details. The quick manufacturing of several versions of the item made possible by 3D printing allowed for the demands of the filming schedule and the necessity for stunt-ready duplicates to be met.

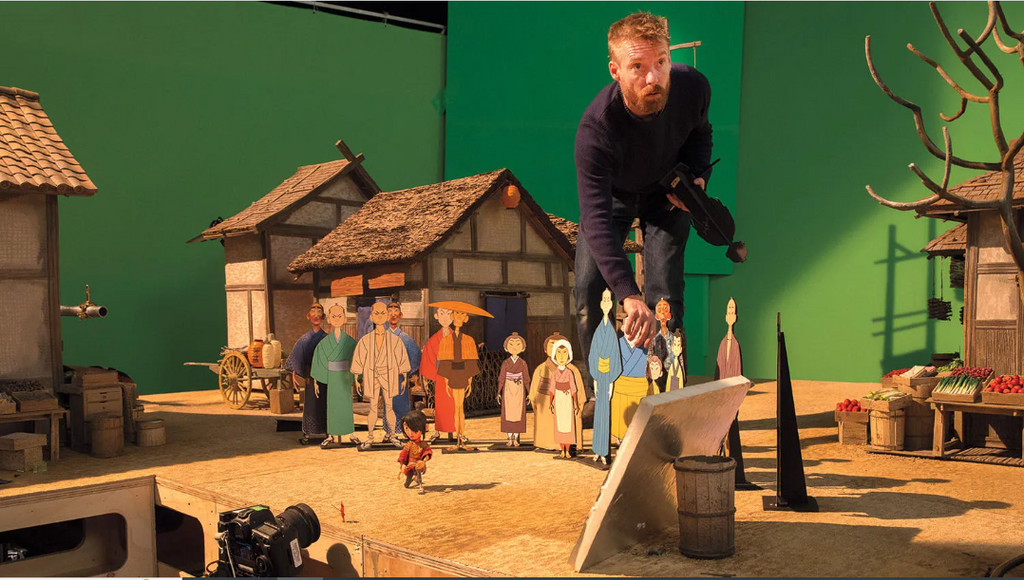

6. "Kubo and the Two Strings" (2016): Enhancing Stop-Motion Animation
Read full story: hollywoodreporter
One especially noteworthy instance of 3D printing's use in stop-motion animation is Laika's "Kubo and the Two Strings". The directors created a wide range of facial expressions for the figures using 3D printing, therefore enabling complex and dynamic performances. The animators could create minute emotional changes by printing thousands of interchangeable facial components, therefore improving the narrative. This method simplified animation and increased creative options for character expression.
Best 3D Printing Software
There are a lot of 3D modeling software available that you can use to prepare your dental designs and prepare them for 3D printing and a good example is SelfCAD. SelfCAD is a powerful 3D modeling software that you can use to create 3D models from scratch or edit existing designs and customize them based on your needs.
In addition to being easy to use, SelfCAD also comes with many resources to help you get started with ease. There are many interactive tutorials to help you learn by actually creating 3D models. There is also a SelfCAD academy for those who like to follow step by step courses. 3D modeling 101 series and 3D modeling for beginners videos on YouTube are also great resources to help you learn how SelfCAD works and how you can use it to create your 3D models.
