3D Printing Body Kit: What You Need to Know

Thanks to 3D printing, connoisseurs of cars may now design unique body kits with unparalleled accuracy and customisation, therefore transforming the game. Many people find that it is more adaptable, faster, and cheaper than conventional manufacturing processes as it generates three-dimensional products from digital files. This all-inclusive blog answers all of your questions along the way as it guides you methodically through the comprehensive 3D-printed car body kit procedure.

3D Printing Body Kit: Why Should Enthusiasts Love It?

A body kit is an innovative way to modify your car's appearance and improve performance. However, traditional body kit procurement and installation might be challenging. Pre-made kits run the risk of not fitting your vehicle, hence compromising safety. Though they are specifically fit for your car, custom-designed kits can be quite expensive and time-consuming to produce.

These issues can deter individuals from trying to personalize their cars, and when they do, they could be let down with store-bought fixes that fall short of their aspirations. Dealing with parts that don't fit, extended wait times, and rising pricing makes the customizing process stressful.

Then along came 3D printing, a revolutionary idea that permanently changed the face of automotive customization. Using 3D printing technology, fans can now design personalized body kit pieces that precisely match their car and capture their own flair. Apart from reducing manufacturing time and costs, this approach ensures a perfect fit. Another big benefit of 3D printing for designers is the capacity to quickly print working models.

This guide will walk you through every stage of 3D printing body kits, from concept to installation. Whether your level of experience with modding is low or high, this guide will teach you all you need to create and install a custom 3D-printed body kit for your automobile.

The Genesis of a Custom Body Kit Project

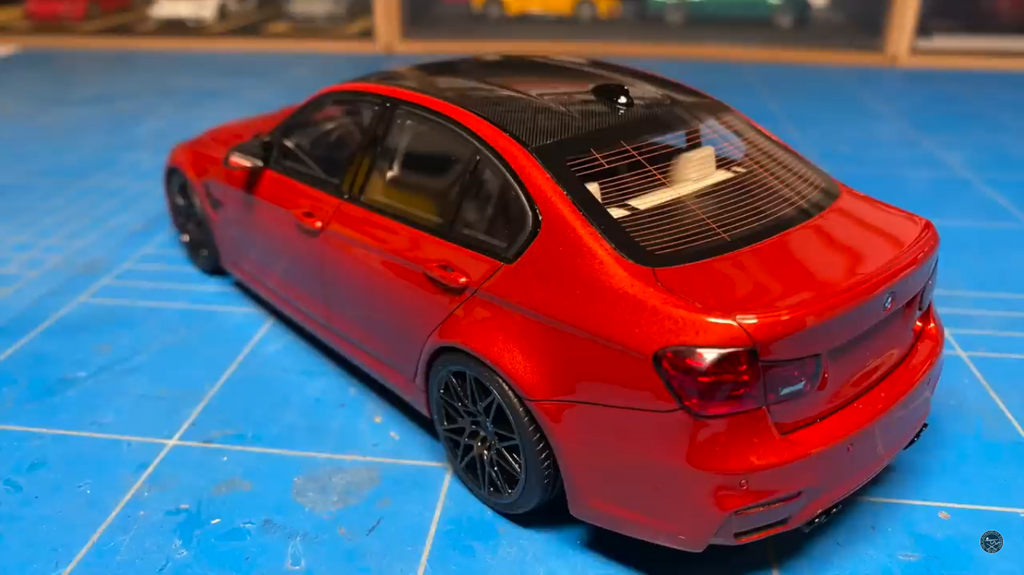

Every journey begins with a dream. For their BMW F80 M3, a customer desired a bespoke body package.

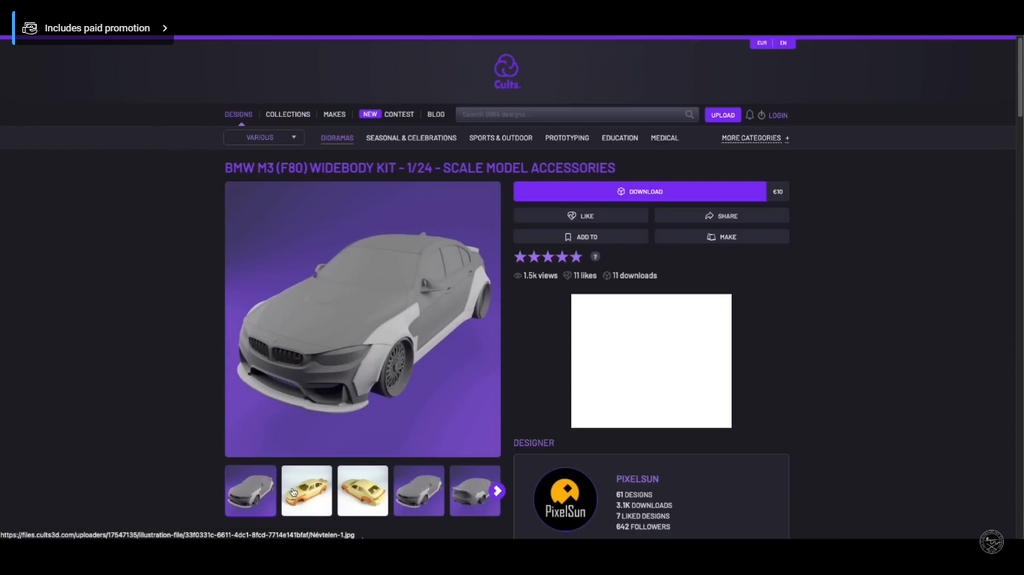

They hired Pixel Sun, a designer on Cults 3D noted for creating original accessories for this model. Two conceivable setups were a sports package with a front splitter and two rear spoilers as well as a super wide body kit.

Once the files arrived, the client trusted a professional to print them.

Step 1: Preparing the 3D Model for Printing

Following acquisition of the digital files, the penultimate step is to prepare them for printing using slicing tools. Regarding slicers, VoxelDance Tango distinguishes itself with its range of features meant to generate the best possible printing outcomes.

Following the upload of your 3D model, the program will examine it carefully from all angles to ensure it is solid and to identify any areas requiring support during printing.

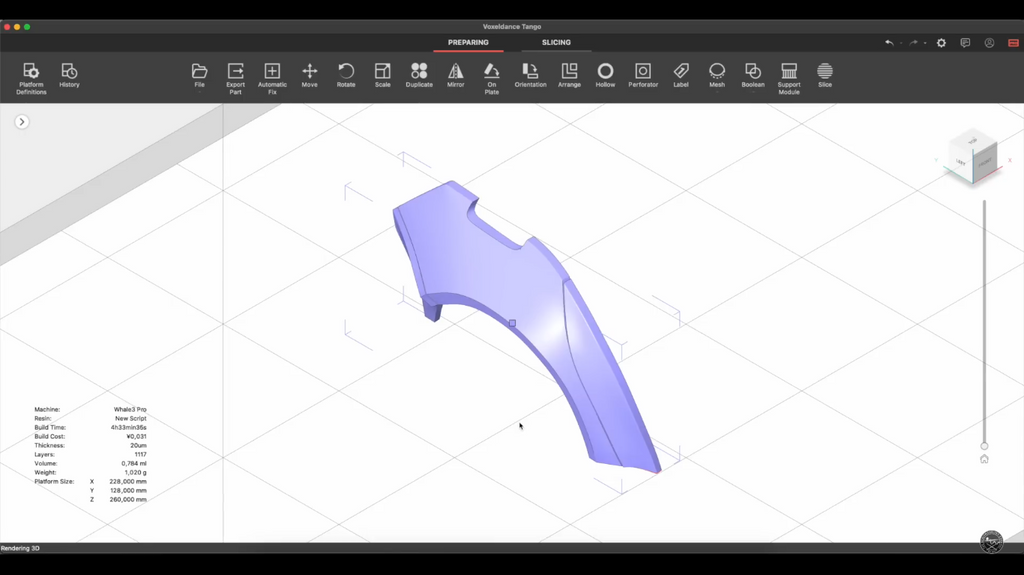

Step 2: Model Orientation

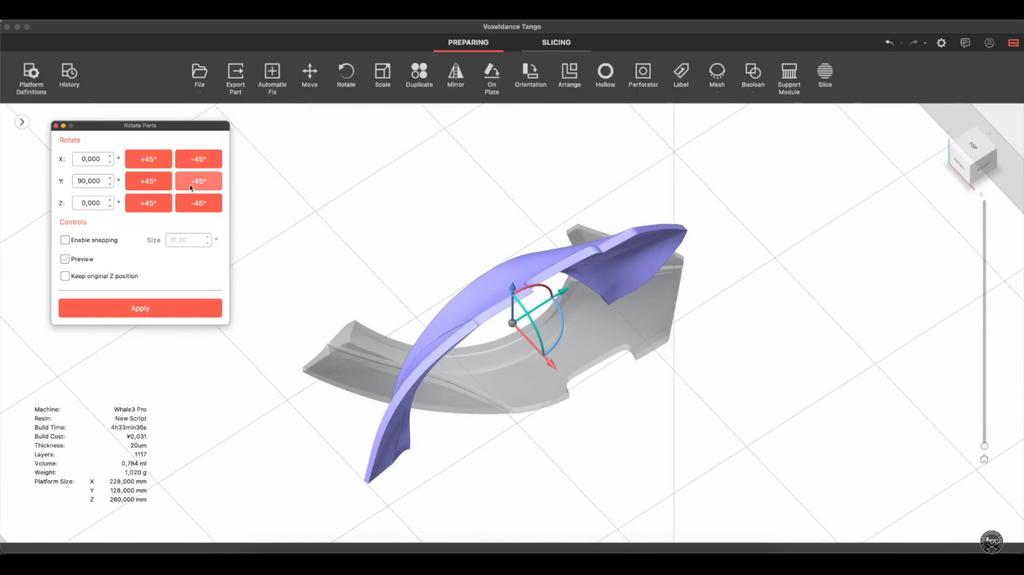

Orientation of the model is quite crucial. VoxelDance Tango provides a ghosted view of where the part is to aid with fine-tuning. By reducing the requirement for supports, appropriate orientation guarantees structural integrity and lowers post-processing work.

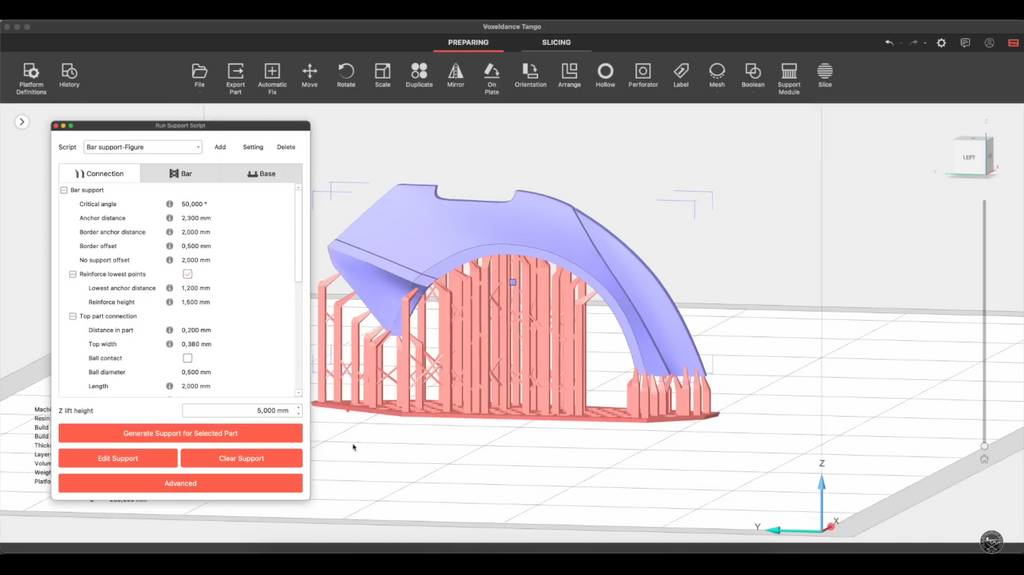

Step 3: Generating Supports

Parts of the model hanging over the edge have to have supporting systems. Especially excellent at precisely positioning supports where they are required without adding extraneous ones is the automated support generating capability of VoxelDance Tango. Although hand examination and modification of the supports is ideal, most times the program makes this simple.

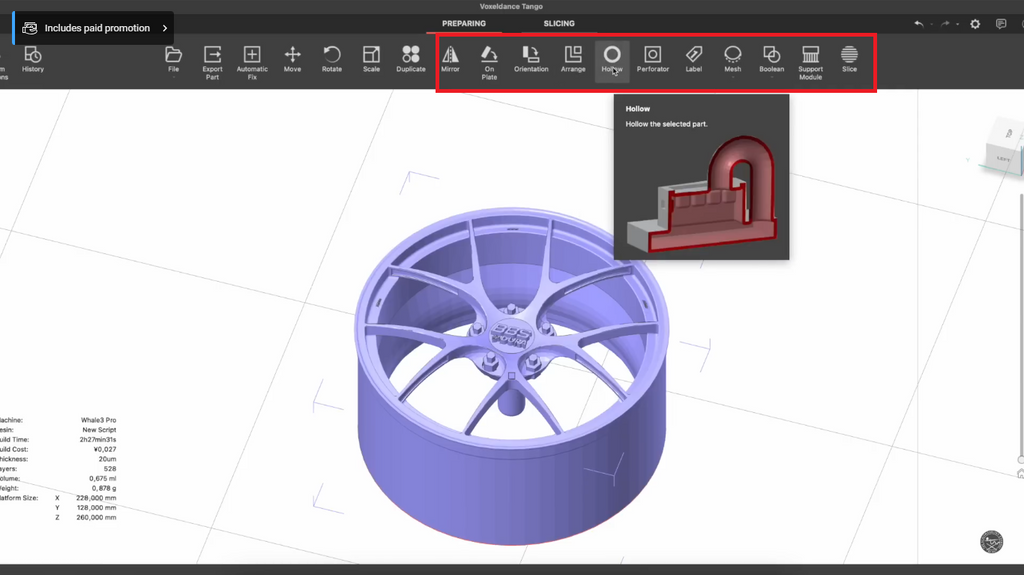

Additional Features of VoxelDance Tango

To cap it all, VOxelDance Tango offers:

One-Click Repair tool (Arrange): The One-Click Repair tool lets you solve common issues including rough edges, holes, and misaligned sections, thereby preparing the model for printing.

Shelling and lattice structure (perforator): This feature's shelling and lattice structure produce reduced material use and printing time, better part strength, and minimal deformation.

Fast Slicing (mesh): Cutting down on pixel lines and increasing anti-aliasing in photos, the optimized algorithm accelerates the slicing process, hence improving print quality.

Nested Arrangement (Boolean): Working on projects with multiple components, this program automatically places items on the build plate for efficient space use and printing.

Label Function: Labeling every one of the many identical components you are working with will help ensure that the building process runs without a hitch.

Step 4: Picking Out a 3D Printer

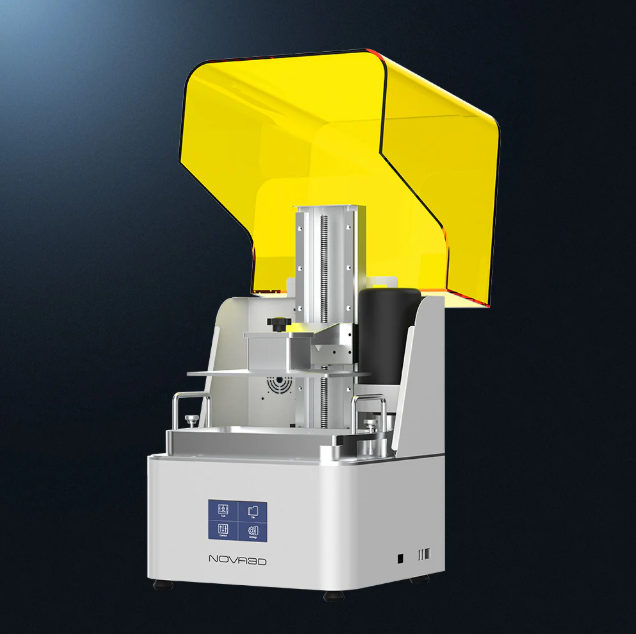

The output is largely influenced by the printer chosen. This endeavor made use of the Nova 3D Whale SE3. Though Tango does not have native support for this, the process includes exporting the created STL files from VoxelDance Tango and then importing them into the printer's custom slicer for final processing.

Step 5: Processing the Print Job

Printing might start once all is ready—including the model and the printer. The size and complexity of the part will determine how many hours or more printing takes. To avoid any issues arising, it is imperative to maintain a close eye on the operation.

Step 6: Post-Processing: Cleaning and Curing

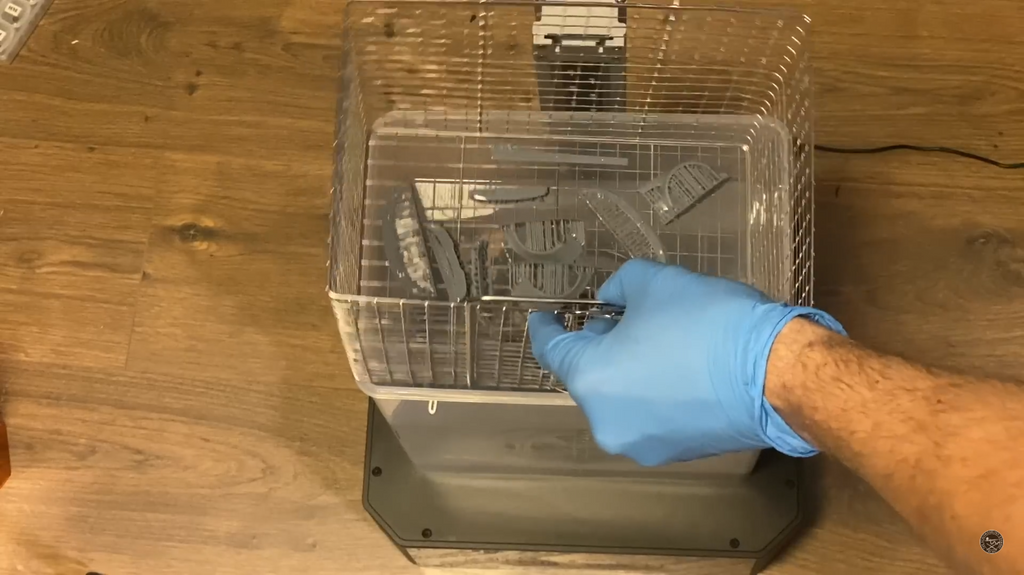

Remains of resin coatings demand thorough cleaning of printed goods. It all begins with running the uncured resin under isopropyl alcohol. Build plates are getting bigger, thus it could be necessary to remove components off the plate before cleaning, especially in circumstances where they are too big to fit into traditional cleaning stations. To get any final residue off the object one last time, rinse it with fresh alcohol following the first one. Use a hairdryer or fan to hasten the drying process; but, let the pieces air dry totally.

Step 7: Eliminating Support

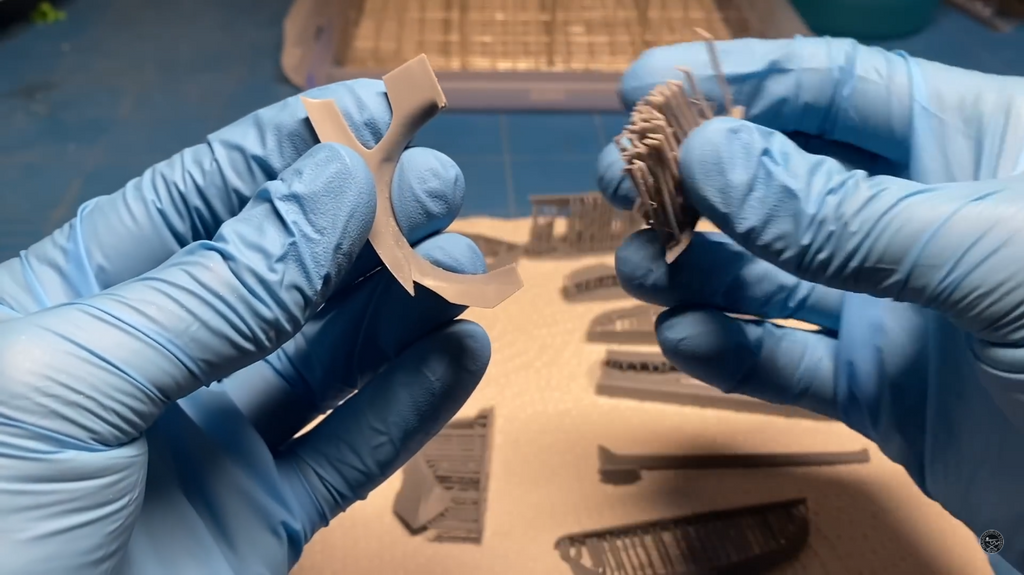

You may remove the supports once everything has dried. Designing VoxelDance Tango supports first considers easy removal, thus they usually detach easily and injure the part no more. Still, the finishing process calls for filling in some minute imperfections like holes or bulges.

Step 8: Curing Time

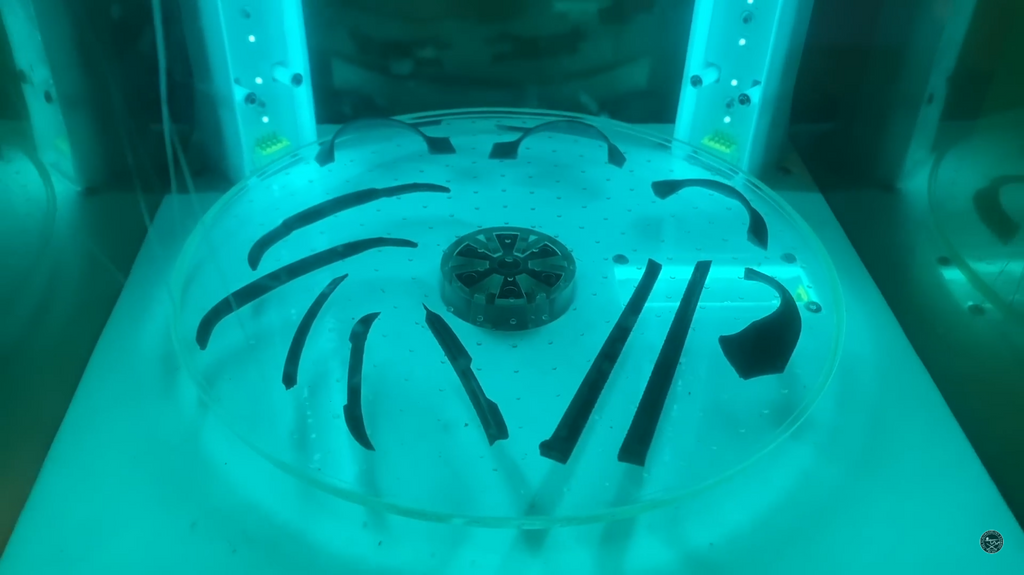

The resin hardens after curing, therefore strengthening the component and increasing its lifetime. Put the parts in a UV curing chamber for around five minutes on both sides to ensure total cure.

Step 9: Assembly and Sanding as Final Touches

After curing, check the parts for any residual defects. Using appropriate tools, gently sand the area to eliminate any last artefacts from support removal. By installing supports in less evident locations, one can aid to minimise the finishing requirements.

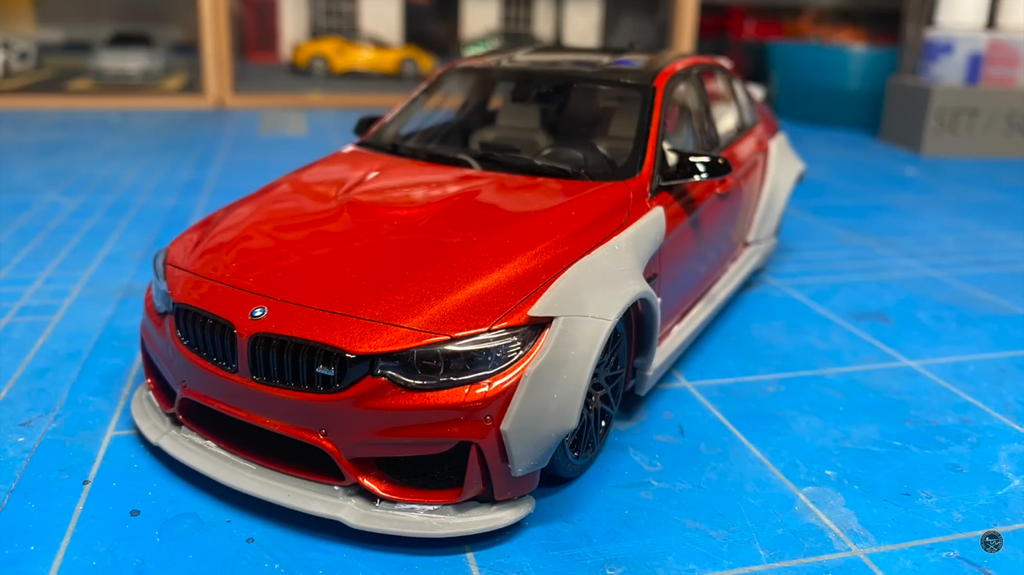

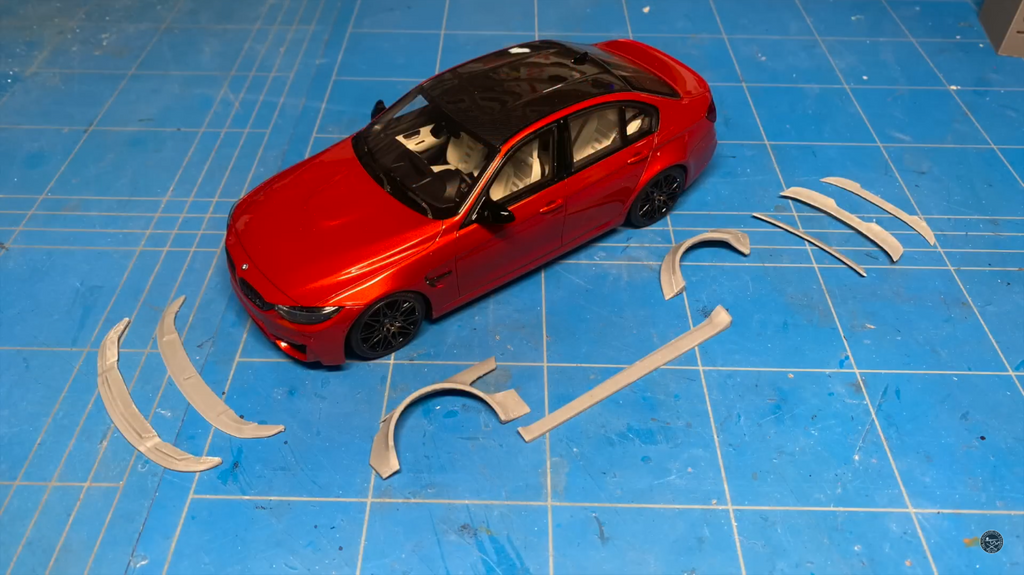

When you're comfortable with the surface quality, test fit the components to ensure they match the present model.

Best 3D Printing Software

There are many 3D printing software available that can prepare designs for 3D printing, and a good example is SelfCAD. It is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.

There are also easy-to-use selection modes as well as various modification tools to help you modify your designs based on your requirements. The software comes with a built-in online slicer that one can use to prepare designs for 3D printing. The video below shows how to slice STL files and generate the G-code to send to the 3D printer. The video below shows the overview of the software.

Conclusion

Although creating your own 3D-printed body kit calls for patience and meticulous attention to detail, the result is well worth it. Simplify the process and produce original, high-quality automotive components with creative tools like VoxelDance Tango and dependable printers like the Nova 3D Whale SE3. With minimal thinking, exact attention to detail, and patience, car aficionados may raise the appearance and performance of their automobiles to professional standards.
