3D Printer Ringing & Ghosting: Causes and How to Fix
One of the most crucial aspects of 3D printing is the surface quality. Having clean lines and crisp corners gives prints an air of professionalism. Yet, a common complaint from customers is the appearance of ringing and ghosting on printed materials. After writing, embossed features, or sharp corners, these patterns typically show up.
Despite how bad the problem appears, it is usually really simple to resolve. Modifying the printer's stability or motion settings is usually the way to fix it. This manual provides an in-depth analysis of ringing, including its origins, symptoms, and possible remedies. The values and settings are accurate and often used by printers.
What Is Ringing or Ghosting in 3D Printing?

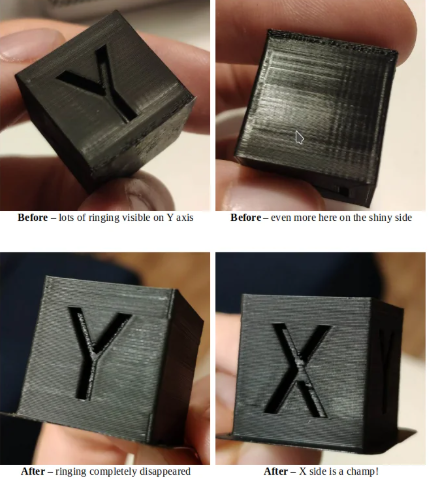

Surface artifacts such as ringing or ghosting show up as repetitive ripple patterns on 3D printed objects. Ripples like these tend to crop up close to edges, lettering, logos, or corners.
The image depicts dwindling waves that appear to be reflections of the initial form rather than a spotless wall. The further away from the corner you go, the less powerful the ripples get.
This occurs due to the fact that the printer is unable to immediately halt while changing directions. Vibrations from the motion system persist for a brief period. The nozzle maintains depositing filament as the tremor persists. Waves in the printed layers are a visible manifestation of the vibration.
These flaws stand out the greatest on level surfaces. Glossy filaments and darker materials can make them more noticeable.

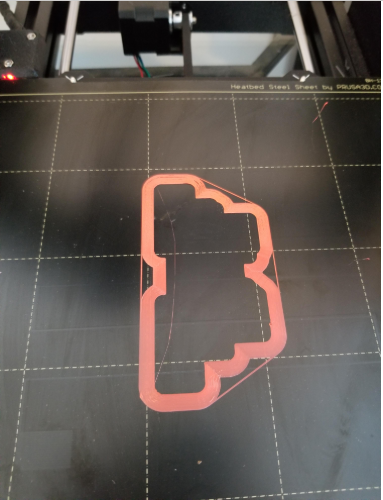

How to Identify Ringing in 3D Prints?
You can see a few telltale indicators of ringing. It is easier to detect the problem swiftly if you can recognize these patterns.
Here are some common symptoms:
- Patterns of ripples following abrupt edges or corners
- X- or Y-axis wave patterns that appear repeatedly
- Lines that reverberate off of raised logos or text
- Departing from corners, fading waves
- Flat surfaces with lines that are parallel to the printer's axis of rotation

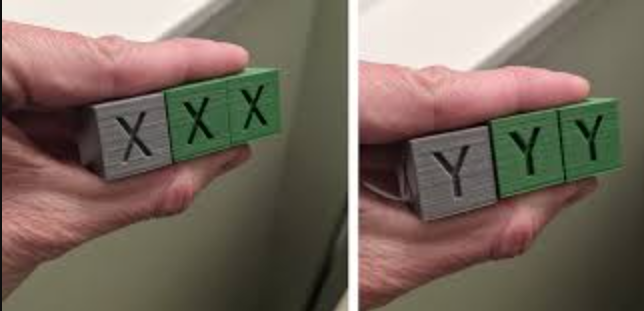

In the case of a cube with sharp edges, for instance, the ringing effect would manifest as lines that repeat themselves from those points.
After a few millimeters, the artifact usually fades. Among the most straightforward methods of detecting ringing is this fading pattern.
Why Ringing Happens in 3D Printers?
The vibrations in the printer's motion mechanism are the cause of the ringing. The print head experiences mechanical oscillations due to inertia whenever it moves rapidly and abruptly changes direction.
Vibration gets more pronounced with increasing mass and velocity.
This trembling could be due to a number of software-related or mechanical issues.
Main Causes of Ringing and Ghosting
1. High Print Speed
An issue with print speed is a typical reason for ringing. When you move more quickly, the forces acting on the printer frame get stronger.
Rapid reversal and stopping are required whenever the print head approaches a corner while traveling at high speed. Because of the abrupt halt, the frame, belts, and motors are all vibrating.
To lessen ringing, the usual print speed ranges are:
- Outer wall speed: 30–50 mm/s
- Normal wall speed: 40–60 mm/s
- Speed of infill: 60-80 mm/s
Acceleration can amplify vibrations and surface imperfections. Print quality and motion smoothness are both improved at slower rates.
2. High Acceleration Settings
With acceleration, you can dictate how fast the printer will go up to its desired speed.
Overly high acceleration causes the printer to start and stop abruptly. The motion system experiences intense oscillations as a result of this.
The following acceleration levels are typical for home printers:
- 500–1000 mm/s² for smooth prints
- 1000–3000 mm/s² for balanced speed and quality
- quicker printing at 3000-5000 mm/s², but with a greater potential for ghosting.
Corner quality and vibration reduction are both enhanced by using lower acceleration levels.
For instance, at speeds of 300–400 mm/s², certain printers exhibit almost no ghosting, but speeds beyond 700 mm/s² could lead to noticeable abnormalities.
3. High Jerk Settings
The printer's jerkiness is defined by how quickly it changes direction.
Jerk values that are higher enable rapid acceleration and deceleration. This increases mechanical shock but decreases print time.
Common jerk values utilized by numerous printers consist of:
- For effortless motion, 8-12 mm/s
- Printing at a quicker rate (10-20 mm/s)
- Velocity above 20 mm/s could induce violent shaking.
Smoother movement and less ghosting are the results of lower jerk values.

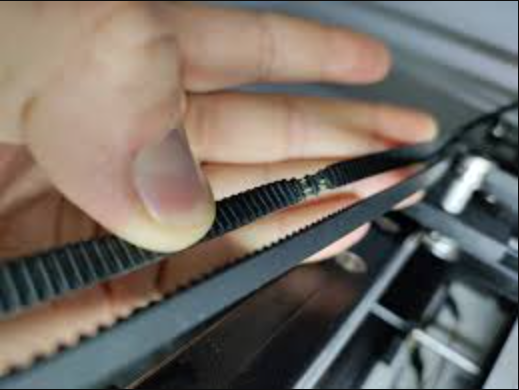

4. Loose Belts
You can manipulate the X and Y axes with the use of belts. When belts aren't tight, the motion system has more slack.
Whenever the printer flips the page:
- The belt stretches slightly
- The carriage overshoots the target position
- The system oscillates before stabilizing
Patterns of ringing appear on the printed surface as a result of this oscillation.
For precise printing, it is essential to check the belt tension regularly.
5. Loose Frame or Mechanical Parts
For accurate motion, a stiff frame is necessary. The printer will not stay upright if any of its structural components are loose.
Parts that tend to loosen up frequently are:
- Mounts for stepper motors
- Fasteners for the frame
- Print head carriage
- Bed leveling springs
Amplification of vibration and ghosting can result from even minor changes in these areas.
6. Unstable Printer Surface
Additionally, the printer's sitting surface influences vibration.
Instability in a table or a desk might make movement more noticeable. A single shift of the print head has the potential to jolt the whole assembly.
To lessen the tremor:
- Secure the printer to a sturdy table.
- Make use of pads that absorb vibrations
- Stay off soft floors and uneven surfaces.
The printout will be of much higher quality with a solid foundation.
How to Fix Ringing in 3D Prints
There are a number of doable solutions that can alleviate or eradicate the issue if its source is located.
1. Lower the Printing Rate
The printer's mechanical components are less stressed at slower print speeds.
Some suggested speeds for printing without smudges are:
- Outer walls: 30–50 mm/s
- Inner walls: 40–60 mm/s
- Infill: 60–80 mm/s
The printer needs extra time to stabilize after changing directions, so printing slowly helps with that.
2. Reducing Acceleration Levels
Smoothing out printer motion is possible by reducing acceleration.
An example of a common starting value is:
- for high-quality printing 500-1000 mm/s²
- 1500 mm/s² to achieve a steady state
When the ringing persists, lower the value little by little until the surface is completely smooth.
3. Fine-Tune Your Jerk Setup
Fewer jerks means smoother transitions.
Settings for recommended jerks:
- Wall jerk: 8–15 mm/s
- Travel jerk: 10–30 mm/s
- Infill jerk: 10–25 mm/s
Even little adjustments can have a big impact.
4. Tighten Belts and Mechanical Components
If you want better print quality, get your mechanics checked out.
See to it that the following components are secure:
- belts along the X- and Y-axes
- Fasteners for the frame
- Mounts for stepper motors
- Carrier bolts for extruders
The use of a stiff motion system greatly lessens vibration.
5. Stabilize the Printer
You can solve a lot of vibration issues by making your printer more stable.
Some useful solutions are:
- Using a sturdy workstation to support the printer
- With the help of rubber vibration dampers
- Substrate installation beneath the printer
- Preventing table instability
Improvements in stability, no matter how little, can lessen ringing.
6. Enable Input Shaping
There are vibration compensation tools in modern firmware systems.
Some firmware features include input shaping, including:
In order to eliminate printer vibrations, this function analyses them and modifies motor signals accordingly.
For high-speed printing in particular, input shaping can drastically cut down on ringing.
Recommended Settings to Reduce Ringing
For the most part, FDM printers are compatible with these settings.
Variables for Speed
- Entire exterior: 30–50 mm/s
- Inside, 40-60 mm/s
- Rate of infill: 60-80 mm/s
Acceleration
- print quality at 500-1000 mm/s²
- for optimal efficiency, 1000–2000 mm/s²
Jerk:
- 8-12 mm/s for prints that are smooth
- Quicker printing at speeds of up to 20 mm/s
These numbers serve as solid foundations. A little tweaking may be necessary for each printer.
Avoiding Ringing in Your Future Prints
It is easier to prevent ringing than to correct it afterwards.
There are a few routines that can keep printouts looking good:
- Keep your printer serviced on a regular basis
- Make sure the belts are taut.
- Twist the frame screws every so often.
- Stay away from printers with very fast speeds.
- Keep your work surfaces level.
- Verify the settings for acceleration and jerk
It is also helpful to run calibration prints. You can find the optimal motion parameters with the use of several slicers' acceleration or speed tower tests.
