Causes and Solutions to 3D Printer Oozing Before Printing: Causes and Solutions
Frustratingly, some 3D printers tend to leak filament even before the print starts. Even as the first layer begins to melt, you can see plastic trickling from the heated nozzle as you start the work. In addition to sticking to the nozzle and dragging over the bed, this excess filament can also damage adhesion and cause blobs on the sculpture.
Some oozing before printing is actually rather common in FDM and FFF 3D printing. The filament inside the heated nozzle undergoes softening due to the combined effects of gravity pulling it downward and pressure within the melt zone pushing some material out. When the oozing gets out of hand and starts to degrade print quality, problems arise. This guide provides an easy-to-understand breakdown of the root problems and the best ways to fix them.
Is It Normal for a 3D Printer to Ooze Before Printing?
A little oozing is quite natural. The inside plastic melts as the nozzle gets hot enough to print. Some filament may drop out slowly due to the small but open nozzle hole.
As the nozzle heats, many users find that a thin string dangles from it. Materials like PLA, PETG, ABS, and TPU do this frequently. The wider the opening of a larger nozzle, the more ooze it can produce compared to a smaller one. 0.6 mm or 0.8 mm nozzles are preferable.
Assuming the ooze is as small as a single hair and eliminated by the purge line or skirt, it is typically not cause for alarm.
When Oozing Becomes a Problem?
When filament accumulates on the nozzle before the initial layer, oozing becomes an issue. When the printer leaves blobs on the bed or drags the filament during bed leveling, it might also be an issue.

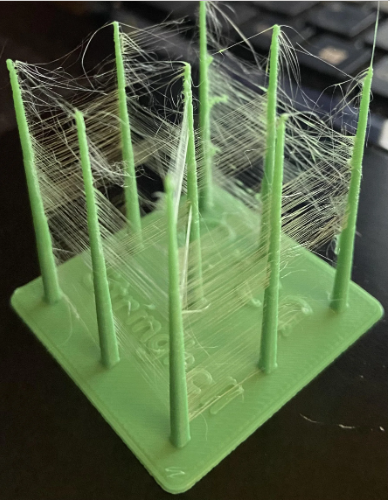

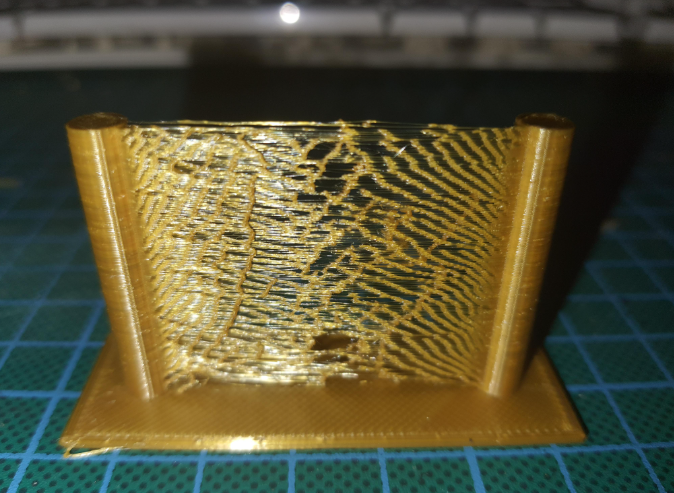

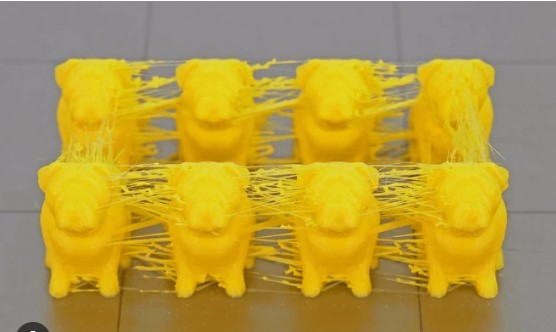

Some things you might see include sloppy corners, strings running across the model, unsuccessful starts, and poor first-layer adhesion. You may need to tweak a few settings if this occurs frequently.
Main Causes of 3D Printer Oozing Before Printing
1. Nozzle Temperature Is Too High
A lot of people do this for this reason. Due to filament thinness and overflow, nozzle temperatures above what is necessary cause the material to flow too freely. While the nozzle is waiting and the temperature is rising, it escapes more quickly.
To illustrate the point, if your PLA prints effectively at 200°C, heating it to 220°C might result in excessive dripping. When heated to excessive temperatures, PETG also has a reputation for leaking.
2. Retraction Settings Are Incorrect
Retraction causes a small retraction of the filament during travel motions. This reduces heat in the combustion chamber. The plastic melts and continues to push out of the nozzle if the retraction is inadequate.
At the conclusion of the prior publication, retraction is also important. There may be excess ooze in the nozzle at the beginning of the following print if pressure relief does not take place.

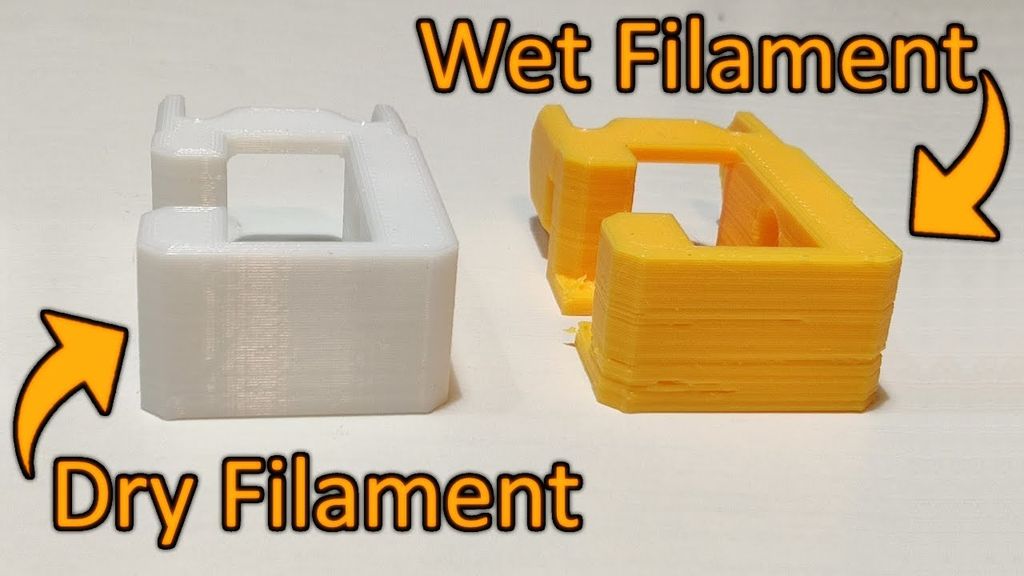

3. Filament Has Moisture
Filament that is wet can make oozing worse. When water evaporates inside the hotend, it creates steam. Unpredictable plastic outgassing may result from the resulting bubbles and irregular flow.
Rough extrusion or popping noises are other possible symptoms. It's possible to soak up airborne moisture with PLA, nylon, PETG, and TPU.
4. Nozzle Sits Hot for Too Long
The filament will continue to melt and drop even after you manually preheat the printer for a few minutes.
Bed leveling, surface cleaning, and file preparation are common precedences for many users after preheating. While this is happening, the nozzle can keep leaking.
5. Poor Hotend Assembly or Internal Gap
Incorrectly tightening the nozzle and heatbreak could cause plastic to pool inside the hotend. There is a rise in oozing and an increase in inconsistent pressure behavior. Threads or the area around the heater block can be potential entry points for filament leaks.
Stable extrusion and clogs are additional consequences of a poorly built hotend.

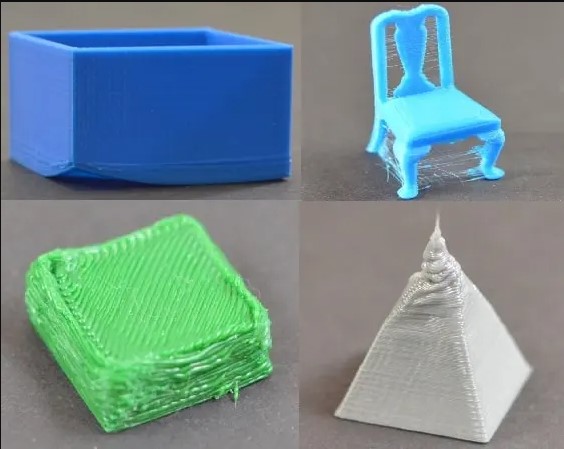

6. Heat Creep
Heat creep occurs when the hotend's temperature rises to dangerously high levels. The filament softens at a faster rate than expected. Blockages, edema, and uncontrolled oozing can result from this.
A weak, obstructed, or unclean hotend fan, or a very hot enclosure, is a common cause of this problem.
How to Fix a 3D Printer Oozing Before Printing?
1. Lower the Nozzle Temperature
Cool down in increments of 5 degrees Celsius. Retake the test.
Instead of using 210°C for PLA printing, consider 205°C or 200°C. The viscosity of the filament increases with decreasing temperature, making it less likely to drop. Layer bonding should not become weak if you go too low. Extrude at the lowest possible temperature while maintaining adequate layer adhesion.

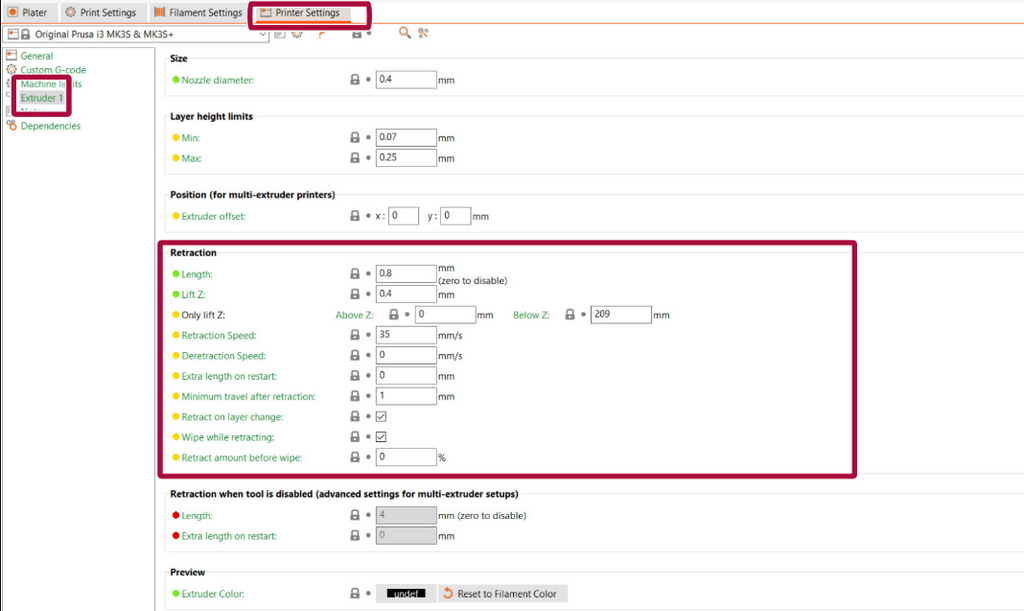

2. Tune Retraction Settings
Slowly but surely, raise the retraction distance or speed. Compared to Bowden systems, direct drive printers often require less retraction.
Use 0.5 mm to 2 mm in a direct drive arrangement. Some designs may call for 3 mm to 6 mm for a Bowden system. Never make a major change without first testing it properly.
Careful adjustment is required to avoid clogs or grinding caused by excessive retraction.
3. Dry Your Filament
Place desiccant-lined containers with sealed lids to store filament. Before printing, make sure the spool is dry if it has absorbed any moisture.

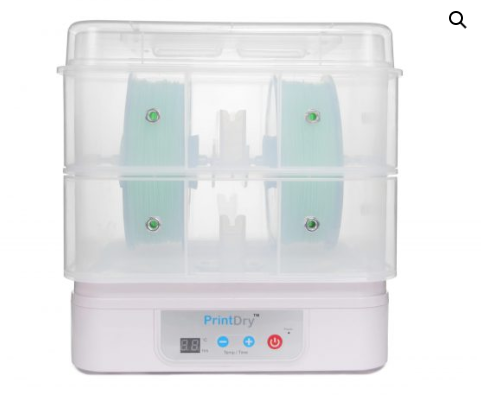

A lot of people are careful when using food dehydrators, filament dryers, or low-temperature ovens. Typically, dry filament tends to produce less slime and cleaner prints.
4. Change Start G-Code Heating Sequence
A highly efficient solution is to heat the bed separately from the nozzle.
Before printing, some slicer profiles only partially heat the nozzle. After waiting for the bed, they raise the temperature just before printing. As a result, the nozzle doesn't stay fully heated and idle for as long. As a result, there will be less runoff before printing begins.
5. Add a Prime Line or Purge Line
Prior to starting the model, a prime line pushes new filament along the bed's edge. This stabilizes pressure while clearing out old goo.
Quite a few slicers already employ this strategy. Including one in the start G-code can be a lifesaver if your printer doesn't.
6. Use a Skirt
Before beginning the first layer, a skirt is printed one or more iterations around the model. Before touching the component, this helps remove any residual oozing and verifies that the bed has adhered.
Many people find that a two-or three-line skirt fixes their clumsy starts.
7. Clean the Nozzle Exterior
The melted plastic surrounding the nozzle has the potential to trap fresh goo and transfer it to the print. Use printer-specific brass brushes or other safe instruments to clean the nozzle while it's still warm.
In order for any little leak to fall away cleanly, make sure the nozzle tip is clean.
8. Inspect Hotend Assembly
Make sure the installation is correct if the difficulties began after you changed the nozzle.
As you hot-tighten the nozzle in accordance with the manufacturer's instructions, be careful that it seats correctly against the heatbreak. Leaks and unsteady flow are common results of melt path gaps.
9. Improve Hotend Cooling
You need to check that the hotend fan can spin freely and turn on as needed. Take out the dirt and trash. Fix fans that aren't working properly.
Proper cooling minimizes heat creep and maintains the melt zone in its proper location.
Best 3D Modeling Software for Education
As we discussed in 3D Printer Oozing Before Printing: Causes and Solutions, it is important to let you know about the best 3D modeling tool. SelfCAD is one of the best 3D modeling software options for both beginners and professionals. After preparing your files, you can use the built-in online slicer in the software to slice them and generate the G-code to send to your 3D printer.
In addition to being easy to use, SelfCAD also comes with many interactive tutorials to help you learn how the software works.
Conclusion
You should expect a small amount of nozzle drip before printing. Dangling drops are not. High temperatures, damp filament, inadequate retraction, extended preheating time, or problems with the hotend are the most common causes of excessive oozing.
Make quick work of the easy problems. Cool down the nozzle just a tad. Rinse the thread. After the engine has started up, heat the nozzle. Make use of a skirt or purging line. Hardware inspections and retraction tweaking will follow. After the printer has been fine-tuned, you should notice cleaner prints, better first layers, and reduced filament waste.
