3D Printed Rocket Engine: Everything You Need to Know

There are many benefits to using 3D-printed rocket engines instead of older, more conventional methods, which have increased output. Using this process, complex components for rocket engines may be mass-produced, which would have been extremely difficult, if not impossible, to achieve using traditional methods. Materials with a lengthy shelf life, like metallic alloys, offer the performance and reliability needed for space missions. Weighing the pros and cons of 3D-printed rocket engines and discussing their potential uses in space travel, this article explores the complexities of these engines.

What Rocket Parts Are 3D-Printed?

As far as Anderson is concerned, 3D-printable rocket components include engine nozzle bells, oxidizer tanks, propellant tanks, outer rocket bodies, and piping components. Also included are the combustion chamber, injectors, pumps, and valves.

He went on to add that components lacking in durability or precision wouldn't be ideal candidates for 3D printing.

However, conventional manufacturing may be your only option if your product is sensitive to certain temperatures, chemicals, or strengths; if its dimensions make it hard to incorporate critical components; or if the levels of consistency or tolerances are too high for a printer to handle (without extensive finishing).

We still haven't mastered the art of 3D printing rockets.

Rather than printing out complete rockets, "most companies at this point seem more interested in how best to integrate 3D printing into their [existing] workflows," Hoffman pointed out.

The old question of what can be printed has been replaced with the new one of what should be printed to maximize value due to the significant advancements in technology.

5 Things You Never Knew About 3D Printed Rocket Engine

1. Pioneering Use of Superalloys

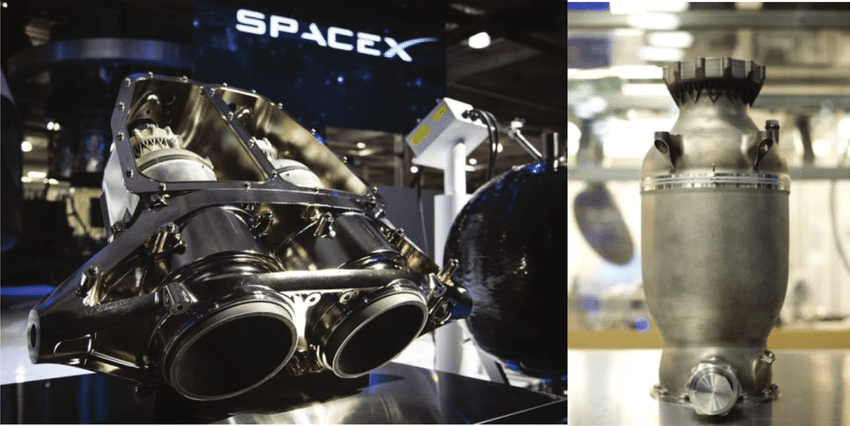

In its combustion chamber, SpaceX's SuperDraco was an early 3D-printed engine that utilized Inconel, a nickel-chromium superalloy. Because of the materials used, the engine can endure extreme heat and pressure. Thanks to 3D printing, engineers can now make intricate engine parts out of Inconel that are both lightweight and durable.

2. Rapid Prototyping Accelerates Development

Rapid prototyping using 3D printing has drastically cut down on rocket engine development times. Take Relativity Space's Stargate printer as an example. It's capable of producing components on an enormous scale, and building an entire rocket takes less than 60 days. You might be able to go from design to launch faster with this rapid prototyping capacity because it enables for quick iterations and testing.

3. Efficient Manufacturing

Thanks to 3D printing, rocket engines are now more affordable and accessible than ever before. Students from the University of California, San Diego, spent about $6,800 to design, build, and test a 3D-printed rocket engine. Because of this low price point, smaller companies and academic organizations can participate in aeronautical research and development.

4. Enhanced Performance Through Innovative Designs

One example of how additive manufacturing allows for innovative engine designs is the 3D-printed Rotating Detonation Rocket Engine (RDRE) that NASA produced. The RDRE is more efficient and produces more thrust than conventional engines because it uses supersonic combustion processes. The inherent design flexibility of 3D printing technologies enables these developments.

5. Advantages for the Environment

3D printing's accuracy helps reduce resource wastage in manufacturing. Adding material layer by layer is the hallmark of additive manufacturing, as opposed to the traditional subtractive procedures that often lead to substantial material loss. Because of this efficiency, production has less of an adverse effect on the environment and costs less overall.

3D Printed Rocket Engine: How They Are Made?

Selective laser sintering (SLS) and directed energy deposition (DED) are our main areas of interest in this area.

Selective Laser Sintering (SLS)

The process of selective laser sintering (SLS) uses a laser beam to slowly fuse powdered materials together, resulting in solid shapes. The initial step is to divide a computer-aided design (CAD) model into thin cross-sections. These pinpoints direct the laser beam to sinter the powder uniformly across the building platform. Lowering the platform and adding a new layer of powder follows each layer's completion. The technique is based on constructing the component iteratively. Intricate geometry and interior features are where this technology truly excels when compared to more conventional manufacturing methods.

Directed Energy Deposition (DED)

During DED, a nozzle-equipped multi-axis robotic arm deposits material—typically wire or powder—directly onto a surface. Melting the material with an electron beam or a laser all at once makes it fuseable when deposited. This method simplifies the process of building new structures or replacing old ones. Because it reduces waste and enables fast prototyping by creating material precisely where it is required, DED is relied upon by rocket manufacturing to produce large-scale components.

Best Examples for 3D Printed Rocket Engine

1. Relativity Space's Terran 1

Read full story: aljazeera

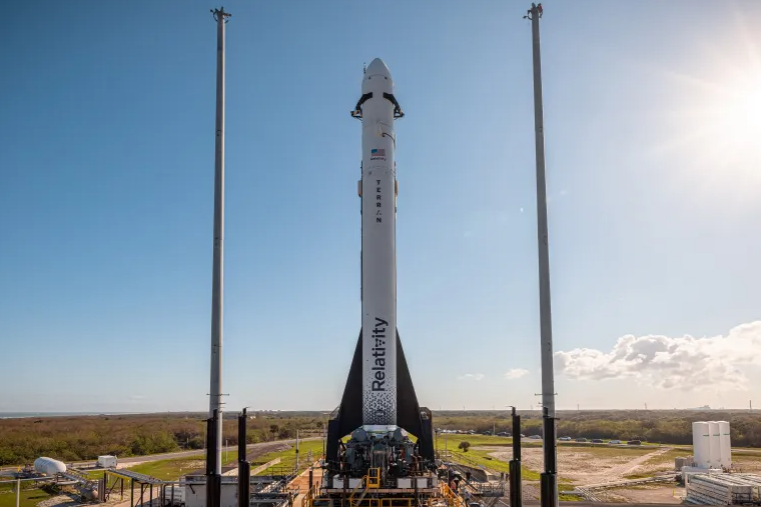

Terran 1 was the world's first rocket, constructed nearly completely by the Californian aerospace company Relativity Space. The majority, or 85%, of Terran 1's mass—including the ship's structure and propulsion systems—was three-dimensionally printed. It stood 100 feet tall and had a breadth of 7.5 feet. Built with cutting-edge alloys created by NASA, the rocket demonstrated the capabilities of 3D-printed aeronautical structures. Reaching max q, the point of maximum aerodynamic pressure during ascent, was one of the major milestones accomplished by Terran 1 during its March 2023 launch from Florida's Cape Canaveral Space Force Station. Even though the top stage failed to reach orbit due to a failure, the flight proved that 3D-printed rockets are structurally viable and generated vital data.



2. Relativity Space's Terran R

Read full story: space

Relativity Space is building Terran R, their next reusable spaceship, using what they learned from Terran 1. Launching satellites and other large items into orbit is possible with the 95% 3D-printed Terran R, which can carry payloads of up to 50,000 pounds. It stands at 270 feet tall and has a diameter of 18 feet. Developing a rocket capable of completing 20 flights will allow us to drastically cut down on production times and expenses. Following its first launch in 2026, Relativity Space intends to make Terran R accessible for future missions by both commercial entities and government organizations.

3. Orbex's Prime Micro Launcher

Read full story: orbexspace

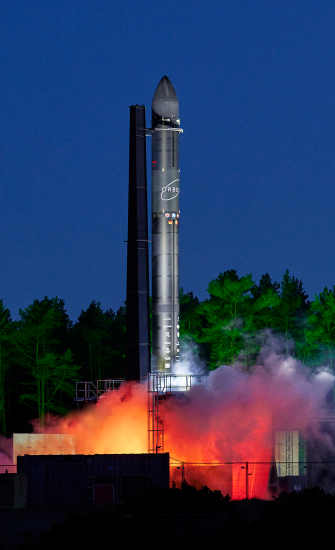

The innovative Prime micro-launcher is the brainchild of the British aerospace firm Orbex. Its primary use is to facilitate the orbital deployment of tiny commercial spacecraft. Prime consist of seven 62-foot-long 3D-printed engines made of a lightweight aluminum-titanium alloy. There is less waste and more speed in manufacturing because to the in-house, high-volume 3D printing technology. Reducing carbon emissions from conventional rockets by 90%, Orbex Prime runs on renewable bio-propane fuel, a prime example of their dedication to environmentally friendly space travel. Not only that, the rocket is reusable and won't leave any waste behind on Earth or in space.

4. Agnikul Cosmos's Agnibaan

Read full story: tribune

The flexible two-stage rocket Agnikul Cosmos, built by an Indian aerospace company, can launch 300 kg of payloads into Earth's orbit. A specially 3D-printed combustion section powers the seven Agnite engines on board the rocket. In May 2024, Agnikul Cosmos unveiled Agnibaan SOrTeD, a showcase of Agnibaan's technology. Its engine was a 3D-printed, semi-cryogenic one. The launch, which was Agnibaan's maiden vehicle flight, proved that additive printing could greatly enhance the customization and development times of rocket designs.

5. NASA's 3D-Printed Rocket Components

Read full story: NASA

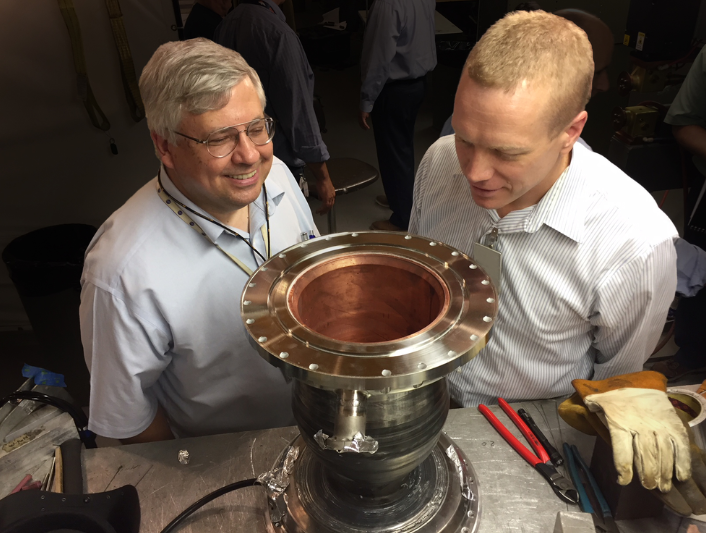

The utilization of 3D printing to improve rocket engine components has been the subject of extensive research by the National Aeronautics and Space Administration (NASA). In the fall of 2023, NASA successfully hot-fire tested a 3D-printed rocket engine nozzle, despite aluminum's low melting point and tendency to shatter during additive manufacture. More lightweight and inexpensive rocket designs may be possible as a result of our success in 3D printing aluminum rocket components. Research in this field is a continuous effort by NASA to improve the performance and reliability of rocket engines while simultaneously reducing production costs and delays.
