3D-Printed Casting Molds: What You Need to Know

Particularly in the design of casting molds, 3D printing has fundamentally changed production in recent years. Conventional mold-making techniques can involve complex, time-consuming, and expensive operations. On the other hand, 3D printing presents a simplified method that allows for quick prototyping and the creation of complex designs with unparalleled accuracy. This technology enables greater design freedom and customization by enabling the manufacture of molds that were previously difficult or impossible to create. Manufacturers can get faster turnaround times, lower prices, and more innovative products by including 3D printing in mold-making.

3D-Printed Casting Molds: How Are They Prepared?

Step 1: Designing the Mold

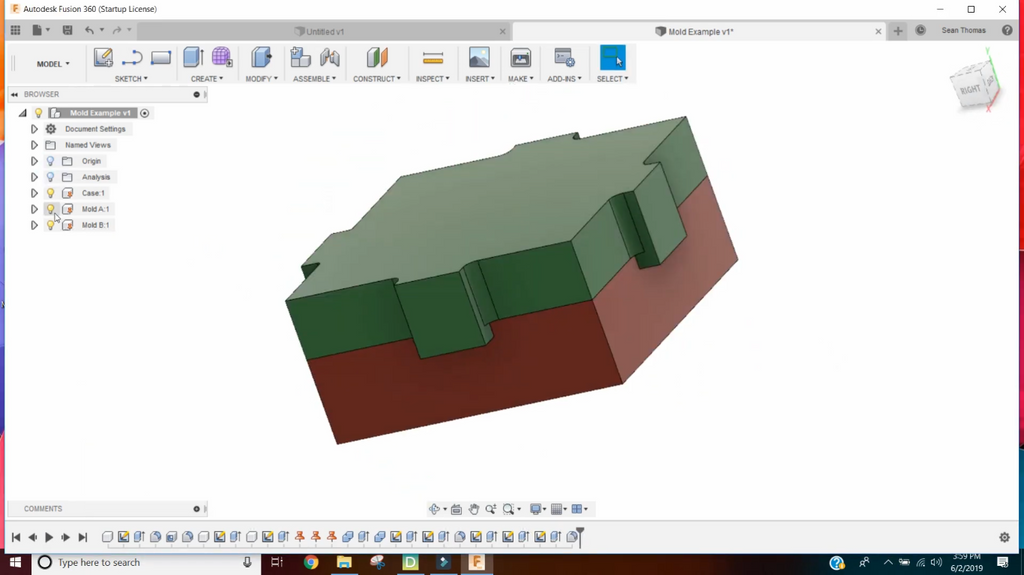

Start by creating the intended part with the CAD program Fusion 360. Form the top and bottom halves by joining the geometries once the item is complete, to build the mold around it. This is usually done at an angle of between two and three degrees, including draft angles, to facilitate simple cast part removal. Add alignment keys as well to enable exact matching of the mold halves, thereby avoiding misalignment during casting.

Step 2: 3D Printing the Mold

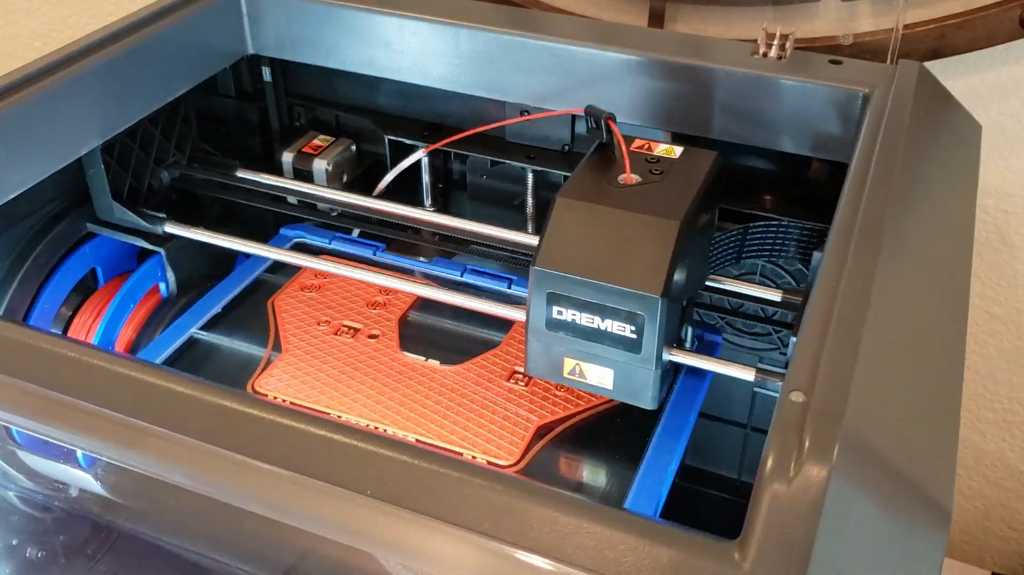

Start 3D printing the mold once the design is finalized. Select a material suitable for the casting substance; for most applications, PLA or ABS is well-suited. Make sure the printer settings maximize accuracy to record minute mold design details.

Step 3: Preparing the Mold

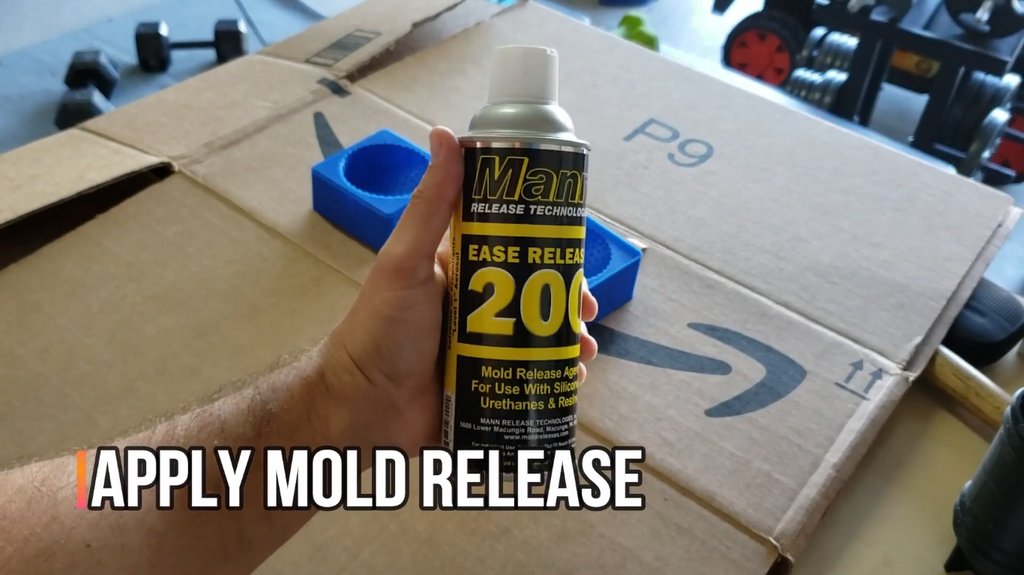

Apply a suitable mold release agent to the internal surfaces of the molded part after printing. Mann Ease Release 200 works well for silicone casts. A small layer of vaseline or chapstick helps urethane casts avoid the cast material adhering to the mold. Maintaining the integrity of the mold and easy demolding depend on complete application.

Step 4: Mixing and Pouring the Casting Material

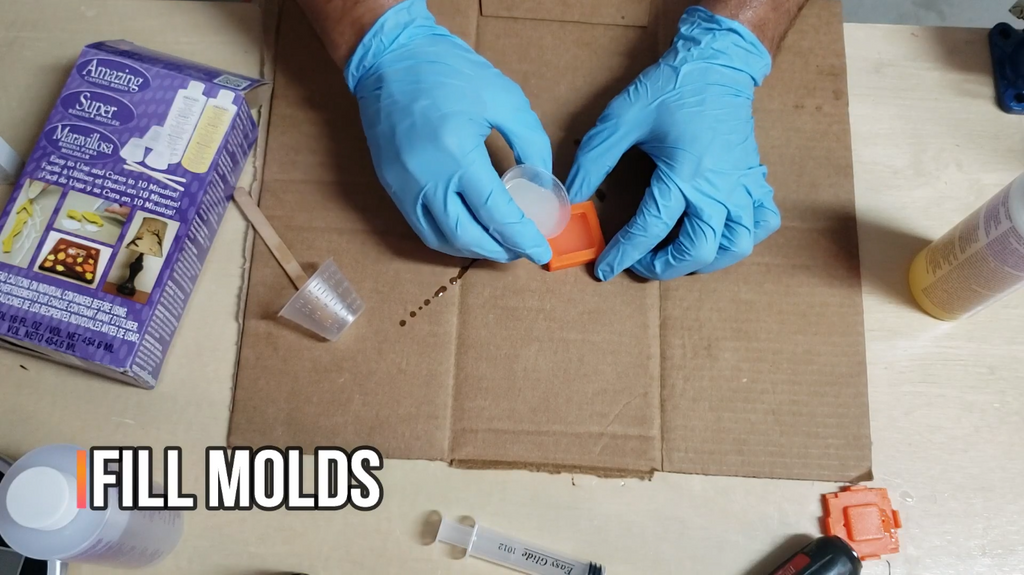

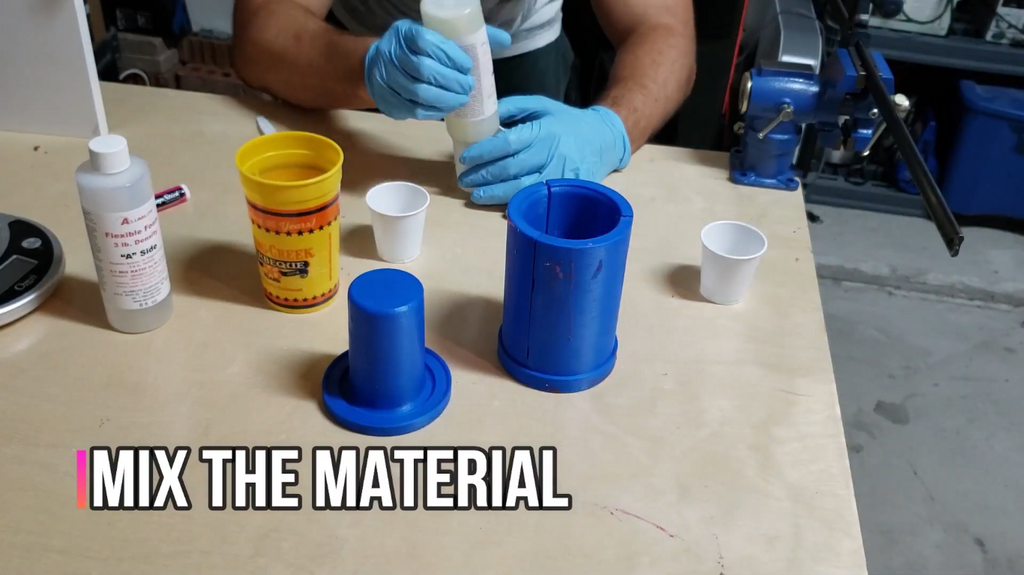

Mix the casting material according to the manufacturer's directions; consider whether the mixture is by weight or volume. To maintain the right ratios, use accurate measuring instruments. Working with foam, act quickly during mixing and pouring as it expands quickly. Carefully pour the mixture into the mold to prevent air bubbles, which can compromise the quality of the finished product.

Step 5: Curing Process

Let the casting material cure according to the advised times. Check the expansion of foam materials to ensure they have completely cured before demolding. One might use the remaining material in the mixing cup as a sign of the curing development. Use this visual indicator to gauge readiness for materials that change color upon curing, such as some urethanes that transition from clear to white.

Step 6: Demolding the Cast Part

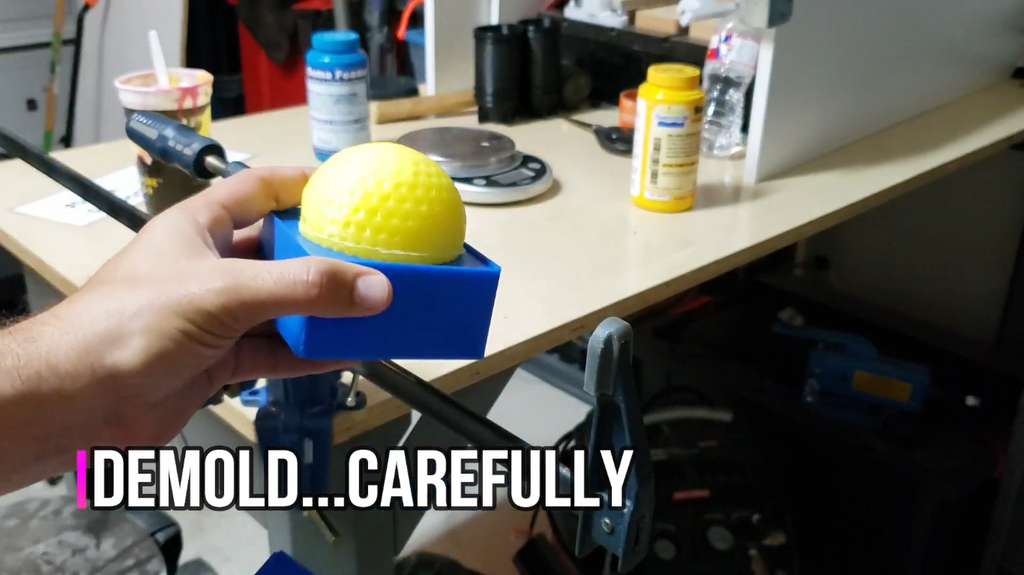

Gently remove the mold halves once cured to expose the cast component. The part should come out with the least effort if the mold release is done well. Use caution in this stage to prevent compromising fragile cast features. If the cast part resists removal, consider using small pliers or tweezers, but remove it gently to avoid harm.

Common Pitfalls and Solutions

1. Failing to apply enough mold release may cause the cast to stick, thereby possibly damaging the mold as well as the part. Verify always a complete and even application.

2. Pouring too much might cause excess, sometimes termed as flashing, which calls for more cutting. Carefully fill molds to the advised level to reduce post-processing effort.

3. Removing the part before it has completely cured could cause distortion or ripping. To ensure the part has attained enough strength for demolding, always follow the advised curing times.

3D-Printed Casting Molds: Best Options

1. Forge Labs' 3D-Printed Master Patterns

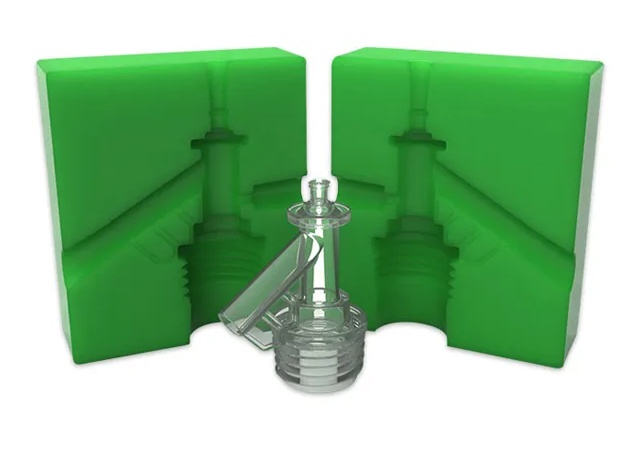

Using cutting-edge technologies such as Stereolithography (SLA) and PolyJet Matrix, Forge Labs specializes in creating high-resolution 3D-printed master blueprints for mold production. These techniques allow the production of extremely smooth, detailed patterns ready for casting with little post-processing. The chemical compatibility of the materials utilized offers longevity and accuracy during the casting process by means of binding agents and mold releases. Forge Labs can create elaborate geometries—often too complicated for conventional CNC machining—by using 3D printing, all without requiring hand fabrication.

Compared to machined patterns, this method drastically lowers manufacturing time, delivers parts in as little as 1-3 business days, and offers up to 80% cost savings. Their 3D-printed designs are abrasion-resistant, strong enough to endure the ramming pressures used during molding, and they remain unaltered by chemicals in mold releases. For uses needing fast turnaround and high-quality outcomes, they are thus a great choice.

2. Pentz Cast Solutions 3D-Printed Molds

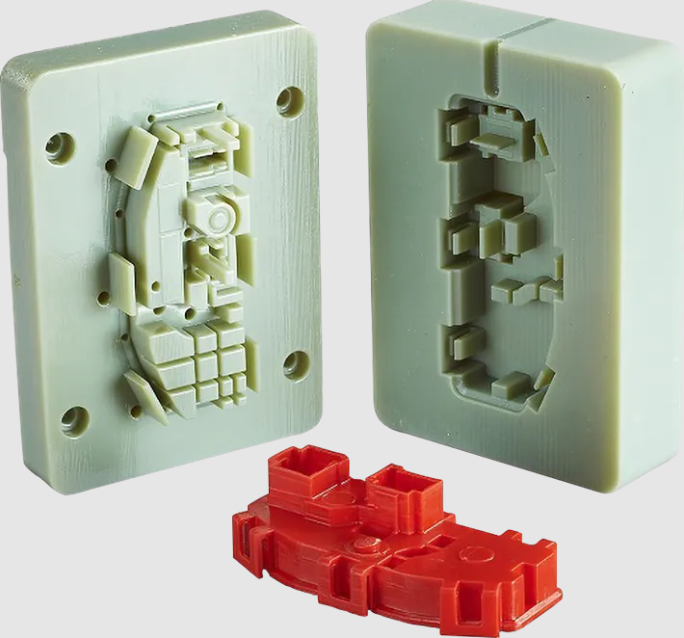

Pentz Cast Solutions provides creative 3D-printed molds and cores that enable the creation of sophisticated aluminum castings without the need for hard tooling. Starting with customer-designed CAD files or reverse engineering via laser scanning, their process provides exact replication of mission-critical components. They add casting shrink, machine stock, and rigging once the shape is approved. Rapid prototyping and short-run production made possible by this approach considerably lower lead times and costs.

Offering flexibility and design freedom, the 3D-printed molds may create complex designs with either zero or negative draft angles. Pentz's method offers precise, proven prototypes with fast turnaround times, thereby bridging the gap between prototyping and full-scale manufacture. Their value-added services—quality inspection, heat treatment, and CNC machining—ensure that the finished castings satisfy high industrial requirements, thus rendering them a dependable partner for complex casting solutions.

3. Shapeways Lost Wax Casting

Offering a variety of materials, including Brass, Bronze, Copper, Gold, Platinum, and Silver, Shapeways uses modern 3D printing technology to improve the classic skill of lost wax casting. The technique starts with plaster molds created from 3D-printed wax patterns. The first wax melts and drains after sprues for metal flow are added, leaving a cavity for molten metal. The plaster breaks away after the metal cools and sets, exposing a finely detailed metal result.

This technique enables the creation of detailed features and intricate forms that would be challenging to achieve with traditional methods. Perfect for uses including jewelry, prototypes, and decorative objects, 3D printing speeds manufacturing and improves design flexibility. Professional, high-quality finishes with excellent corrosion resistance are achieved through Shapeways' expertise in combining 3D printing with lost-wax casting, serving both individual designers and industrial clients.

4. Xometry 3D Printing for Casting Molds

Xometry Pro explores the possibilities of casting molds using 3D printing, thereby highlighting the advantages of this method, as well as the appropriate technologies, materials, and design considerations. Particularly for prototyping and low-volume production, the casting process becomes faster and more efficient when using 3D-printed patterns, thereby reducing the need for time-consuming, expensive mold fabrication. The design flexibility enabled by this approach lets one create intricate shapes that are challenging to achieve with conventional mold-making methods.

By incorporating 3D printing into the casting process, lead times are shortened, manufacturing processes are streamlined, and significant cost reductions can be achieved. The insights from Xometry Pro on 3D-printed molds for casting provide manufacturers looking to use this creative approach with a great direction to increase their production capacity.

Which Is the Best 3D Modeling Software?

SelfCAD is a beginner-friendly 3D modeling software that combines modeling, sculpting, slicing, and 3D printing preparation tools in a single platform. Unlike many traditional CAD programs that require separate applications for design and slicing, SelfCAD allows users to create, edit, and prepare models for printing without leaving the software.

The software features an intuitive interface and a wide range of tools, including sketching, extrusion, sculpting, parametric modeling, and shape generators. It also includes built-in tutorials, making it an excellent choice for students, educators, hobbyists, and makers who are new to 3D design.

Because SelfCAD runs in the cloud and offers a browser-based version, users can access their projects from virtually anywhere without needing a high-performance workstation. Its integrated slicer further simplifies the workflow by enabling users to prepare and export models directly for 3D printing.

SelfCAD offers interactive tutorials to help you learn 3D modeling skills through a hands-on approach.

Accelerate Prototyping with High-Precision 3D-Printed Molds

3D-printed casting molds offer significant benefits over conventional techniques, including greater design freedom, shorter manufacturing times, and reduced costs. They help create delicate features and intricate geometries that are difficult to attain with traditional tools. For fast prototyping and small-batch manufacturing, 3D printing also removes the need for costly molds and tooling, thereby saving money. For new items, this method accelerates time-to-market, streamlines manufacturing, and reduces material waste.
