3D Print Top Layer Rough: How to Fix It

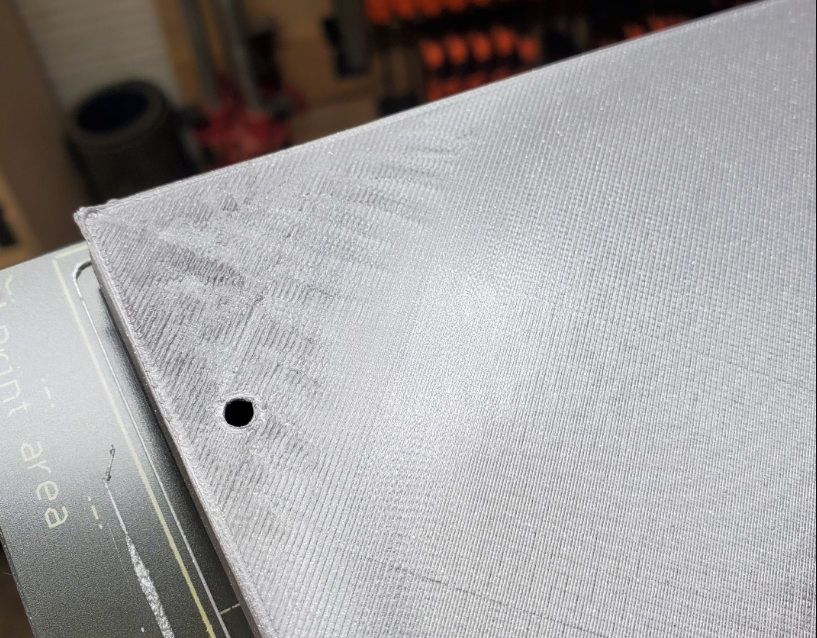

The remarkable technology of 3D printing enables the production of intricate models, prototypes, and working components. Even for skilled users, getting the top layer of a 3D print to seem flawless can be a challenge. Uneven or rough top layers are a typical problem that can diminish a print's quality and appearance.
To make the top layer of a 3D print with a Bambu Lab printer smooth, follow the steps outlined in this article. To get a perfect finish on your top layers, this article will help you optimise settings, use the proper materials, and use post-processing techniques.
In-Depth Analysis of Causes for Rough Top Layers
1. Inadequate Cooling
When printing the upper layers of a 3D model, it is extremely important to use the correct cooling method. The extruded filament can distort and have a rough surface finish if it stays semi-molten for too long due to a lack of cooling. This is especially true for materials that rely on fast cooling to keep their structure intact, such as PLA. Inadequate cooling might cause the filament to fail to harden properly, leading to an uneven or rough top layer.
2. Inappropriate Infill Density and Pattern
A 3D print's infill density and pattern define its internal structure, which is crucial for sustaining the top layers. The upper layers may droop into the spaces between the infill lines if the support is inadequate due to low infill density or inappropriate infill patterns. The top surface becomes uneven and harsh as a result of this sagging. Preventing such flaws requires selecting an infill pattern and density that are suitable for the top layers.

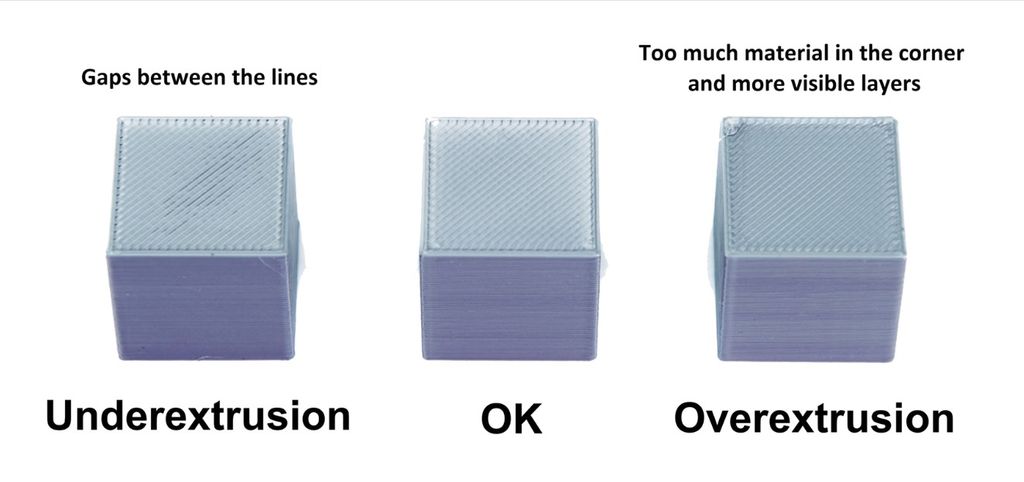

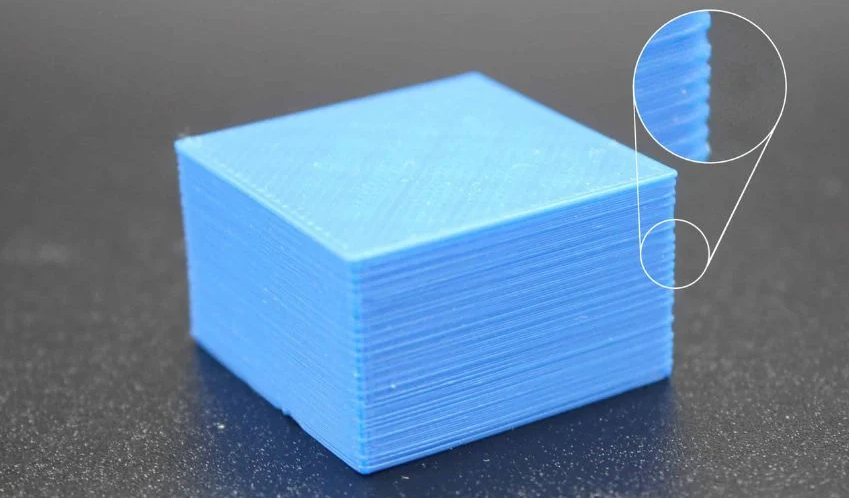

3. Over-Extrusion
If the 3D printer distributes more filament than is required, the print surface will have too much material, a process known as over-extrusion. The top layer may become uneven and rough, with ridges or blobs apparent, due to this excess filament. The slicer software's extrusion multiplier settings or the firmware's calibration settings are common causes of over-extrusion. In order to fix over-extrusion, you have to adjust these settings so the printer extrudes just the right quantity of material.

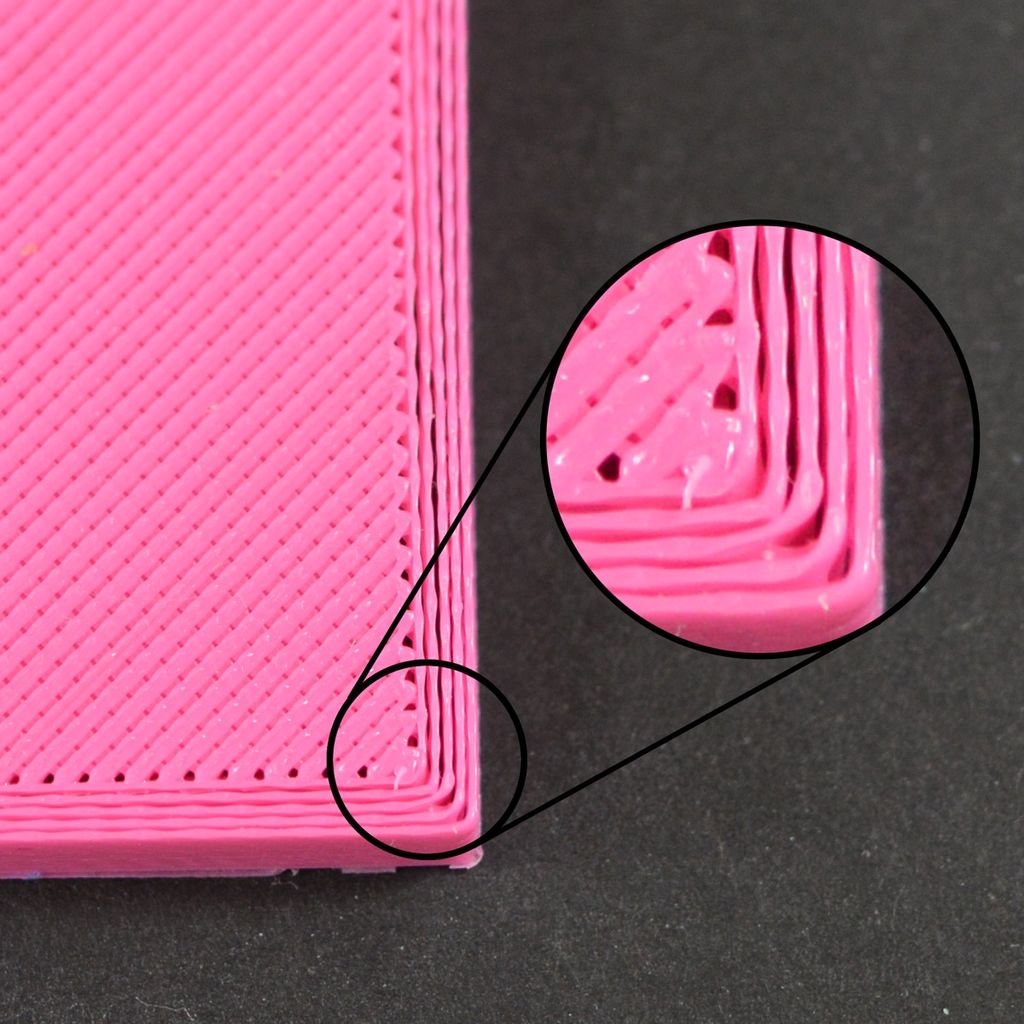

4. Under-Extrusion
On the flip side, under-extrusion occurs when the printer does not deliver enough filament, which leads to surface roughness, gaps, or unfinished layers. Clogged nozzles, an inadequate filament supply, or improper slicer settings are among the possible causes of this problem. A poor surface finish and compromised structural integrity are the results of under-extrusion. Preventing under-extrusion requires regular calibration and maintenance.
5. Insufficient Top Layer Thickness
Achieving a smooth finish is heavily dependent on the thickness of the top layers. A thin top layer won't cover the infill structure enough, which means the surface will be uneven and rough. The coverage and smoothness of the top layer are both improved by making sure it has numerous passes. To get the appropriate thickness and surface quality, you can adjust the number of top layers in the slicer settings.
6. Printing Speed and Temperature Settings
Because the printer might not deposit the filament precisely at such high speeds, the top layer might end up with a rough surface, lowering its quality. A similar effect on filament flow and layer adhesion might result from using the wrong temperature settings. For example, if the printing temperature is too low, the layers might not adhere properly and the final product could have a rough surface. To get a smooth top layer, you need to find the sweet spot between temperature and speed.

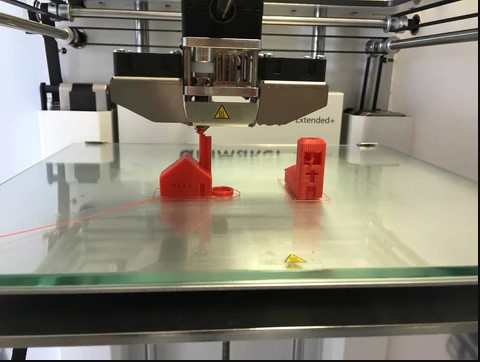

7. Bed Adhesion Issues
Some printouts may lift or distort during printing due to insufficient bed adhesion. Any insecurity in the print's foundational attachment to the build platform increases the likelihood that top-layer distortions will cause an uneven or rough surface. You can reduce the severity of this problem by employing adhesion aids such as rafts or brims and making sure the bed is level.
8. Factors Within the Environment
The printing process is susceptible to external environmental factors including humidity and temperature. For instance, if you're printing in a chilly room, the filament can cool down too rapidly, which could result in warping or a rough surface layer. For consistent print quality and a smooth top surface, it's helpful to keep the environment under control.
3D Print Top Layer Rough: How to Fix It
1. Advanced Cooling Strategies
For a flawless finish, it's critical to speed up the cooling process. Make sure the cooling fan on your printer is working properly and running at its fastest setting, particularly when printing the top layers. The rapid solidification that results from efficient cooling eliminates the possibility of warping and uneven surfaces. If the current cooling system isn't cutting it, you might want to look into getting a more efficient fan or installing some extra ones.

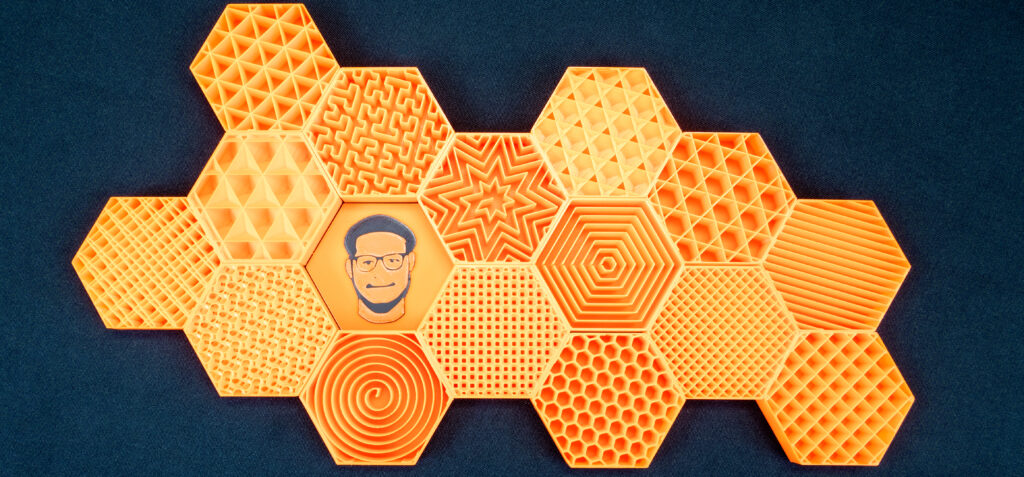

2. Optimizing Infill Density and Patterns
Your print's internal structure has a major effect on the top layer's quality. Raising the density of the infill makes the top layers more stable, which in turn lowers the chances of sagging and roughness. Strive for an infill density of approximately 20-30% to strengthen the internal structure. In addition, the top layers can be better supported by using a strong infill pattern like a grid or triangle. By distributing the material equally, these patterns establish a firm groundwork upon which the upper layers can rest.

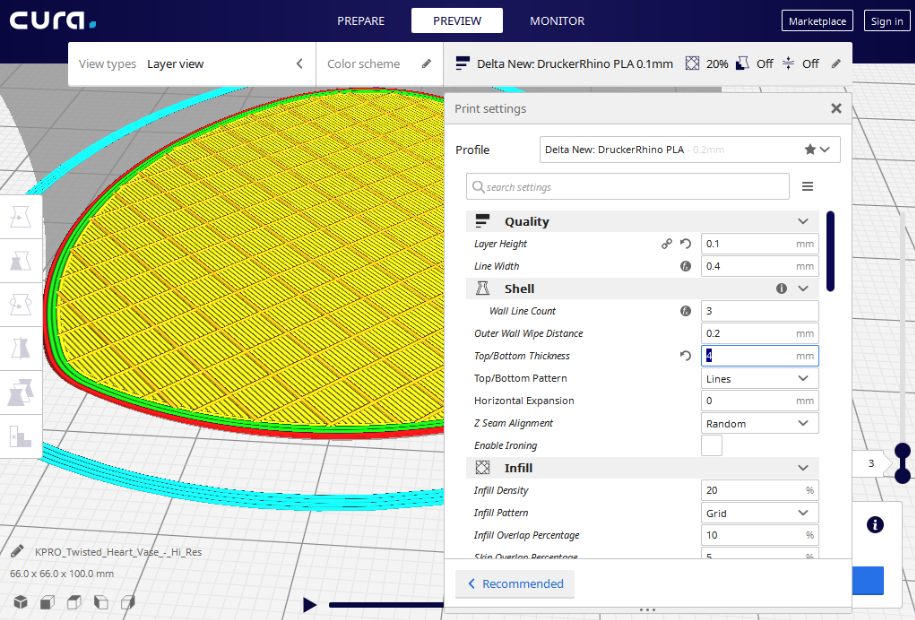

3. Adjusting Top Layer Thickness
In order to get a smooth surface, the thickness of the top layer is quite important. The susceptibility to distortion and sagging increases when the top layer is excessively thin. The suggested thickness for the top layer is five to six times the usual layer height. The recommended range for the thickness of the top layer is 0.5–0.6 mm, for example, when the layer height is 0.1 mm. This method guarantees that there is enough material in the top layer to make it level and smooth.
4. Fine-Tuning Extrusion Settings
If the top layer is over-extrusiond, it will look uneven and harsh. You can fix this by modifying the slicer's extrusion multiplier. To begin, reduce the extrusion multiplier by small increments (say, 0.05) and watch what happens. By making this modification, you can prevent filament deposition, which can lead to a smoother top surface. Because gaps and weak layers might result from under-extrusion, striking the correct balance is crucial.
5. Implementing Ironing Techniques
“Ironsing” is a method where the nozzle goes over the top layer again, but this time with very little extrusion. This procedure smooths out any extruded material by flattening it and plugging any holes it may have. You may make the top layer smoother by enabling and configuring the ironing feature, which is available in many slicing tools. To get even better results, you can play about with ironing settings like flow and speed.
6. Enhancing the Surface Finish with Post-Processing
There are a number of post-processing procedures that, when combined with printer settings and techniques, can make the top layer even smoother. To achieve a smooth and polished look, use fine-grit sandpaper to smooth off any rough spots on top. Chemical smoothing with vaporised acetone is an effective method for polymers like ABS. Careful application of these procedures is required to prevent distortion of the part's dimensions and structural integrity. Follow all safety precautions to avoid breathing in toxic fumes when post-processing, and do it in a well-ventilated environment at all times.
Best 3D Printing Software
There are a lot of 3D modeling software available that you can use to prepare your dental designs and prepare them for 3D printing and a good example is SelfCAD. SelfCAD is a powerful 3D modeling software that you can use to create 3D models from scratch or edit existing designs and customize them based on your needs.
If the files have issues like unnecessary holes, you can fill them easily using the various tools of the software. After preparing your files, you can then use the in-built online slicer of the software to slice your files and generate the Gcode to send to your 3D printer.
In addition to being easy to use, SelfCAD also comes with many resources to help you get started with ease. There are many interactive tutorials to help you learn by actually creating 3D models. There is also a SelfCAD academy for those who like to follow step by step courses. 3D modeling 101 series and 3D modeling for beginners videos on YouTube are also great resources to help you learn how SelfCAD works and how you can use it to create your 3D models.
Conclusion
Achieving a flawless top layer in 3D printing requires a mix of the right printer settings, efficient cooling, suitable infill tactics, and, if required, post-processing approaches. You can improve the look and quality of your 3D printed components by learning what creates a rough top layer and then doing what it says on the package. The best results and a better grasp of 3D printing come from constant testing and tweaking of printer parameters.
