Best Settings to Adjust 3D Print Layer Height
One of the most crucial parameters for 3D printing is layer height. As your printer creates additional layers, it defines the thickness of each line of plastic or resin. The print time, strength, and surface quality are all significantly impacted by the layer height. To achieve your desired prints with every print, it is important to select the appropriate layer height. In addition, it shortens print times and improves adhesion between layers.
What Layer Height Is and Why It Matters?

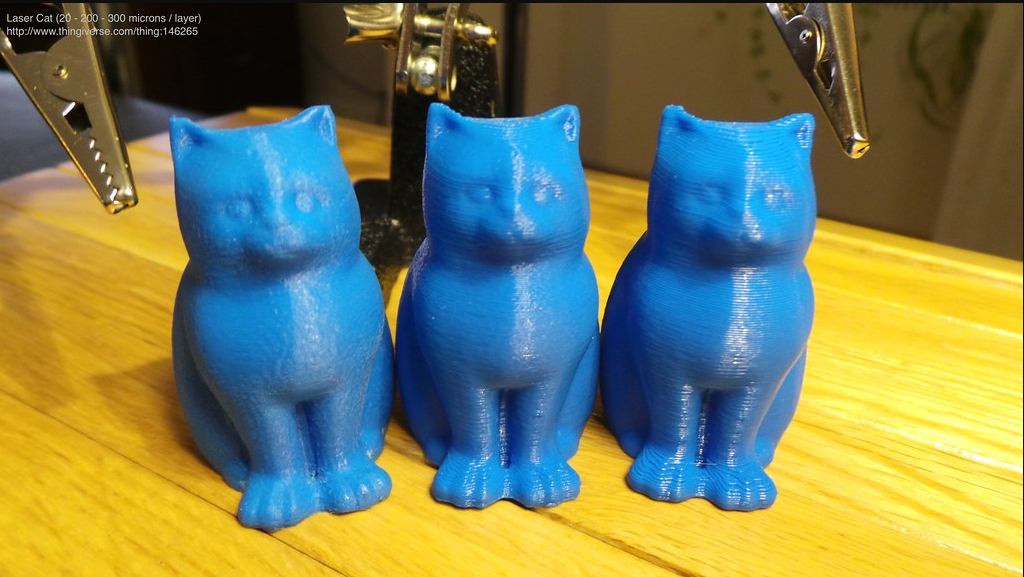

The printer's layer height is the vertical gap between the material layers. Millimeters are the units of measurement. Layers are more numerous, and surfaces are smoother at lower heights (e.g., 0.10 mm). Printing at larger heights, such as 0.30 mm, speeds up the process, but the layer lines become more apparent. Layer height for filament printers should typically fall within the 25% to 75% range of the nozzle diameter. Layer heights between 0.10 and 0.30 mm are considered excellent with a 0.4 mm nozzle. With a 0.6 mm nozzle, you can achieve layer heights between 0.15 and 0.45 mm, and with a 0.8 mm nozzle, you can reach up to 0.60 mm.
How Nozzle Size Limits Layer Height?
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Layer height can be maximally adjusted by adjusting the nozzle size. Ensure that the height is lower than the diameter of the nozzle. When the height is too high, it becomes impossible to properly press the filament into the layer below. If you set it too low, the printer can have trouble extruding smoothly. As an example, a 1.0 mm nozzle can consistently handle layers ranging from 0.25 mm to 0.75 mm. Using layers ranging from 0.05 mm to 0.15 mm, a 0.2 mm nozzle may support incredibly fine detail.
Finding the sweet spot between your printer's capabilities and your print objectives is as simple as adjusting the nozzle and layer height.
PLA Layer Height Settings
Among the many materials used for 3D printing, PLA ranks high. At room temperature, it melts readily and prints beautifully. Additionally, it clings firmly to the majority of worktops. That is why PLA is an excellent material to learn about layer height with.
Best PLA Layer Height Ranges

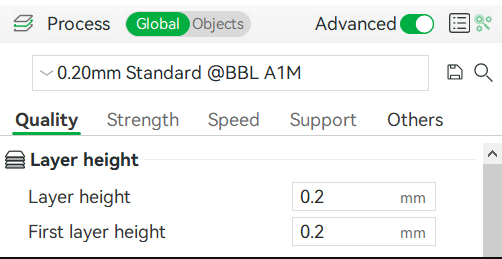

Layer heights of 0.10 mm to 0.30 mm are common for PLA when using a conventional 0.4 mm nozzle. For regular prints, 0.20 mm is a decent default. Surfaces are smoother, and curves and ornamentation are more detailed at 0.15 mm. Prints take longer at 0.10 mm but display extremely fine detail. Printing at 0.30 mm is significantly faster and can produce stronger results due to the increased surface area for layer bonding; nevertheless, the surface will appear chunkier.
When to Use Thin vs Thick Layers with PLA?
Miniatures, works of art, and ornamental models benefit from thin layers. On slanted surfaces, they mask the stair-step impression. For larger prints, practical components, or prototypes where minute details aren't crucial, thicker layers work well.
Cooling is also crucial for successful PLA printing. Part cooling fans work well with PLA because the material solidifies quickly once it exits the nozzle.
ABS Layer Height Settings
Compared to PLA, ABS is stronger and does not melt easily. Increasing the temperature of the extruder and the bed is necessary. When cooled too quickly, ABS can distort. Layer heights should be thicker than those with PLA, as a result.
Best ABS Layer Height Ranges
The typical suggested layer height for ABS with a 0.4 mm nozzle is between 0.20 and 0.30 mm. This top end aids in minimizing warping. When the layer thickness is too low, as in 0.10 mm, the layers can separate due to the rapid cooling. If your ABS print needs to be sturdy and have a decent surface quality, 0.25 mm is a frequent choice.
Why Thicker Layers Help with ABS?
You can melt more plastic in one pass with thicker layers. This additional substance enhances bonding and prolongs the retention of heat. Improved layer bonding lessens the likelihood of cracks and splits in ABS, which shrinks when cooled. Printing on a heated bed, which should be between 90 and 110 degrees Celsius, also helps with adherence.
ABS often requires a little lower print speed and a contained print space. As a result, the component remains warmer and experiences less warping during cooling.
PETG Layer Height Settings
PETG combines strength with ease of use. While it's easier to print with than ABS, it's a little tougher and more flexible than PLA. Furthermore, PETG has good heat and impact resistance.
Best PETG Layer Height Ranges

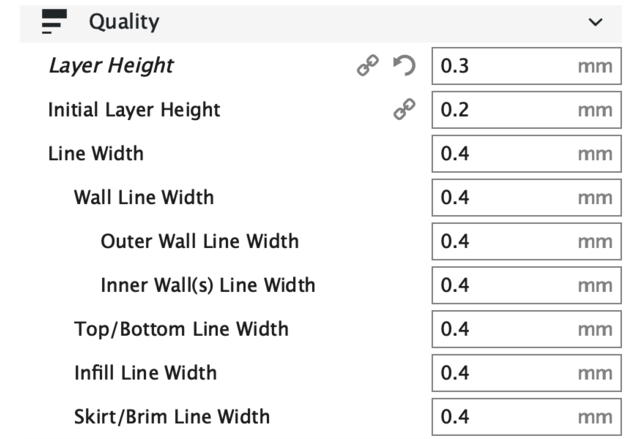

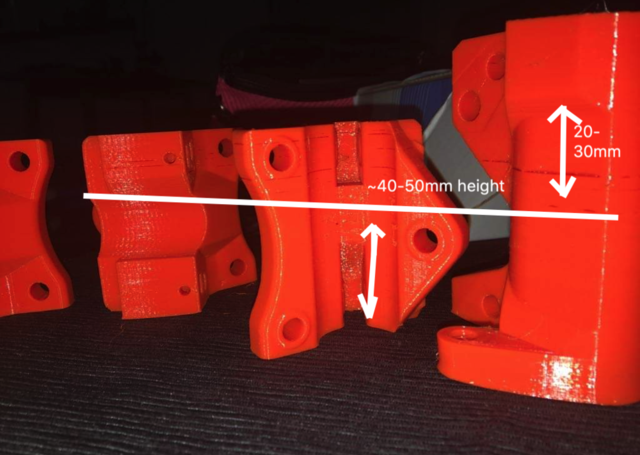

The ideal range for PETG with a 0.4 mm nozzle is 0.10 mm to 0.30 mm. Most people find that 0.20 mm is the sweet spot for print speed, detail, and strength. When working on complicated models, some builders prefer 0.15 mm for further intricacy. Other people employ 0.25 mm to create functioning pieces rapidly that are strong.
PETG Tips for Layer Height
PETG has a higher string and oozing capacity than PLA. Each larger layer deposits more material in a more stable manner, which in turn reduces stringing. Because a too strong fan could reduce layer adhesion, PETG typically employs a more moderate cooling strategy, as opposed to PLA.
Bed temperatures of 70 to 80 degrees Celsius are often ideal for PETG. As a result, the initial layer adheres better and doesn't distort.
TPU and Flexible Filament Layer Height Settings
Materials that are pliable, such as TPU, can be bent and stretched. Due to their unique properties, they require extra caution while feeding into the extruder in comparison to stiff filaments.
Ideal Heights for TPU Layers
Layer heights ranging from 0.16 mm to 0.30 mm are typical for TPU that uses a 0.4 mm nozzle. To get a happy medium between fine detail and fluidity, try a setting like 0.20 mm. To lessen the likelihood of problems with a rubbery surface finish, some skilled users employ a thickness of about 0.16 mm. Uneven extrusion might result from using layers that are too thin.
Printing Tips for Flexible Filaments
When compared to hard polymers, flexible filaments should provide a slower print. To keep the filament from buckling while it's in the extruder, use speeds between 15 and 30 mm/s. The reduced distance between the drive gears and the nozzle in direct-drive extruders makes them ideal for printing flexible materials compared to Bowden configurations.
Nylon Layer Height Settings
A sturdy material with a slight pliability, nylon... It is crucial to let it dry before printing because it takes moisture from the air as well. Stewed for strength and warping control, its layer heights are comparable to PETG but angled.
Height Ranges for the Best Nylon Layers
The typical 0.4 mm nozzle works well with nylon in the 0.20 mm to 0.40 mm thickness range. For robust parts, many manufacturers choose thicknesses between 0.25 and 0.35 mm. While heights as small as 0.15 mm might provide exquisite detail, they also increase the likelihood of warping due to the fact that nylon shrinks when it cools.
Nylon Printing Considerations
Depending on the brand, nylon requires extrusion temperatures ranging from 240 to 270 degrees Celsius, or even more. To lessen warping, set the bed temperature to 60–80 °C. A heated chamber or enclosure works well with nylon as well, but it's essential to dry the filament first for successful printing.
Choosing the Right Layer Height for Resin Printing (SLA/DLP)
Instead of melting plastic, resin printers use light to cure the liquid resin. Because of this, they are able to produce layers that are so fine that FDM machines just can't compete.
Ranging Ideal Heights for Resin Layers

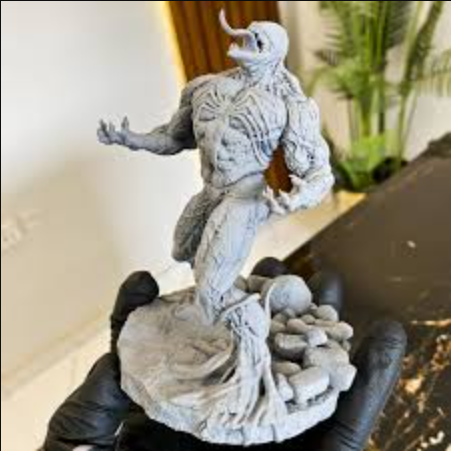

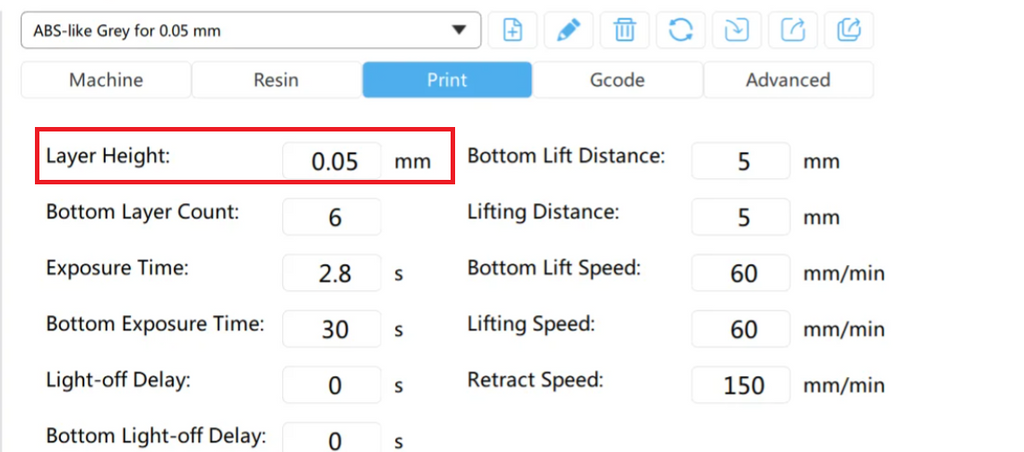

The typical layer heights used by resin printers range from 0.025 mm (25 microns) to 0.10 mm (100 microns). Jewelry, detailed models, and miniatures all benefit from the lower values. Even at larger heights, like 0.10 mm, rapid printing yields high-quality details.
Why Resin Layers Are So Fine?
Nozzle size does not dictate the maximum height of resin layers. Light and resin chemistry, on the other hand, are the limiting factors. Surfaces made with ultra-fine layers, such as 25 microns, seem almost smooth even after post-processing. Printing takes much longer with lower heights as well.
Balancing Speed, Strength, and Quality
There are always choices when it comes to layer height. Though it takes more time, thinner layers improve surface detail and quality. Prints with thicker layers are stronger and take less time to produce, but the layer lines are more noticeable.
The sweet spot for strength, speed, and aesthetics in everyday prints is often a layer height of 0.15 mm to 0.25 mm. Nylon, PLA, and PETG are just a few of the materials that this range is compatible with. Use 0.10 mm or smaller for prints requiring delicate detail, such as miniatures or elaborate ornamentation.
If your nozzle size allows it, you can increase the layer height to 0.30 mm or higher when print speed is more critical than detail, for example, when printing big functional parts or rapid prototypes. It is possible to achieve thicker layers without sacrificing surface quality with larger nozzles, such as 0.6 mm or 0.8 mm.
