How to 3D Model a Functional Karambit Knife in SelfCAD

The use of 3D design software in a variety of fields, including product development and manufacturing as well as engineering and architecture, has completely changed how we design and create items. CAD has evolved into a vital tool for designers and engineers worldwide due to its ability to view and manipulate digital models.

Applications for 3D CAD

 Applications for 3D CAD can be found in a variety of fields, including engineering, product design, manufacturing, and the entertainment industry.

• Visualization: 3D CAD software provides an accurate depiction of objects, allowing designers to view their designs from various angles and perspectives.
• Precise measurements: CAD tools offer exact measurement capabilities, enabling designers to accurately define dimensions, distances, and angles.
• Iterative design: With CAD software, designers can easily iterate their designs and make adjustments with ease, saving both resources and time.
• Collaboration: 3D CAD allows collaboration among designers, engineers, and stakeholders by enabling them to exchange and review designs in a digital format.
• Simulations and analysis: Before physical prototyping, CAD software frequently incorporates simulation and analysis tools to assist find potential design problems, improve performance, and test functionality.

Using the Extrusion Tool in SelfCAD to Design the Karambit Knife

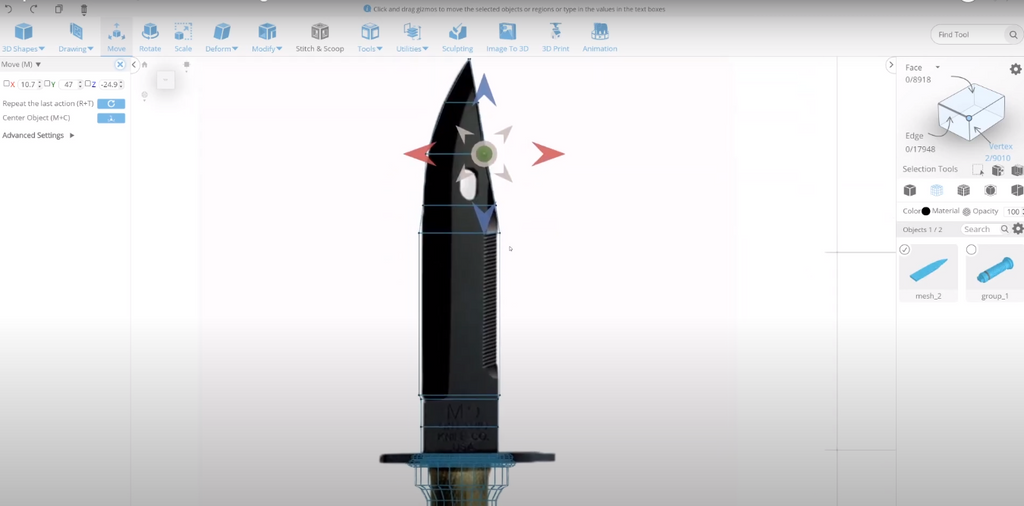

The Extrusion tool in SelfCAD offers many settings to modify your object. In this section, we are looking at how you can use it to design a knife sheath. This is the knife that we want to design the sheath:

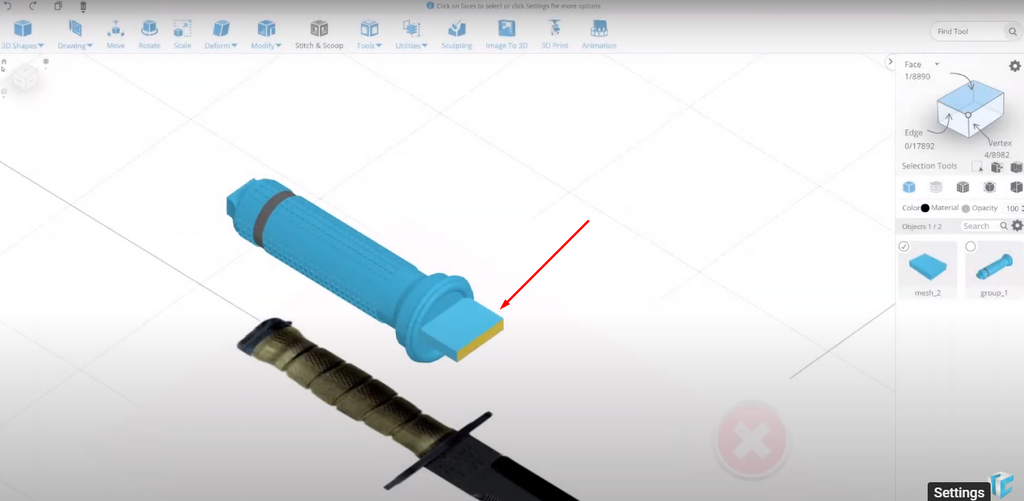

We want to use the Extrusion tool to extrude the part shown  below:

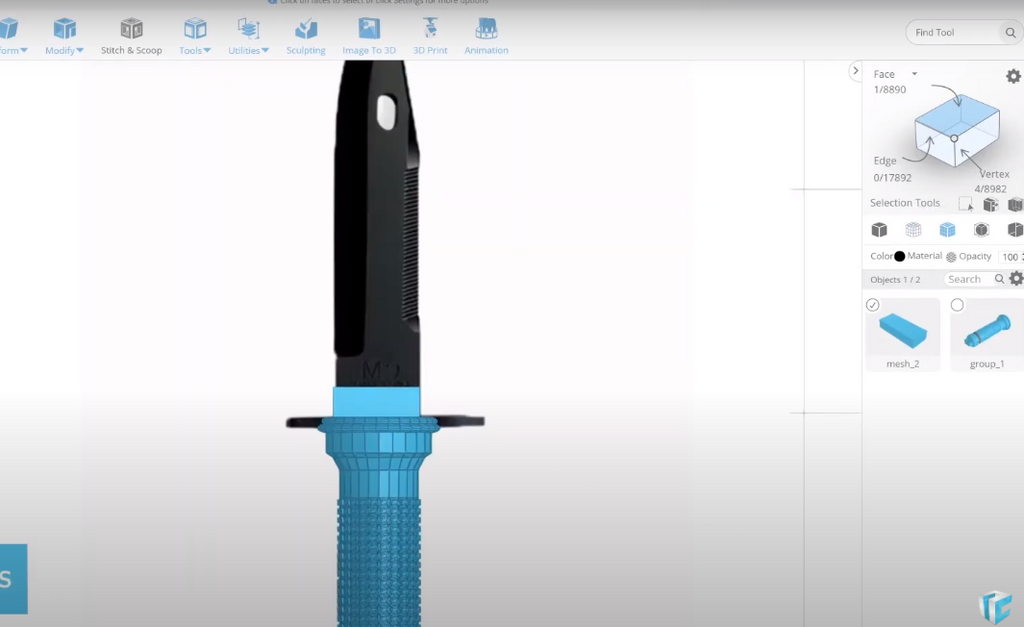

Switch the camera view mode to Top. This will help you extrude the faces in proportion to the knife's size.

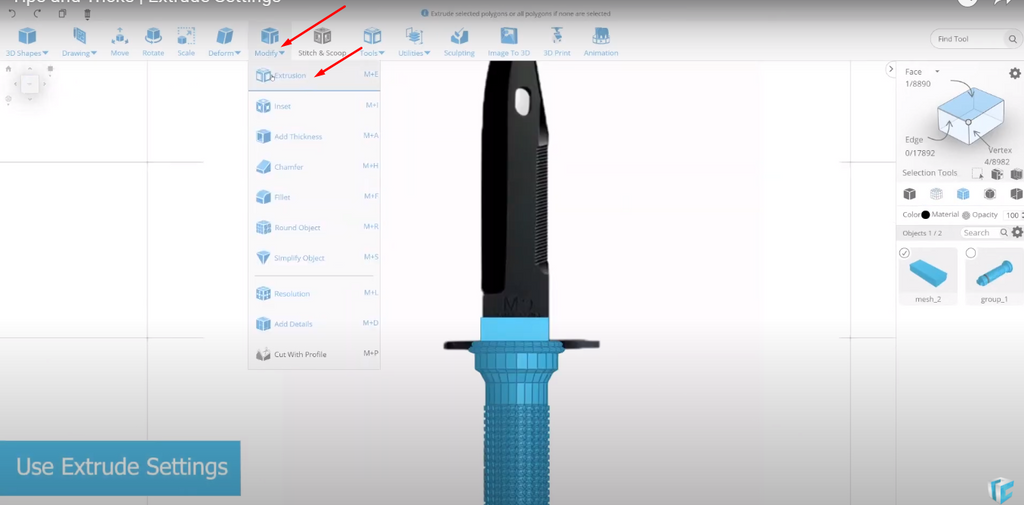

On the toolbar, go to the Modify category and select the Extrusion tool.

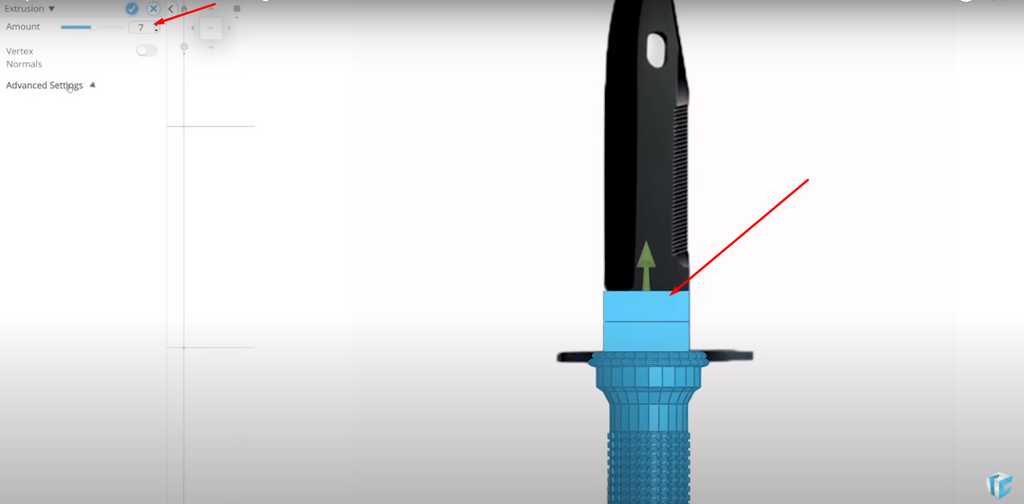

When you set the Extrusion Amount to 7, the face is extruded as shown below:

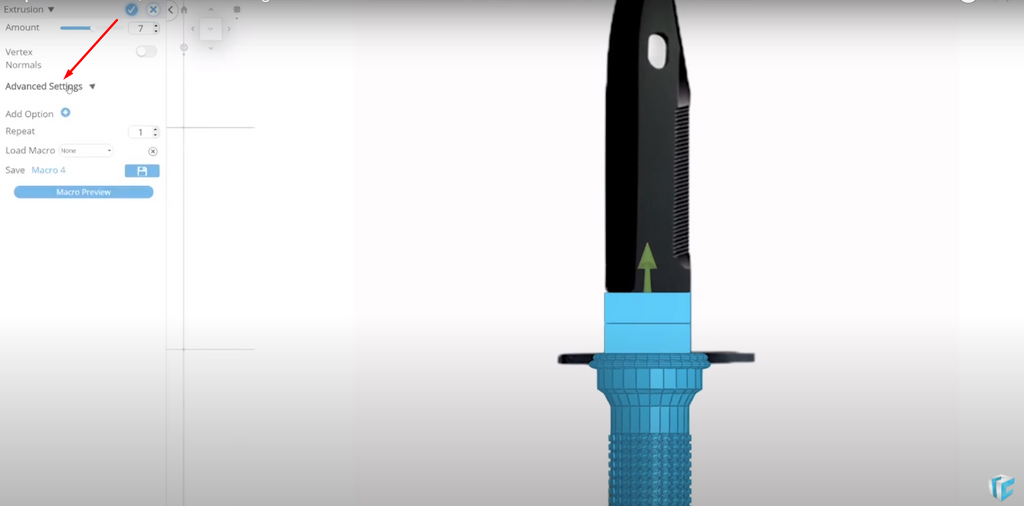

On the Extrusion, we have the Advanced Settings:

On the Advanced Settings, we have the Add Option part which gives you a parameters panel to set things like position, pivot et cetera.

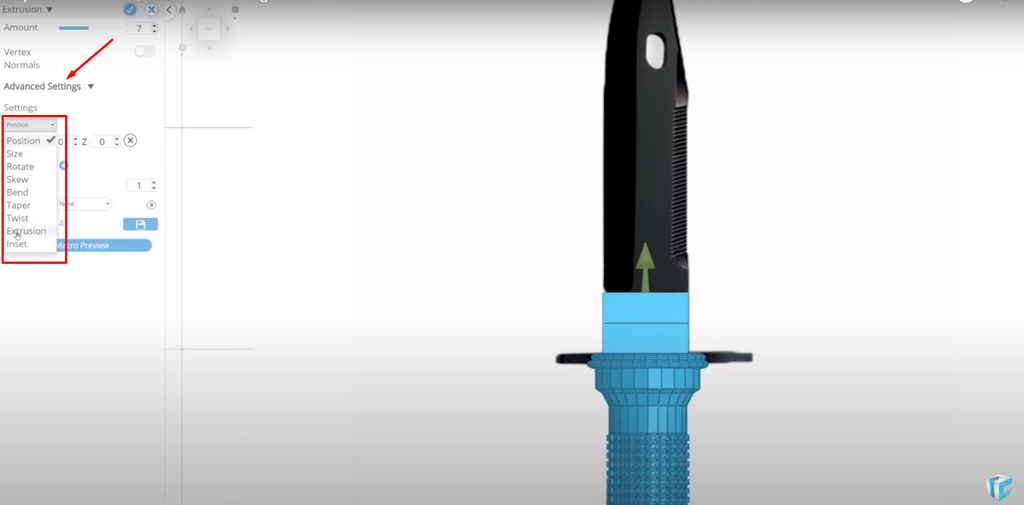

When you click the add option, there are more settings such as the one shown below. In this section, select Extrusion:

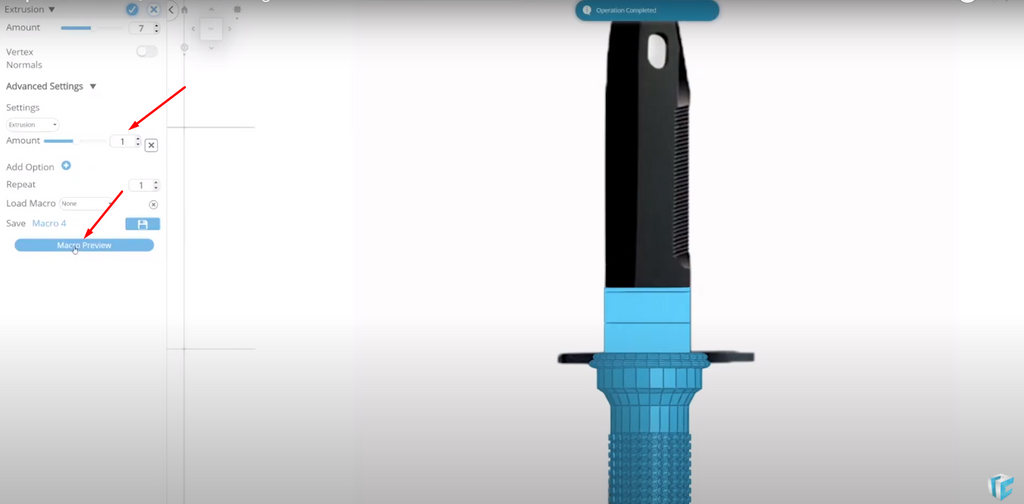

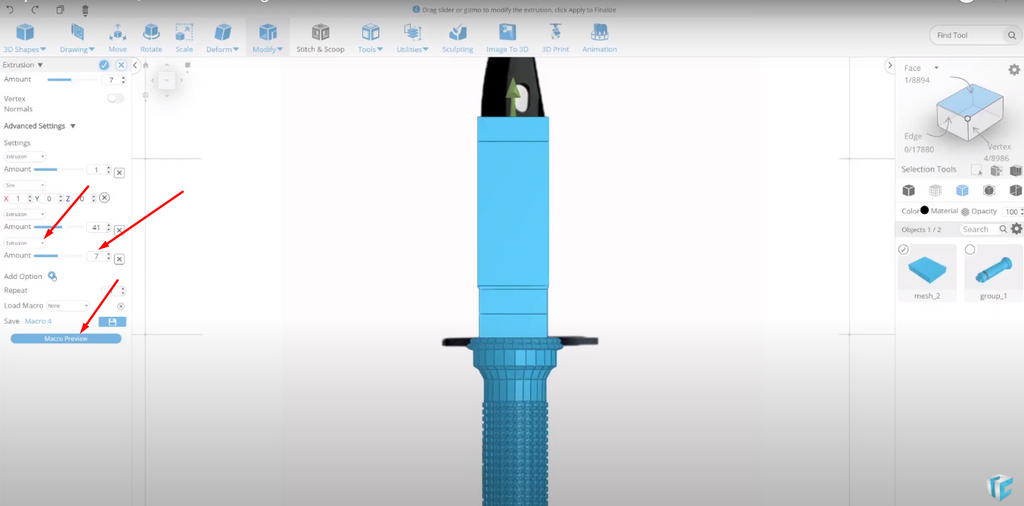

Set the Amount to 1 and click Macro Preview:

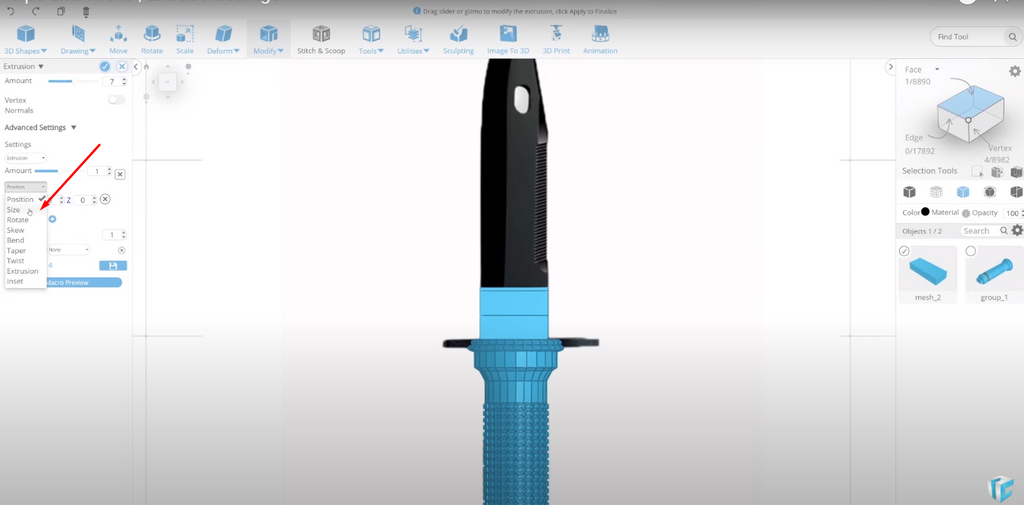

You notice that the face is extruded a bit. Click Add Option again and select the Size to set the size parameters.

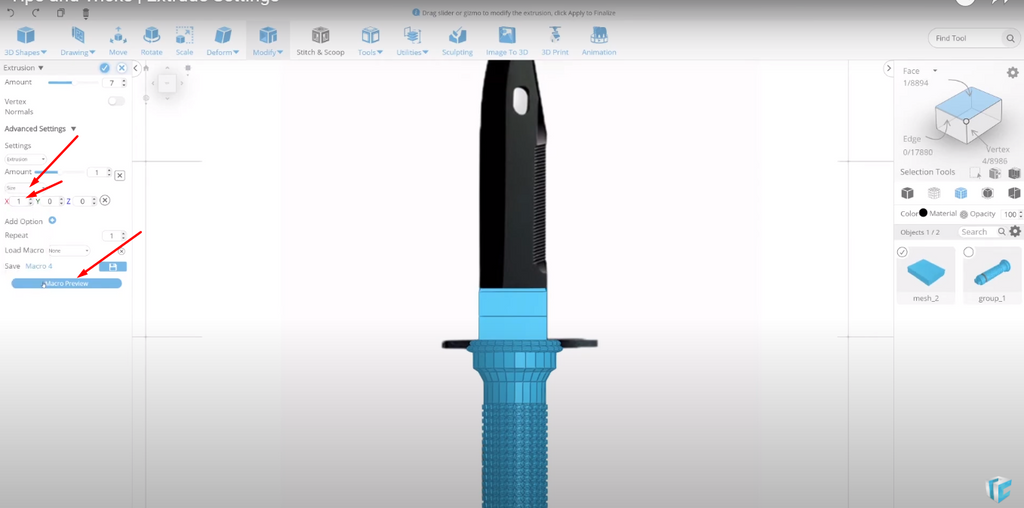

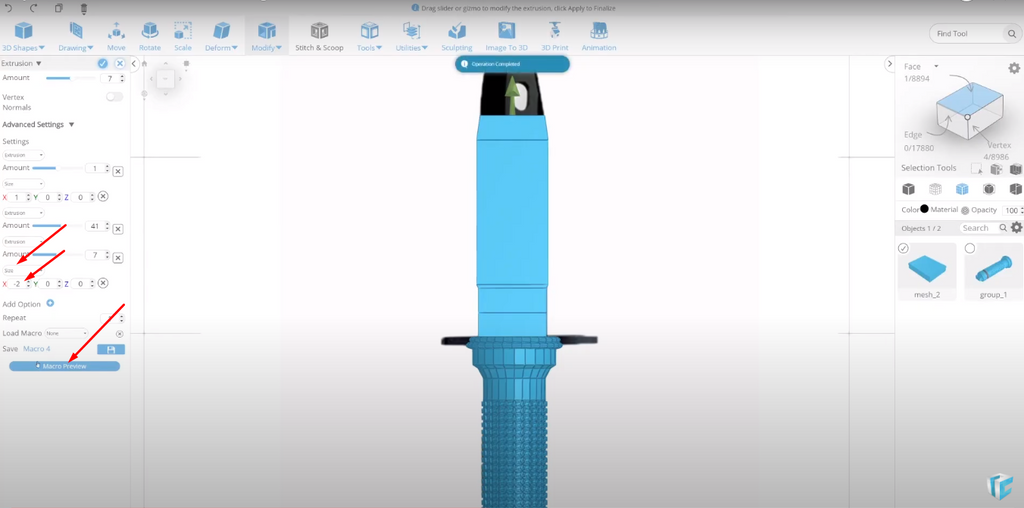

On the Size panel, set the X axis to 1. Then click the Macro Preview:

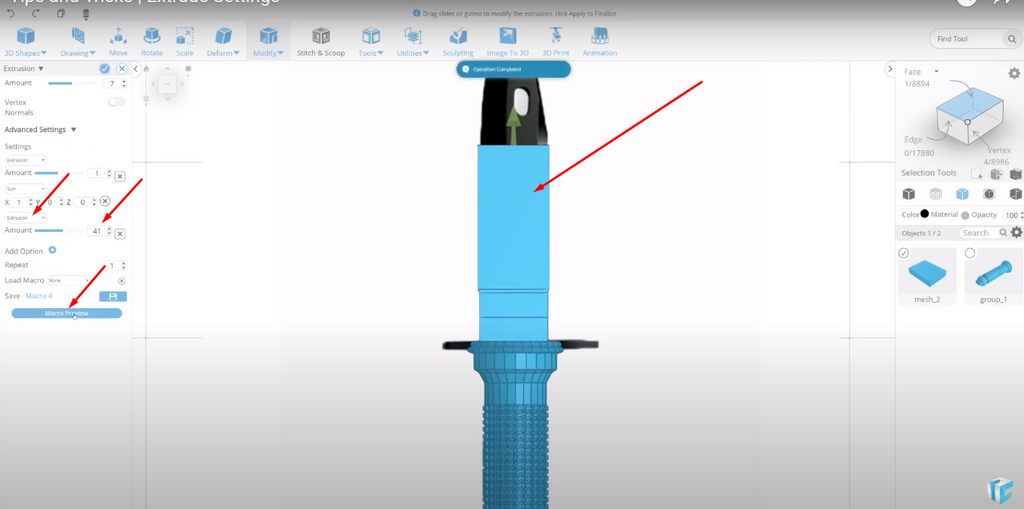

Then click Add Option and select Extrusion again. Set the Amount to 41 and click the Micro Preview:

Set the next Add Option to Extrusion and set the Amount to 7 and click on the Macro Preview:

Next Add Option setting is Size. Set the X axis to -2 and click the Macro Preview:

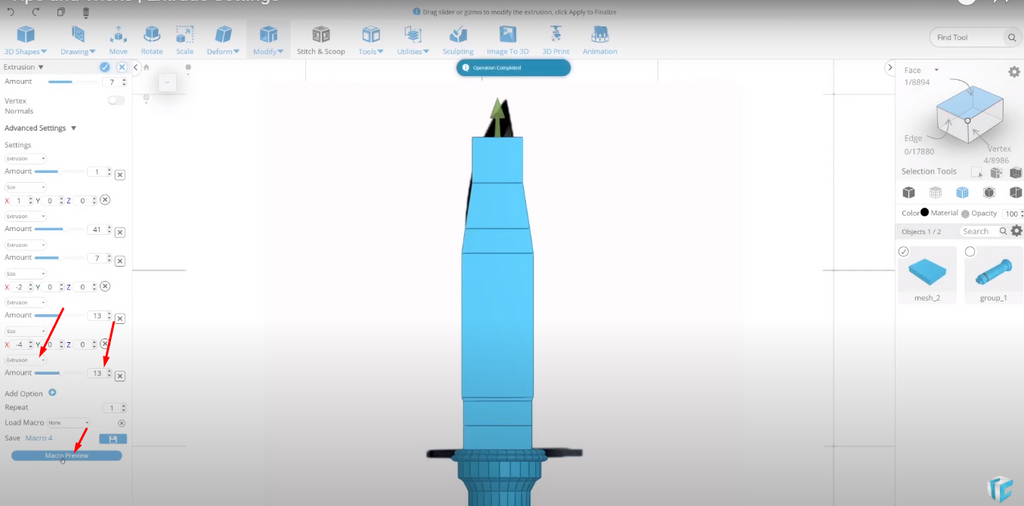

Next Add Option is Extrusion and set the amount to 13. You can see that the knife sheath is already forming:

The next Add Option setting is Size. Set the X axis to -4 and click the Macro Preview:

Set the Extrusion on the add option and set the amount to 13:

Next set the add option again to Size and set the X axis to -7:

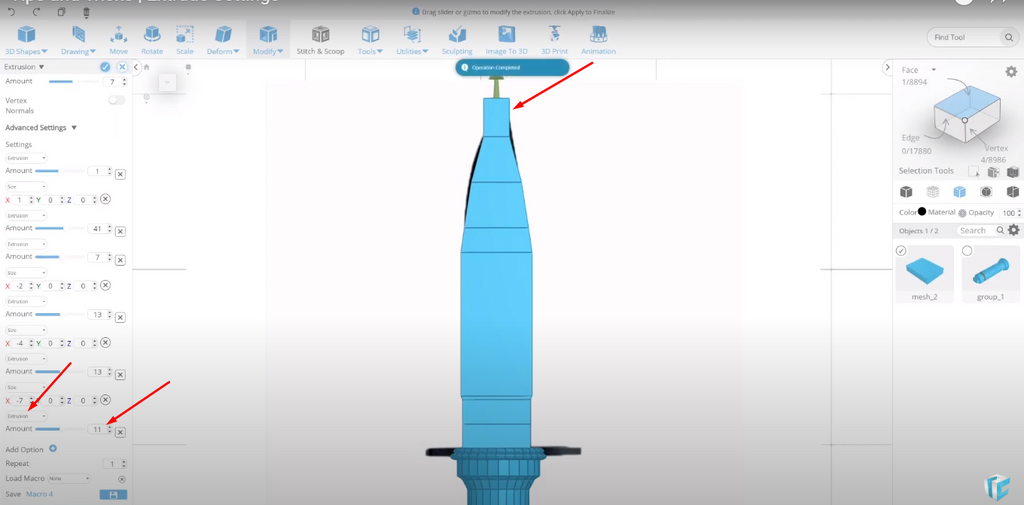

Then extrude the final part by setting Extrusion on the Add Option and set the Amount to 11:

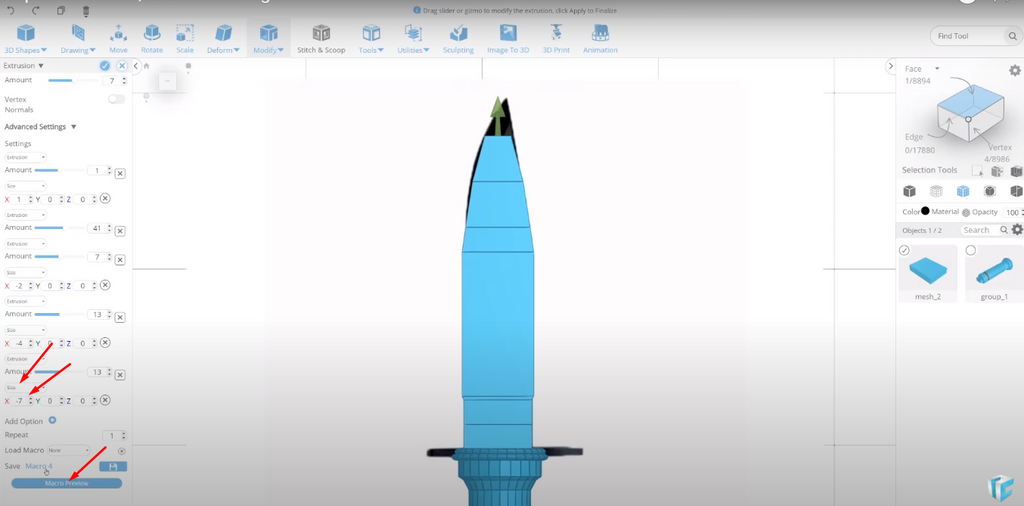

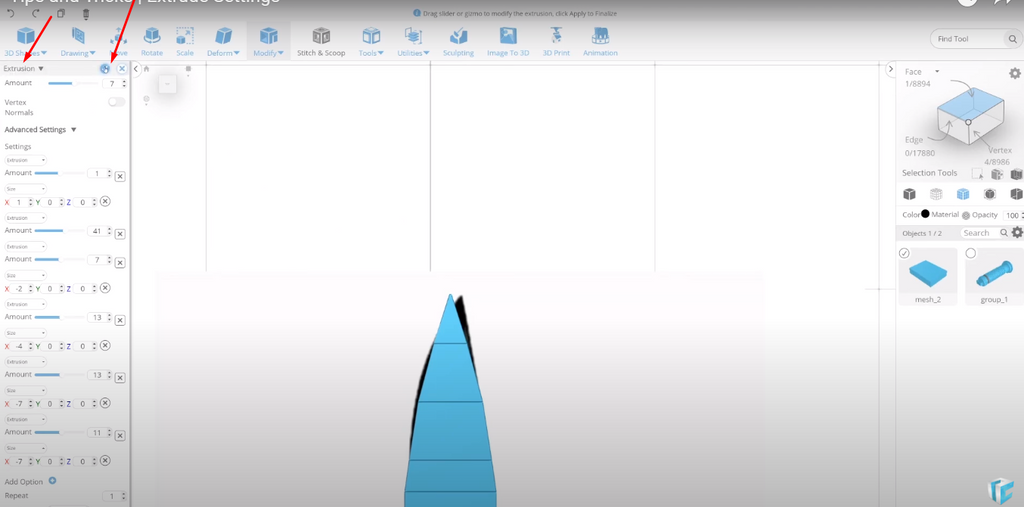

On the Size set the X axis to -7:

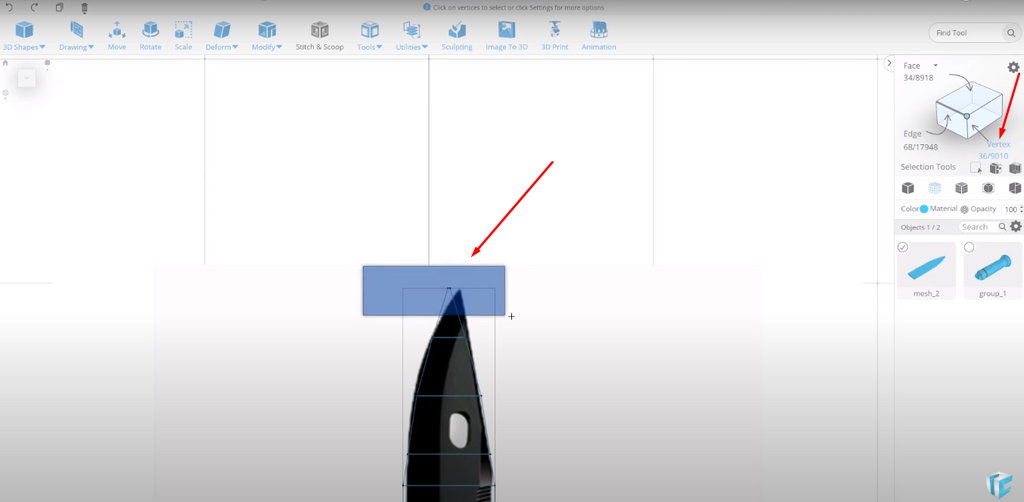

Click on the check mark to Finalize the Extrusion:

Switch to Wireframe mode. On the right panel, activate the Vertex Selection and select the vertices as shown below:

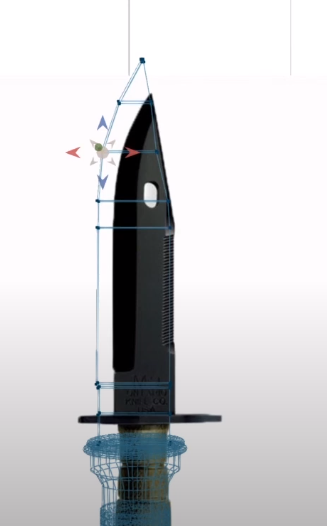

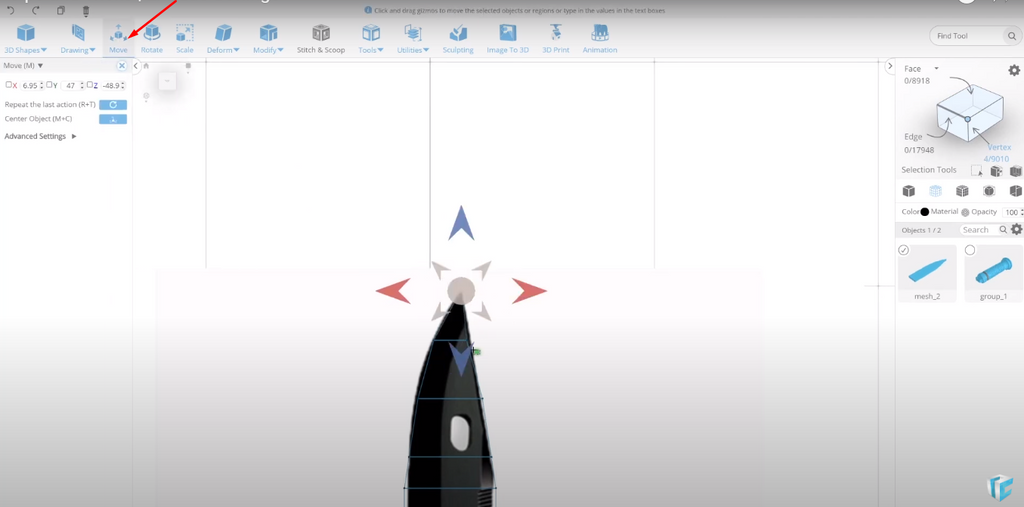

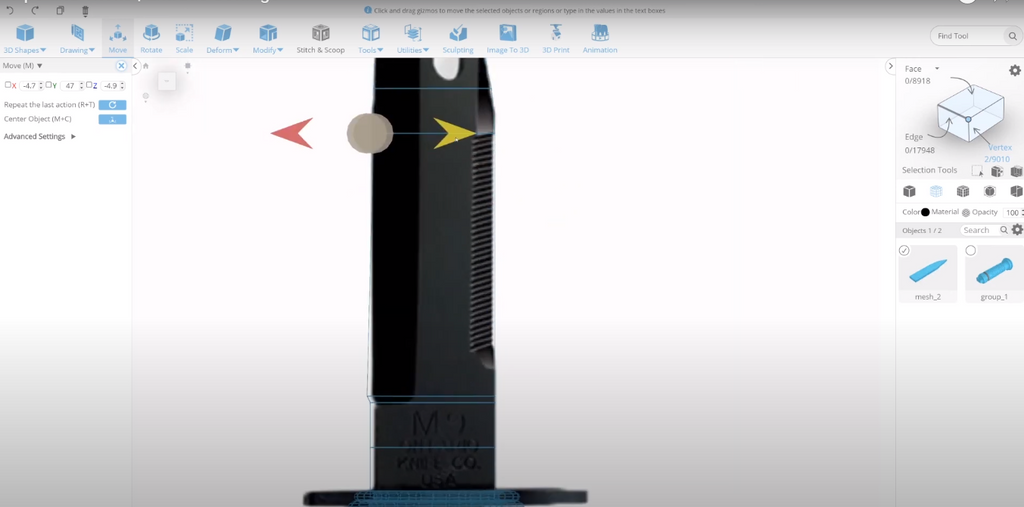

On the toolbar, click on the Move tool and use the Gizmos to move the vertices to fit the size of the knife:

Use the Move tool to move the vertices in a way that it forms a good shape of the knife to create a good sheath.

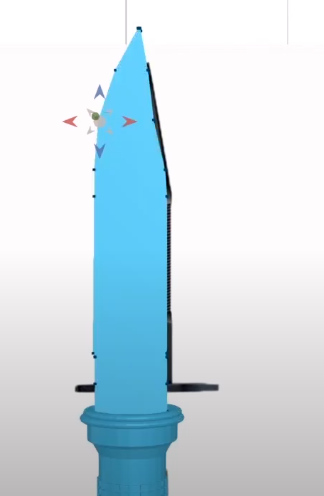

After being sure of the correct position of the vertices as shown below:

Then you can now set back the solid mode:

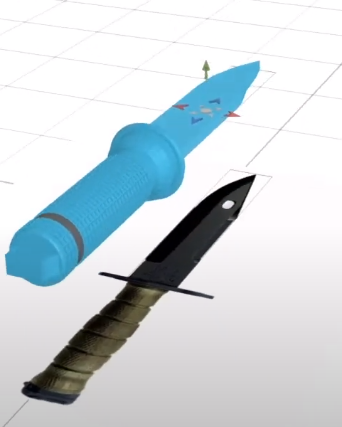

There you go the knife sheath is ready:

Designing the knife sheath using the Extrusion tool is easy and does not require prior experience. All you need is to familiarize yourself with the various Extrusion settings and options in SelfCAD.

Applications of Extrusion Tool

Computer-Aided Design (CAD) software's 3D extrude tool  is commonly used for the following purposes:

• Architecture: The extrude tool is frequently used in architectural design to create walls, columns, beams, and other structural parts. Architects can create 3D representations of buildings by extruding straightforward profiles, enabling improved visualization and evaluation of design aesthetics and spatial linkages.
• Product design: The extrude tool is crucial in product design for creating three-dimensional models of goods for customers, industrial equipment, and components. To create product prototypes, designers can extrude simple forms and add details like curves, grooves, and chamfers. This enables the design's form and functionality to be visualized and improved prior to manufacture.
• Engineering: To produce intricate components and pieces, engineers use the extrude tool. Engineers can create solid models of mechanical components like gears, brackets, or turbine blades by extruding 2D designs or profiles. The extrude tool makes it possible to construct complex geometries with holes, fillets, and other features that are essential to the functionality and performance of the manufactured products.
• Industrial Design: In industrial design, the extrude tool is used to create models and preliminary designs of industrial equipment, machinery, and tools. Extruding shapes allow designers to give their designs depth and volume, which enables a realistic representation of the finished result. This aids in evaluating assembly, ergonomics, and general design aesthetics.
• Digital art and Sculpting: The extrude tool can also be used in creative contexts like sculpting. Basic forms can be extruded by artists to produce elaborate sculptures or three-dimensional digital artwork. Artists can create distinctive and complicated forms by adjusting the extrusion parameters, which adds originality and aesthetic expression to their work.
• Jewelry Design: To produce elaborate and realistic 3D models of jewelry pieces, the extrude tool is frequently used in jewelry design. Designers can create elaborate and beautiful jewelry designs by extruding profiles to create a variety of components, such as bands, settings, or decorations.
• Quick manufacturing and prototyping: The extrude tool is essential for producing prototypes for such quick manufacturing techniques as 3D printing. Designers can create the appropriate 3D models by extruding shapes, and then use additive manufacturing technology to turn those models directly into tangible products. This makes it possible to swiftly develop and test designs prior to large-scale production.

Animation and Visual Effects: In the realm of animation and visual effects, the extrude tool is used to create 3D models of characters, objects, and environments. Animators and visual effects artists may create intricate and lifelike 3D elements for use in movies, video games, and other multimedia projects by extruding forms and adjusting settings.

---
