Flip Normals

Let's talk about the Flip Normals tool. In other applications, similar functionality is commonly referred to as Flip Normals, Reverse Normals, or Recalculate Normals. While the naming may vary, the function remains the same: it reverses the direction of a model's face normals, correcting the way surfaces are oriented.

In SelfCAD, the Flip Normals tool can be found in the Utilities section of the main Toolbar, below the divider. It allows you to reverse the vector direction of the entire object or just the selected faces to ensure they are facing outward. In practice, this enables users to fix shading issues, correct rendering errors, and most importantly, prepare models for 3D printing, where inverted normals can cause slicing problems or failed prints. After using the tool, a notification will indicate whether the normals were flipped or restored to correct orientation.

The Utilities category acts as a modeling First-Aid Kit, offering tools that help diagnose and fix structural issues rather than reshape geometry. Flip Normals plays an important role in maintaining clean and production-ready models. In this article, we'll explore how to use the Flip Normals tool effectively and ensure your models are properly oriented.

Select the object

The first step of using the majority of modeling tools is selecting the object on which you want to use it. You can select it by either left-clicking on it in the workspace or by selecting it in the Object Management section, in the right-side panel. The second option has an in-built search engine, which is extremely useful when you are working with multiple objects.

Flip

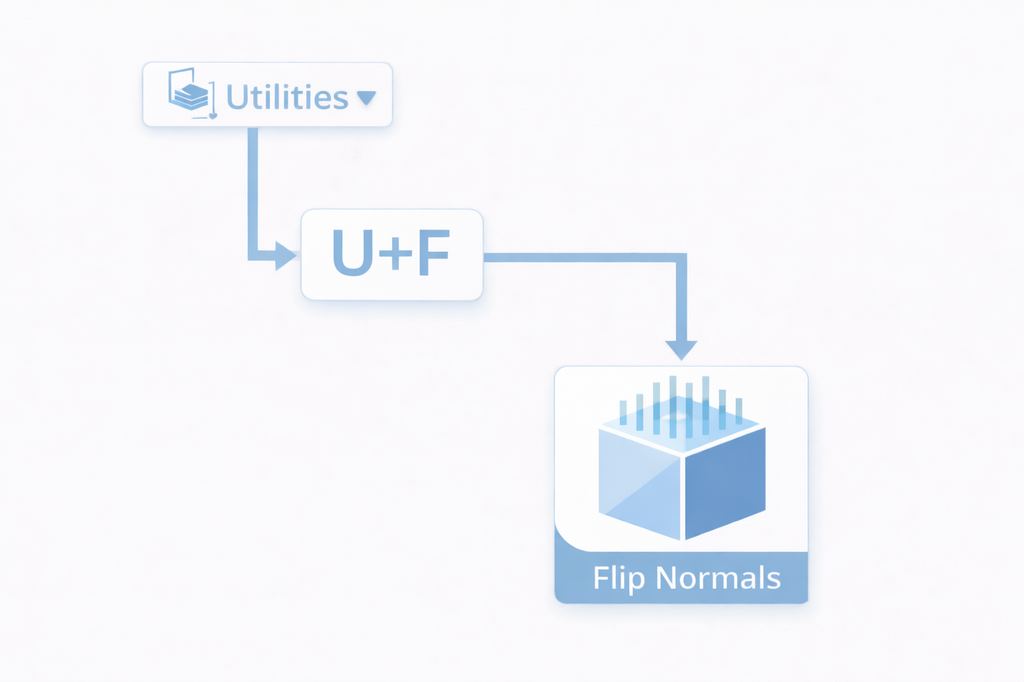

Once the object is selected, you can enable the Flip tool by choosing it from the Utilities drop-down list in the main Toolbar or use a shortcut by pressing the 'U+F' combination on your keyboard. There is no real customization when it comes to this tool, and the object will be Flipped right after activating the tool and, as mentioned in the introduction, you will see a notification, whether the normals were flipped or fixed.

Select a region

SelfCAD allows you to not only Flip objects themselves, but you can also Flip some of their regions. To do so, you need to select those regions first. In the Right Side Panel, you will find an Interactive Rectangle, where you can enter one of the following selection modes: Face and Polygon. Then, you can select the parts of the object that you want to Flip.

Flip a region

Flipping a region works exactly the same as snapping the object itself does. After selecting a region or regions that you want to Flip, simply activate the Flip Normals tool. As was the case before, you will see a notification whether the normals were flipped or fixed.

And that’s about it for the Flip Normals. After reading this article, you should know the basics of this tool and how to use it, and know about its different applications. Of course, the graphics shown here were just examples, and using this tool with different settings will give you slightly different effects, but its underlying principles will always stay the same.

That's all I have for you today. I wish you success in your future projects. See you, and stay tuned for more content to come!
